Product

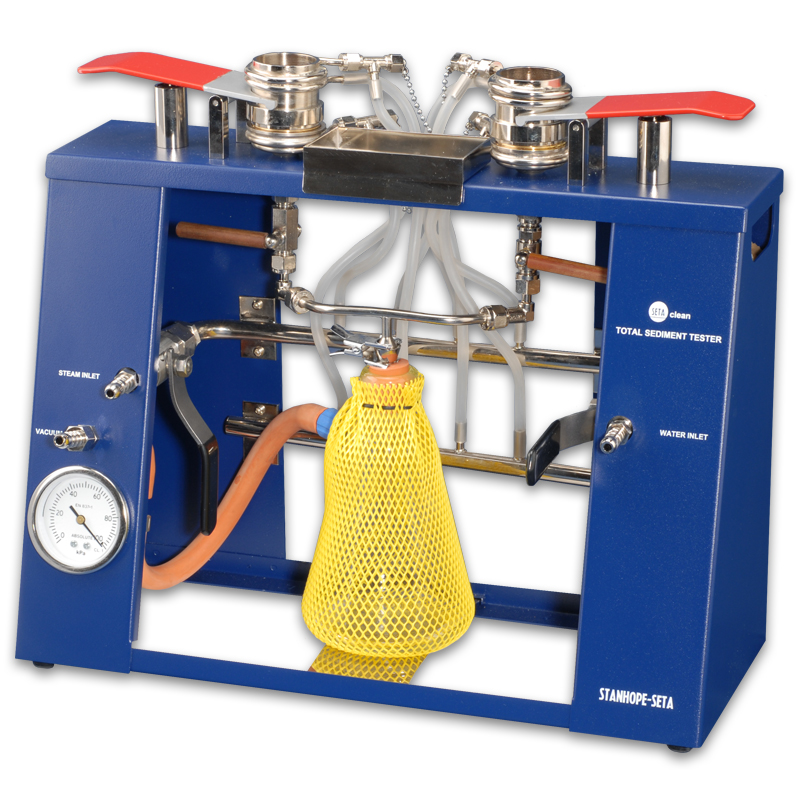

Setaclean Total Sediment Tester - 16120-2

Methods
ASTM D4870
IP 375
IP 390
BS ISO 10307-1
BS ISO 10307-2 & BS 2000-390

The Setaclean Total Sediment Tester is a compact bench-mounted unit for determining the insoluble material content of distillate and residual fuel oils.

Setaclean Total Sediment Tester - 16120-2

Features

  • Measures sediment up to 0.5% m/m
  • Sample viscosities up to 55 mm²/s at 100 °C
  • 10 g sample size
  • Two test stations

Information

Details

Consists of two filtration cells, heating (steam) and cooling (water) circuits, and a vacuum circuit with Buchner flask and gauge.

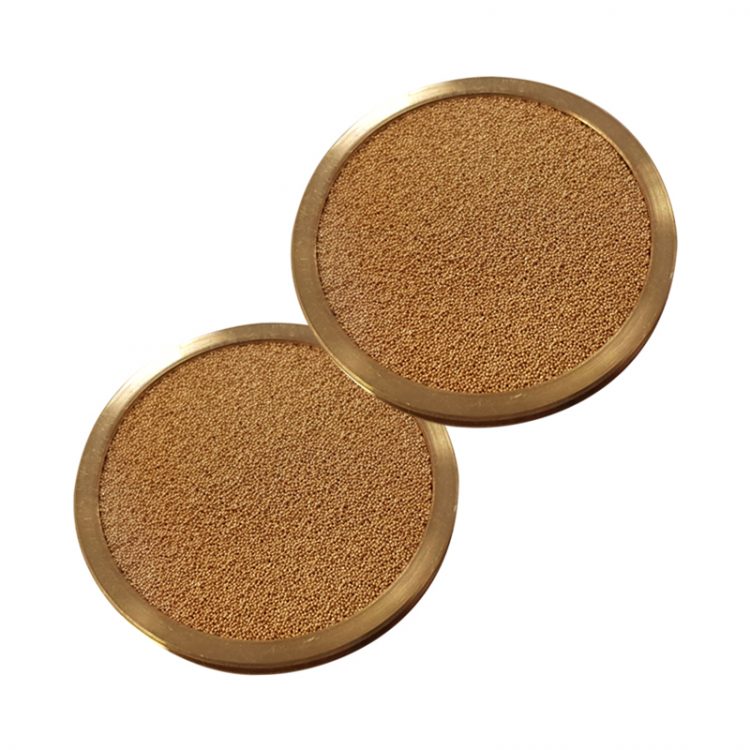

Each filtration cell comprises a steam heated/water cooled brass cup with a sintered brass disk to support the microfibre filters.

Temperature test points are fitted into the steam input lines, and a digital indicator and probe are available as an accessory.
Supplied with;
Buchner flask with safety cover
2 x filtration cells

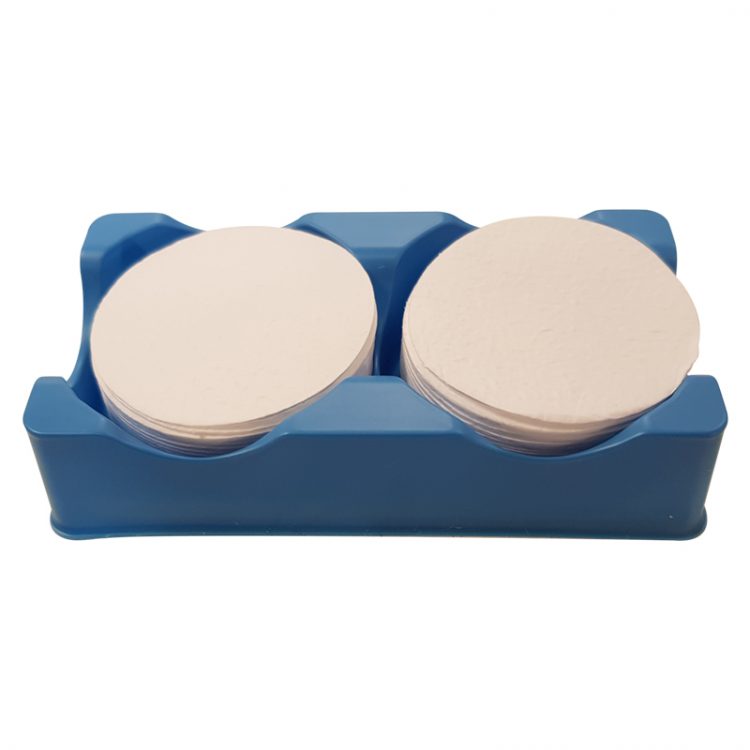

100 x filters
Instruction manual

Details

BS ISO 10307-1 Petroleum products. Total sediment in residual fuel Oils. Determination by hot filtration
IP 390 Petroleum products - Total sediment in residual fuel oils.
ASTM D4870 Standard Test Method for Determination of Total Sediment in Residual Fuels
IP 375 Petroleum products — Total sediment in residual fuel oils — Part 1: Determination by hot filtration
BS ISO 10307-2 & BS 2000-390 Total sediment in residual fuel oils. Determination using standard procedures for ageing.

Details

Test samples10 g
Waste flask capacity500 ml
Filters2 per cell 47 mm dia Whatman Type GF/A
ServicesSteam 100 °C Vacuum 40 kPa absolute pressure Cooling water - ambient temperature
Connections10 mm diameter riffled nozzles
Size (HxWxD) Weight40x47x18 cm
Weight8 kg
CCCN CodeTariff 90318080
