Seta Fuel Oil Ageing Bath - 16155-5

Methods
ASTM D4870
IP 390 Procedure A: ISO 10307

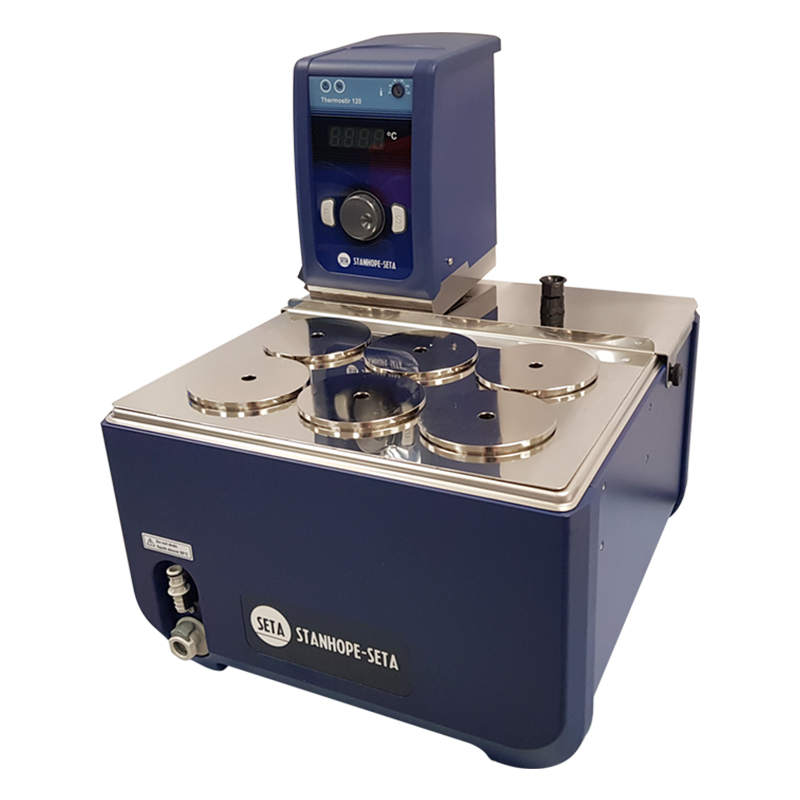

The 12 litre capacity bath is a stand-alone bench top instrument comprising 6 air wells and a thermostir unit. The thermostir unit includes a digital temperature controller, circulator, heater and LED display. On some models.

Note: The thermostir may also have a pump facility, however, it is not used in this application.

Seta Fuel Oil Ageing Bath - 16155-5

Features

  • Can perform three duplicate tests
  • Temperature range ambient +5 °C to 120 °C
  • Low liquid protection switch
  • Fault indication display and over temperature protection
  • Three temperature pre-sets

Additional Information

The unit is manufactured from plastic with stainless steel top plate and covers. The bath cover has six apertures for air wells. The glassware also has an aperture for mounting a thermometer or temperature probe. Adjacent to the bath cover is the bridge plate, which has provision for mounting the Thermostir unit.

Voltage110/120 V, 50/60 Hz 220/240 V, 50/60 Hz
Power1500 W (120 Vac) 1400 W (230 Vac)
Tank Size (HxWxD)21.5 cm x 36 cm x 33.2 cm
Thermostir Size (HxWxD)33.3 cm x 14.1 cm x 17.2 cm
Weight10 kg (tank empty)
CCCN CodeTariff 84198998

Methods

ASTM D4870
IP 390 Procedure A: ISO 10307
IP 390 Procedure A: ISO 10307 Total Sediment In Residual Fuel Oils and Distillate Blends by Hot Filtration
ASTM D4870 Standard Test Method for Determination of Total Sediment in Residual Fuels
