Steam Generator - 16130-3

Methods
ASTM D4870
IP 375
IP 390
BS ISO 10307-1
BS ISO 10307-2 & BS 2000-390

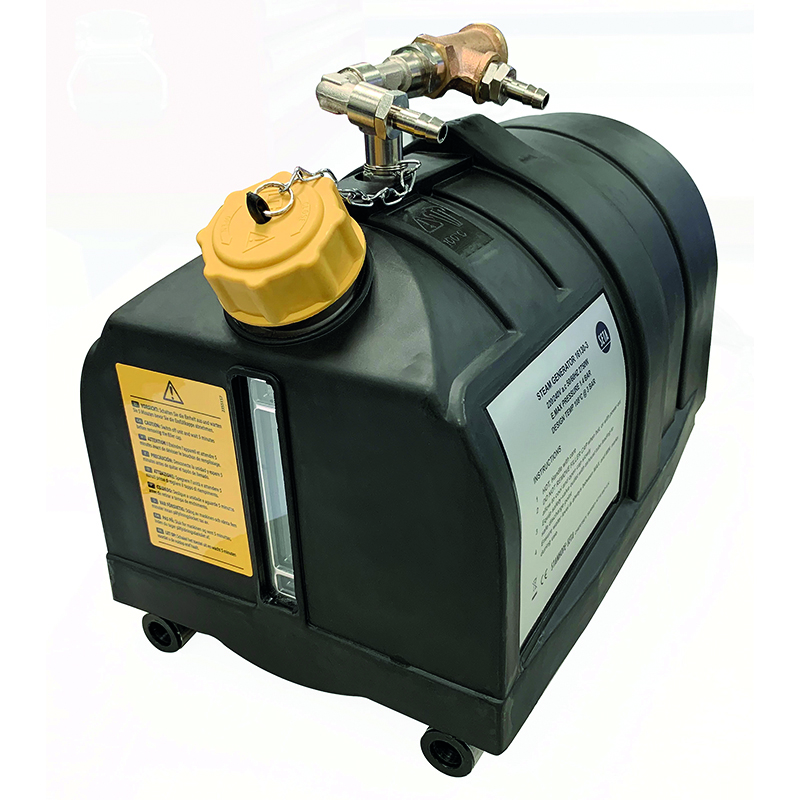

An electrically heated portable steam generator with a capacity of 7.5 litres (5.25 litres useable) with the output regulated to a maximum of 28.4 kPa (4 psi).

For use with the Setaclean Total Sediment Tester (16120-2).

Steam Generator - 16130-3

Features

  • Compact lightweight unit

Additional Information

The die cast aluminium water tank is fitted with a water level sight tube and is protected by a pressure relief valve. The tank is tested to 140 kPa (20 psi). Over-temperature protection is via a resettable cutout that operates at a nominal 132 °C and a thermal fuse that breaks at 184 °C.

Supplied with;
Mains lead
Instructions.

Certification: Pressure certificate included.

Tank Capacity7.5 litres (5.25 litres useable)
Pressure relief valve28.4 kPa gauge, 0.28 bar gauge, 4 psi gauge
Voltage220/240 V 50/60 Hz
Size (HxWxD)30 cm x 25 cm x 47 cm
Weight6 kg
CCCN CodeTariff 84021200

Methods

ASTM D4870
IP 375
IP 390
BS ISO 10307-1
BS ISO 10307-2 & BS 2000-390
BS ISO 10307-1 Petroleum products. Total sediment in residual fuel Oils. Determination by hot filtration
IP 390 Petroleum products - Total sediment in residual fuel oils.
ASTM D4870 Standard Test Method for Determination of Total Sediment in Residual Fuels
IP 375 Petroleum products — Total sediment in residual fuel oils — Part 1: Determination by hot filtration
BS ISO 10307-2 & BS 2000-390 Total sediment in residual fuel oils. Determination using standard procedures for ageing.
