Setaflash Series 3e Flash Point Tester - 30020-0

Methods
ASTM D3278
ASTM D3828
ASTM D7236
ASTM D8174
IP 523
IP 524
IP 534
CLP Regulations EC No 1272/2008
EPA 1020 B
ISO 3679
ISO 3680 (Obs)

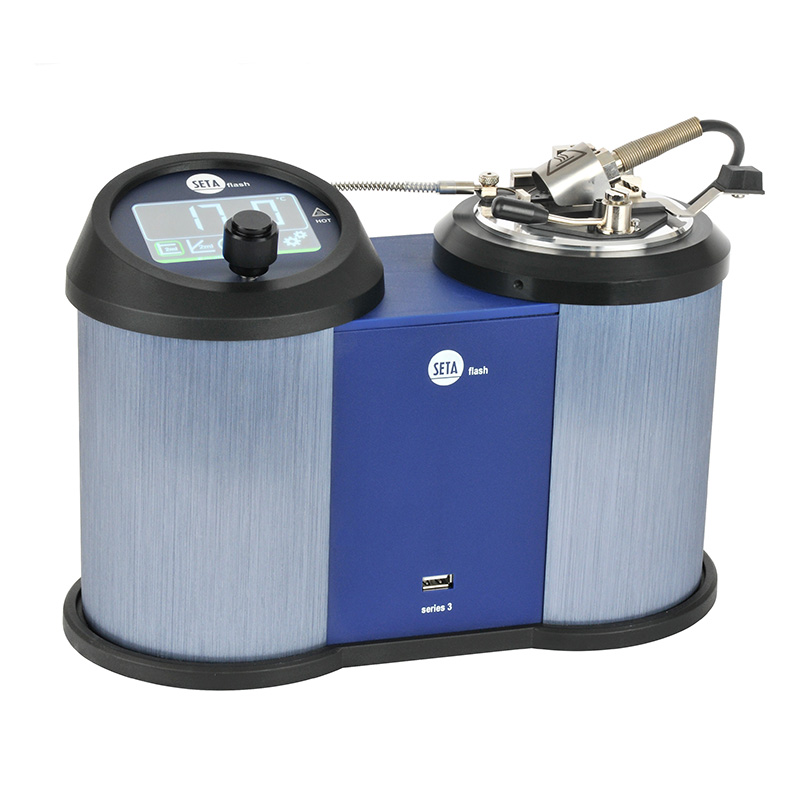

The Setaflash Series 3e closed cup flash point tester is a compact, bench top/portable instrument used to carry out ‘flash/no flash’ tests and determine flash point temperatures.

The Series 3e can perform tests at temperatures ranging from 0 to 300 °C (with the 13870-0 Seta Cooling Module allowing temperatures below ambient).

Operated by a touchscreen, icons guide you through the simple test procedure, with a test taking less than 2 minutes with just 2 or 4 ml of sample required. Up to 10,000 test results can be saved in the instruments internal memory which can be saved and transferred via USB port for data analysis.

Learn more about flash point testing and which instrument you should be using >

Why flash point autosamplers do not comply with flash point test methods >

Setaflash Series 3e Flash Point Tester - 30020-0

Features

  • Electric ignition
  • Ambient to 300 °C
  • Small sample size
  • Under 2 minute test
  • Simple operation
  • Compact, rugged, portable design
  • Suitable for unknown samples using ramp mode
  • Automated flash detection
  • Automatic barometric pressure correction
  • Colour touchscreen
  • USB port and result storage

Additional Information

Ease of use:
All functions on the Series 3 including test parameters, instrument status and test results are accessed via the touchscreen display and push button. An audible prompt sounds when a flash is achieved and an automatic flash detector enhances repeatability.

Calibration and verification:
Calibration of the Series 3 can be performed in the field, eliminating the costs and time associated with sending the instrument to a service centre.

Service and maintenance:
The rugged design ensures minimal operational maintenance in needed.

Supplied with: 2 ml syringe, ignitor, Allen key, mains lead, quick start guide and instruction manual
Temperature rangeAmbient to 300 °C
Temperature ramp modeAutomatic or custom settings (ramp rate: up to 6 °C/min and beep rate: up to 5 °C/B intervals) Extended test range, 100 °C from start temperature
Temperature selection°C or °F
User interfaceColour LCD display - touch screen sensitive
NavigationControl knob (rotational and push-down)
Data storage1GB (internal memory and integrated USB port)
Sample size2 ml or 4 ml
Pressure correctionAutomatic pressure correction
Voltage110 to 250 V a.c~50/60 Hz (universal)
Power200 W (Max.)
Size (HxWxD)19.5 cm x 29.5 cm x 14 cm
Weight3 kg
CCCN CodeTariff 90268020

Methods

ASTM D3278
ASTM D3828
ASTM D7236
ASTM D8174
IP 523
IP 524
IP 534
CLP Regulations EC No 1272/2008
EPA 1020 B
ISO 3679
ISO 3680 (Obs)
ASTM D3278 Standard Test Methods for Flash Point of Liquids by Small Scale Closed-Cup Apparatus - paints, enamels, lacquers, varnishes, and related products
ISO 3680 (Obs) Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method)
ISO 3679 Determination of flash point. Rapid equilibrium closed cup method
ASTM D3828 Standard Test Methods for Flash Point by Small Scale Closed Tester
IP 523 Determination of flash point. Rapid equilibrium closed cup method
IP 524 Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method)
ASTM D7236 Flash Point by Small Scale Closed Cup Ramp Method
IP 534 Flash Point by Small Scale Closed Cup Ramp Method
CLP Regulations EC No 1272/2008 European Regulation (EC) No 1272/2008 on classification, labelling and packaging of substances and mixtures
ASTM D8174 Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Small-Scale Closed Cup Tester
EPA 1020 B Standard test methods for flash point by Setaflash (small-scale) Closed-Cup apparatus
