Seta Oil Test Centrifuge – 6 place - 90100-0

Methods
ASTM D91
ASTM D893
ASTM D1290
ASTM D1796
ASTM D2273
ASTM D2709
ASTM D2711
ASTM D4007
ISO 3734
ISO 9030

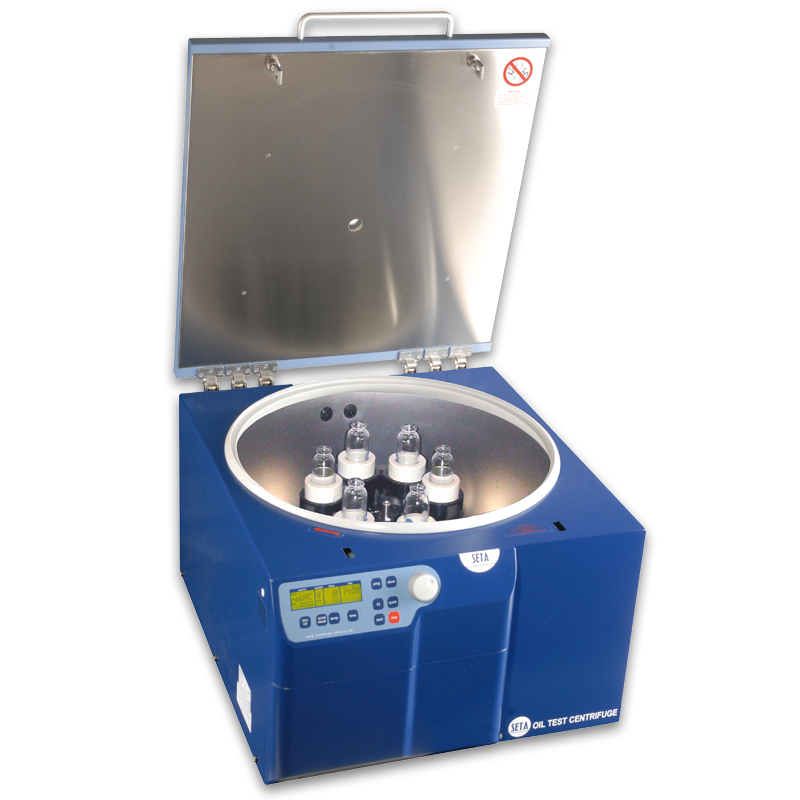

The Seta Oil Test Centrifuge is a heated chamber centrifuge used to determine water and sediment in oils. The large diameter chamber, with six place rotor and cushioned adaptors allows the use of 6 and 8 inch conical, pear-shaped, trace sediment and 12.5 ml tubes.

The swing out rotor ensures that samples are held near vertical when at rest allowing precise measurement of sediment. The centrifuge features a hinged lid that opens to the fully upright position to allow easy loading and unloading of tubes between tests.

Speed, temperature and timing are microprocessor controlled. Run parameters are entered via a liquid proof ‘touch panel’ and digital display.

Click here for 4-place Centrifuge

Seta Oil Test Centrifuge – 6 place - 90100-0

Features

  • 6 place swing out rotor
  • Static, near vertical bucket positioning
  • Specifically designed for testing oils
  • Heated chamber, ambient to 80 °C
  • Pre-heat facility to ensure bowl is at test temperature prior to test
  • Universal buckets for 12.5 ml, 6 and 8 inch glassware
  • Microprocessor control with 99 memories
  • Optional trolley

Additional Information

Precise heating for accurate results
Isothermal heaters fitted internally to the centrifuge chamber give precise temperature control to within +/-1 °C.

Fast and easy operation
9 programme memories allow a user to configure the instrument to automatically operate to the specified test parameters, saving time, easing operation and assisting repeatability. A 'Quick Run' mode allows short runs of up to 99 seconds.

Safety features
A motor driven lid latch with a safety interlock prevents the centrifuge operation while the lid is unlocked. Imbalance detection and over-temperature protections protects the motor and chamber from damage.

Setafuge Hazard Reduction System
The optional Setafuge Hazard Reduction System (90010-0) can be fitted into the centrifuge to extract vapours from the chamber and significantly reduce vapour hazards.

Supplied with;
Rotor
Buckets and cushions
Maximum Relative Centrifugal Force (RCF)2210 g
Maximum Rotational Speed3000 rpm
Temperature RangeAmbient +5 °C in the range of 20 to 80 °C (1 °C steps)
Timer Range10 sec to 100 hours or continuous operation
ControlMicroprocessor with 99 memory capacity
Capacity6 Samples
Voltage Range230 Vac, 50/60 Hz (Optional transformer for 110/120 V)
Power950 W
Size (HxWxD)410 × 560 × 640 mm
Weight72.5 kg
CCCN CodeTariff 84211920

Methods

ASTM D91
ASTM D893
ASTM D1290
ASTM D1796
ASTM D2273
ASTM D2709
ASTM D2711
ASTM D4007
ISO 3734
ISO 9030
ASTM D91 Standard test method for precipitation number of lubricating oils
ASTM D893 Standard test method for insolubles in Used Lubricating Oils
ASTM D1290 Standard test method for sediment in water-emulsion polishes by centrifuge
ASTM D1796 Standard Test Method for Water and Sediment in Fuel Oils by the Centrifuge Method (Laboratory Procedure)
ASTM D2273 Standard Test Method for Trace Sediment in Lubricating Oils
ASTM D2709 Water and Sediment in Middle Distillate Fuels by Centrifuge
ASTM D2711 Standard Test Method for Demulsibility Characteristics of Lubricating Oils
ASTM D4007 Water and Sediment in Crude Oil by the Centrifuge Method (Laboratory Procedure)
ISO 3734 Petroleum products - Determination of water and sediment in residual fuel oils - Centrifuge methods
ISO 9030 The Oil Test Centrifuge is a microprocessor controlled, programmable, heating centrifuge that meets the above standards
