chevron_rightSetaflash Series 8 Flash Point Tester with Gas Ignitor – High Temperature - 82050-2
Methods
ASTM D1655
ASTM D3278
ASTM D3828
ASTM D7236
ASTM D8174
ASTM E502
IP 523
IP 534
BS EN ISO 3679 & BS 2000-523
CLP Regulations EC No 1272/2008
ISO 3679
ISO 3680 (Obs)

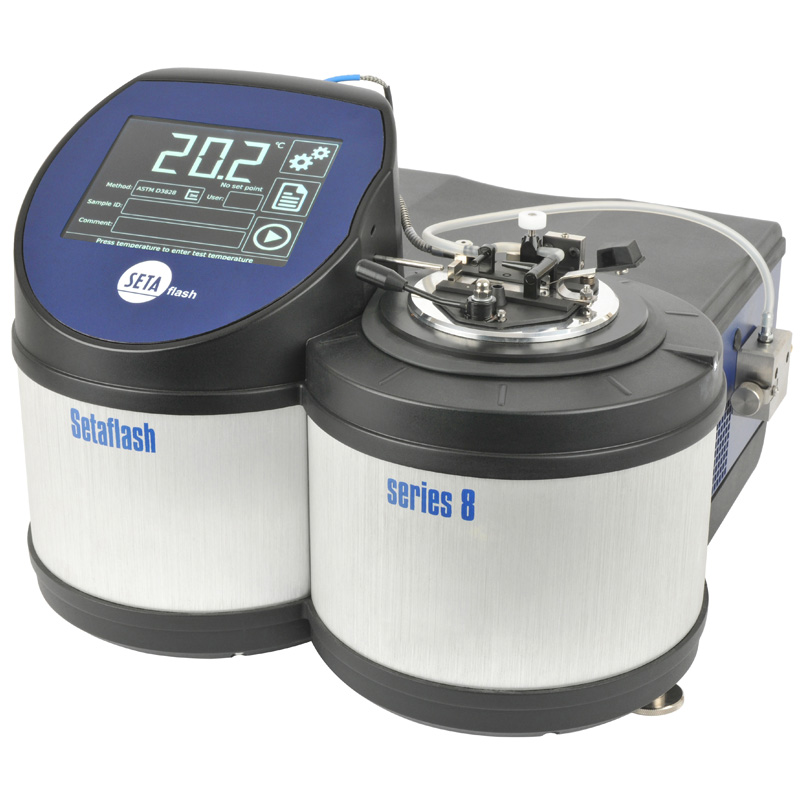

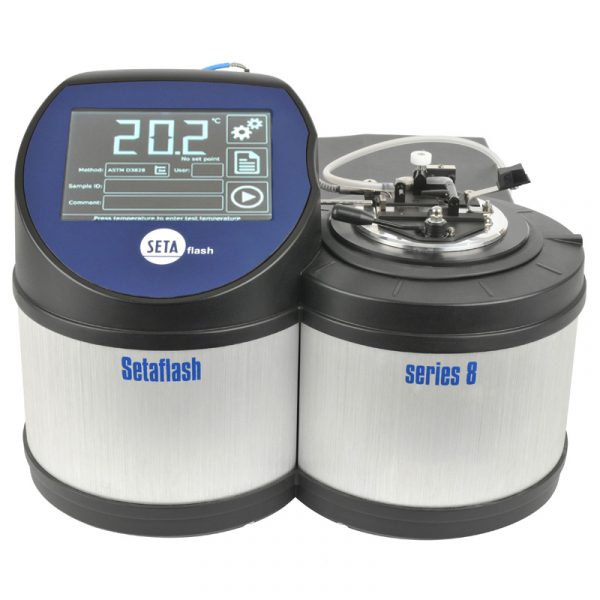

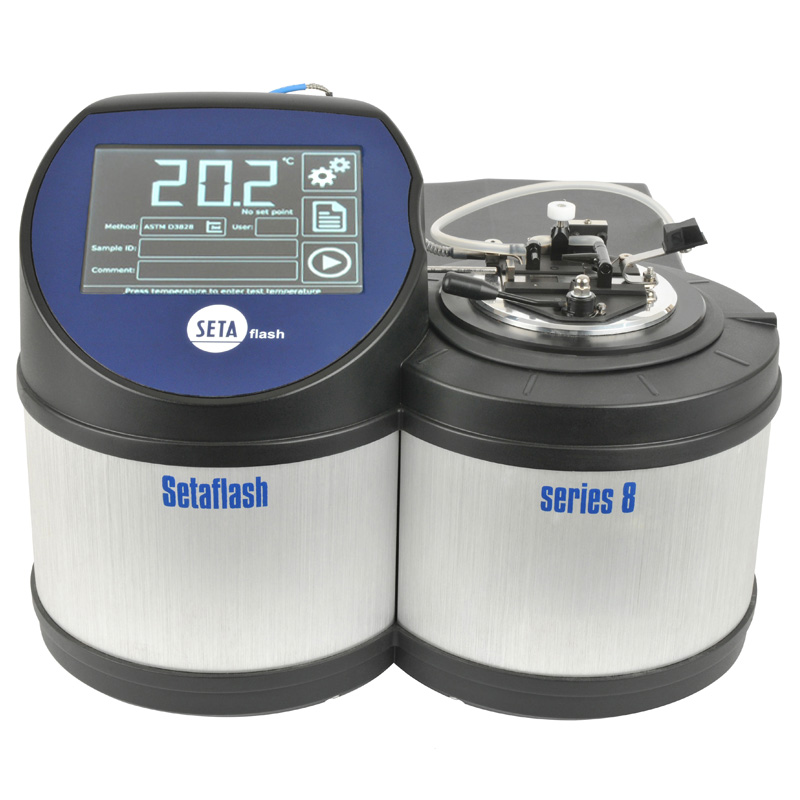

The Setaflash Series 8 High Temperature, closed cup flash point tester provides fast and reliable flash point results with a wide temperature range of 5 to 300 °C.
With the Series 8, a test takes less than 2 minutes with just a 2 or 4 ml sample size. A simple user interface with colour digital display and touchscreen icons guides you through the straightforward testing process. For easy record keeping the instrument stores 100,000 test results which can be saved and transferred via a USB port.
Designed for precise and accurate tests, barometric pressure is measured by an internal barometer and correction is automatically applied to the test result. Unknown samples can be tested using ramp mode.
Learn more about flash point testing and which instrument you should be using >
Why flash point autosamplers do not comply with flash point test methods >
Setaflash Series 8 Flash Point Tester with Gas Ignitor – High Temperature - 82050-2
Features
- Simple test procedure
- Compact, rugged design
- Gas ignition
- Automated flash detection
- Ramp mode for unknown samples
- Automatic barometric pressure correction
- Fire detection (alarm and relay)
- USB port and result storage
Additional Information
Ease of use:

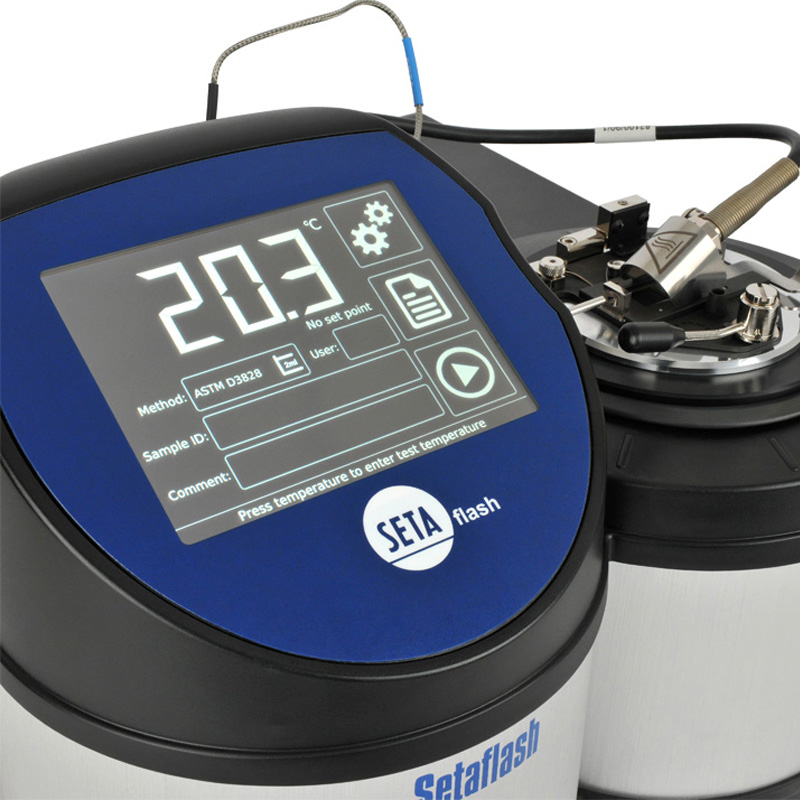

All functions on the Series 8 including test parameters, instrument status and test results are accessed via the touchscreen display. An audible prompt sounds when a flash is achieved and an automatic flash detector enhances repeatability.
Safety:
The instrument incorporates an over-temperature cutout that cuts the power to the heater if the cup temperature exceeds 320 °C. A fire sensor immediately stops the test and cools the sample cup if a fire is detected.
Calibration and verification:
Calibration of the Series 8 can be performed in the field, eliminating the costs and time associated with sending the instrument to a service centre.
Service and maintenance:
The rugged design ensures minimal operational maintenance is needed.
Supplied with: 2 ml syringe, 99878-3 CRM, Allen keys, mains lead and instruction manual.
All functions on the Series 8 including test parameters, instrument status and test results are accessed via the touchscreen display. An audible prompt sounds when a flash is achieved and an automatic flash detector enhances repeatability.
Safety:
The instrument incorporates an over-temperature cutout that cuts the power to the heater if the cup temperature exceeds 320 °C. A fire sensor immediately stops the test and cools the sample cup if a fire is detected.
Calibration and verification:
Calibration of the Series 8 can be performed in the field, eliminating the costs and time associated with sending the instrument to a service centre.
Service and maintenance:
The rugged design ensures minimal operational maintenance is needed.
Supplied with: 2 ml syringe, 99878-3 CRM, Allen keys, mains lead and instruction manual.
| Temperature range | Ambient +5 to 300 °C |
|---|---|
| Sample size | 2 or 4 ml according to method |
| Ignitor | Gas |
| Test duration, rapid equilibrium | 1 minute below 100 °C, 2 minutes above 100 °C, FAME 1 minute or user defined 1 to 99 minutes |
| Test duration, ramp mode | Typically 7 minutes |
| Heating/cooling method | Ceramic Pad, Forced Air (post-test cooldown) |
| Sample cup material | Aluminium |
| Voltage | 100 to 240 V, 50/60 Hz Auto-sensing |
| Power | 320 W |
| Size (HxWxD) | 30 cm x 34 cm x 38 cm |
| Weight | 8 kg |
| CCCN Code | Tariff 90268020 |
Industries
Methods
ASTM D1655
ASTM D3278
ASTM D3828
ASTM D7236
ASTM D8174
ASTM E502
IP 523
IP 534
BS EN ISO 3679 & BS 2000-523
CLP Regulations EC No 1272/2008
ISO 3679
ISO 3680 (Obs)
| ASTM D3278 | Standard Test Methods for Flash Point of Liquids by Small Scale Closed-Cup Apparatus - paints, enamels, lacquers, varnishes, and related products |
|---|---|
| ISO 3680 (Obs) | Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method) |
| ASTM E502 | Standard Test Method for Selection and Use of ASTM Standards for the Determination of Flash Point of Chemicals by Closed Cup Methods |
| ISO 3679 | Determination of flash point. Rapid equilibrium closed cup method |
| ASTM D3828 | Standard Test Methods for Flash Point by Small Scale Closed Tester |
| IP 523 | Determination of flash point. Rapid equilibrium closed cup method |
| ASTM D7236 | Flash Point by Small Scale Closed Cup Ramp Method |
| IP 534 | Flash Point by Small Scale Closed Cup Ramp Method |
| ASTM D1655 | Standard Specification for Aviation Turbine Fuels |
| CLP Regulations EC No 1272/2008 | European Regulation (EC) No 1272/2008 on classification, labelling and packaging of substances and mixtures |
| BS EN ISO 3679 & BS 2000-523 | Determination of flash no-flash and flash point. Rapid equilibrium closed cup method. |
| ASTM D8174 | Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Small-Scale Closed Cup Tester |
