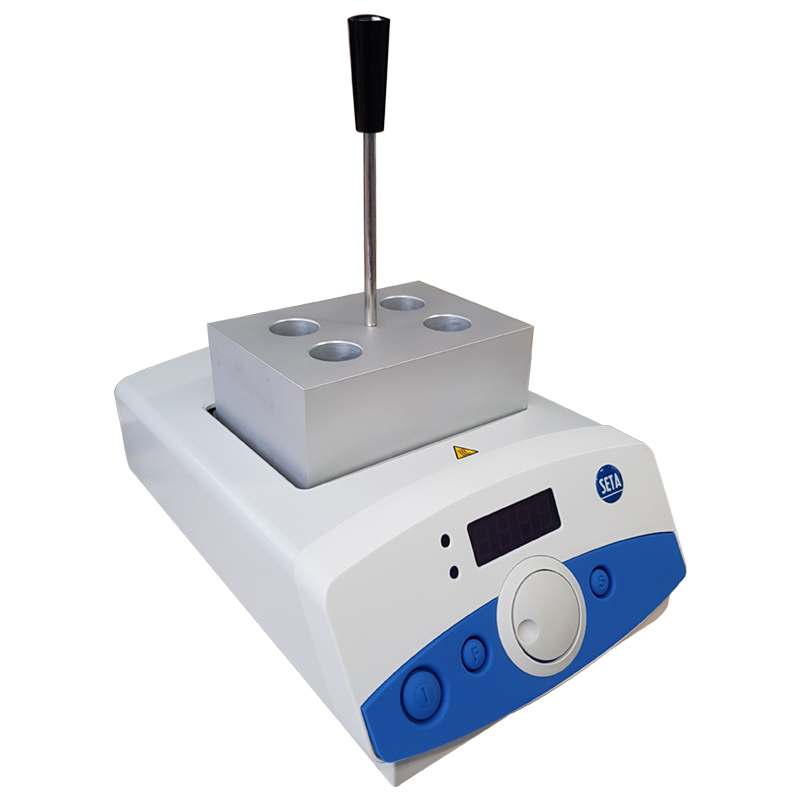

Seta Copper Corrosion Block Bath - 11308-0
Methods
ASTM D130
ASTM D4814
IP 154
BS EN ISO 2160 & BS 2000-154 & ISO 2160
A precision, processor controlled, block heater bath. Supplied with four test wells and designed to take copper corrosion test tubes. The heater has a temperature range of ambient to 200 °C.
The heater is equipped with a 1 to 999 minute countdown timer with buzzer, a temperature deviation alarm that you can set from 0.5 to 10 °C to able deviation and a delay start stop feature that allows the heater to be turned on or off after a predetermined time interval.
You can calibrate the heater over a wide temperature range.
Seta Copper Corrosion Block Bath - 11308-0
Features
- Dry heating for up to four test samples
- Accommodates four 25 mm OD test tubes
- Rapid heat up time
- ±0.1 °C accuracy at 150 °C
- Over temperature cut off
- Fault warning Indicator
- Function timer for delayed start / stop (1 min - 72 hours)
Additional Information
Supplied with;
Block
Block extractor tool
Mains lead
Instruction manual
Temperature Range | Ambient to 200 °C |
---|---|
Temperature Stability | ±0.1 °C |
No of Test Stations | Four |
Heater Power | 3 kW |
Voltage | 110/120 V, 50/60 Hz or 220/240 V, 50/60 Hz |
Size (HxWxD) | 12 cm x 20 cm x 28 cm |
Weight | 15 kg (Including block) |
Timer Range | 1 to 999 mins |
CCCN Code | Tariff 84198998 |
Methods
ASTM D130
ASTM D4814
IP 154
BS EN ISO 2160 & BS 2000-154 & ISO 2160
ASTM D4814 | General Specification for Automotive Spark Ignition Engine Fuels |
---|---|
BS EN ISO 2160 & BS 2000-154 & ISO 2160 | Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test |
IP 154 | Corrosiveness to Copper - Copper Strip Test |
ASTM D130 | Standard Test for Corrosiveness to Copper from Petroleum Products by Copper Strip Test |
