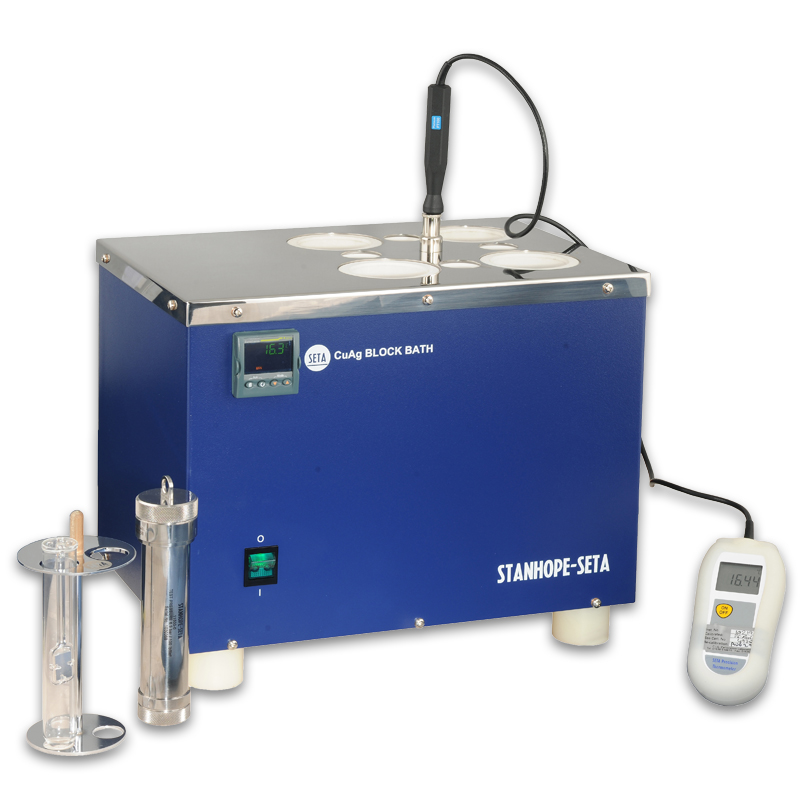

Seta Copper Silver Block Bath - 11310-0

Methods
ASTM D130
ASTM D7667

The solid block bath is specifically designed for measuring thin silver strip corrosion to ASTM D7667 and copper corrosion to ASTM D130.

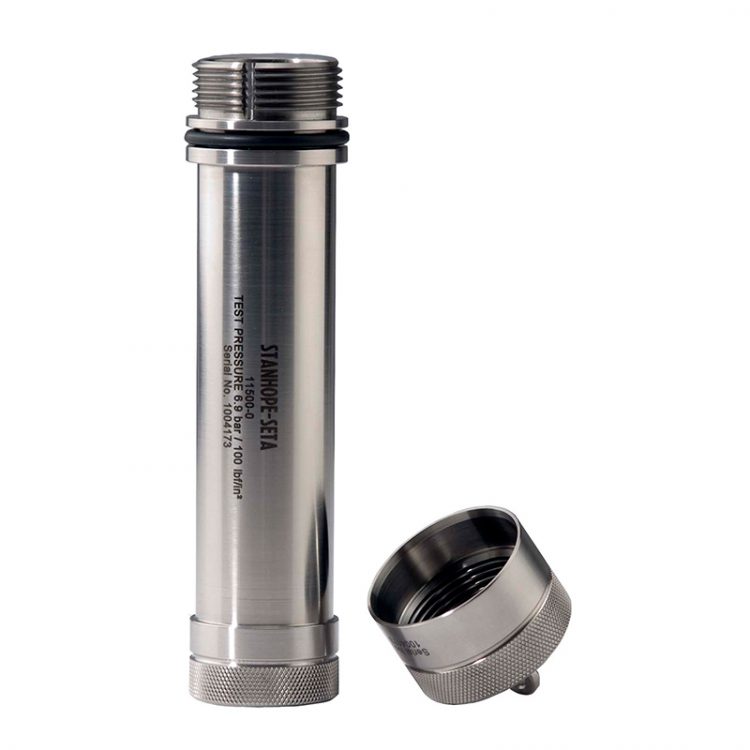

The bath features four test wells to accommodate Corrosion Pressure Vessels (11500-0) and four test tube pre-heating wells for 25 mm diameter x 150 mm Test Tubes (11590-0).

The bath incorporates a centre hole in the block with a protruding aperture on the top cover for mounting a thermometer or digital thermometer probe which can be used to verify the test block bath temperature. The bath is capable of achieving a temperature stability of better than ±1 °C at temperatures between 20 and 150 °C as specified in ASTM D7667 and ASTM D130 test methods.

Learn more about corrosion testing >

Seta Copper Silver Block Bath - 11310-0

Features

  • Dry heating for up to four test samples
  • Accommodates four 25 x 150 mm test tubes
  • Operator selected test set point temperature
  • Stability ±0.1 °C

Additional Information

Machined from a solid aluminium block and heated by four high power silicon heating pads on the sides of the block. An integral digital temperature controller allows the operator to select a test setpoint temperature in the range of 20 to 150 °C.

The bath is fitted with an over-temperature cut-out switch that switches the power off if the measured temperature exceeds the factory set (default) cut-out temperature of 165 °C.
Supplied with: Mains lead and instruction manual.

Temperature Range20 to 150 °C
Temperature Stability±0.1 °C
No of Test Stations4
Voltage220/240 V 50/60 Hz
Size (HxWxD)31 x 37 x 26 cm
Weight31 kg
Power2 kW
CCCN CodeTariff 84198998

Methods

ASTM D130
ASTM D7667
ASTM D130 Standard Test for Corrosiveness to Copper from Petroleum Products by Copper Strip Test
ASTM D7667 Corrosiveness to Silver by Automotive Spark-Ignition Engine Fuel—Thin Silver Strip Method
