Salt in Crude Analyser - 99700-6

ASTM D3230
IP 265

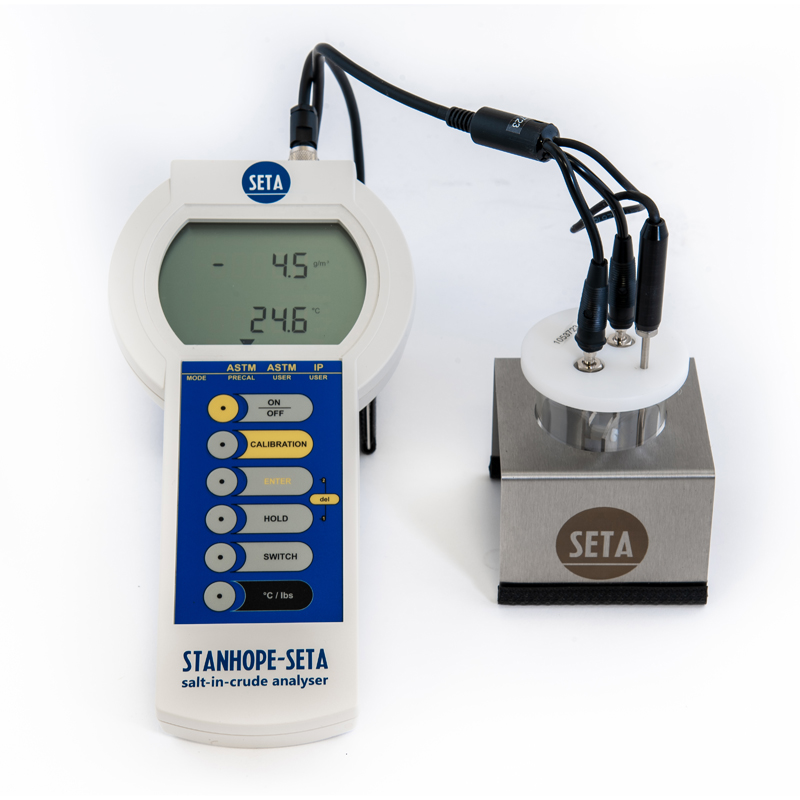

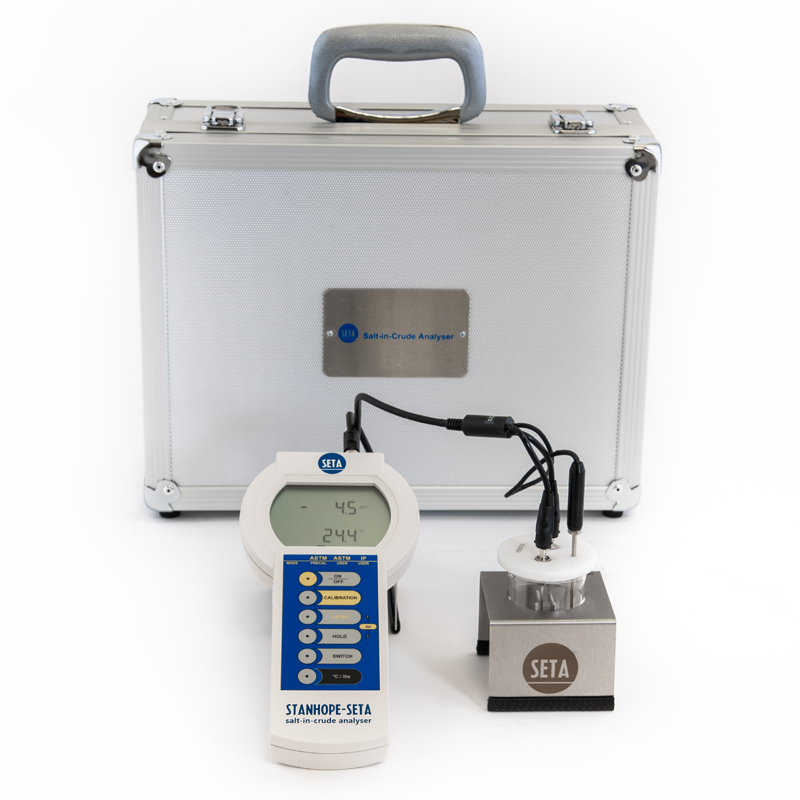

The Seta Salt in Crude Analyser is a robust and portable instrument for determining the chloride (salt) content of crude oils in full conformity to ASTM D3230, IP 265 and equivalent test methods.

The Seta Salt in Crude Analyser is pre-calibrated and automatically displays salt concentration measurements in g/m3 or lbs/1000bbl (pounds per thousand barrels), this avoids the need to mix salt calibration standards and makes testing a simple and fast procedure.

Supplied with beaker and sensor support stands, an optional bench top stand is also available. The analyser also features an interchangeable plug-in sensor and can be operated by either battery or mains power.

Salt in Crude Analyser - 99700-6


  • Pre calibrated for immediate use to ASTM D3230
  • Salt concentration values displayed automatically
  • No need for mixing of salt standards
  • Typical test time of less than 30 seconds
  • Moisture proof membrane touch screen with large keys

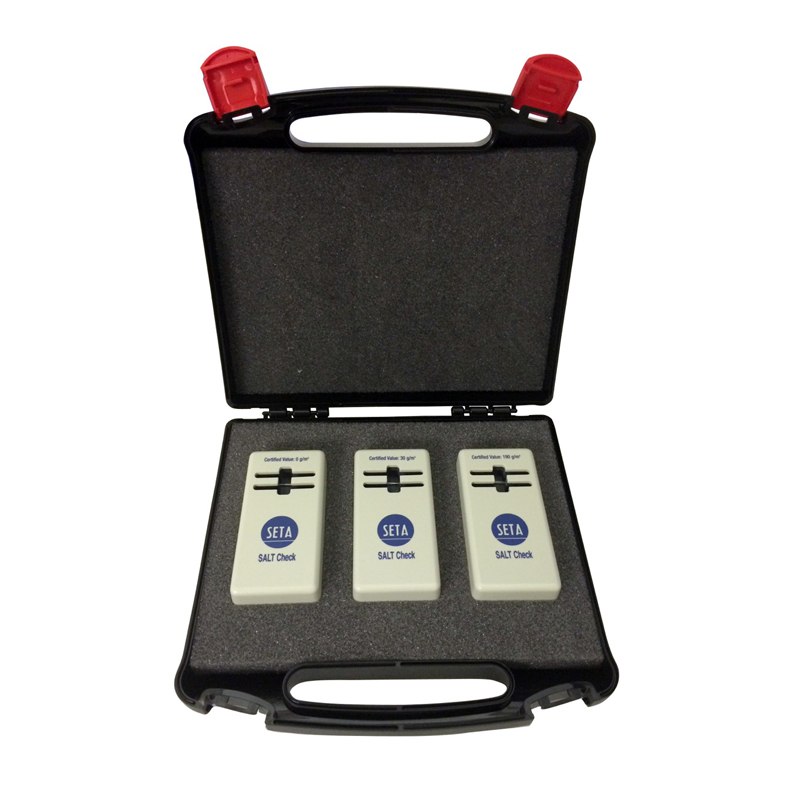

  • Calibration modes allow verification using user standards
  • RS232 - PC compatible
  • Fully portable, all items contained in aluminium carry case

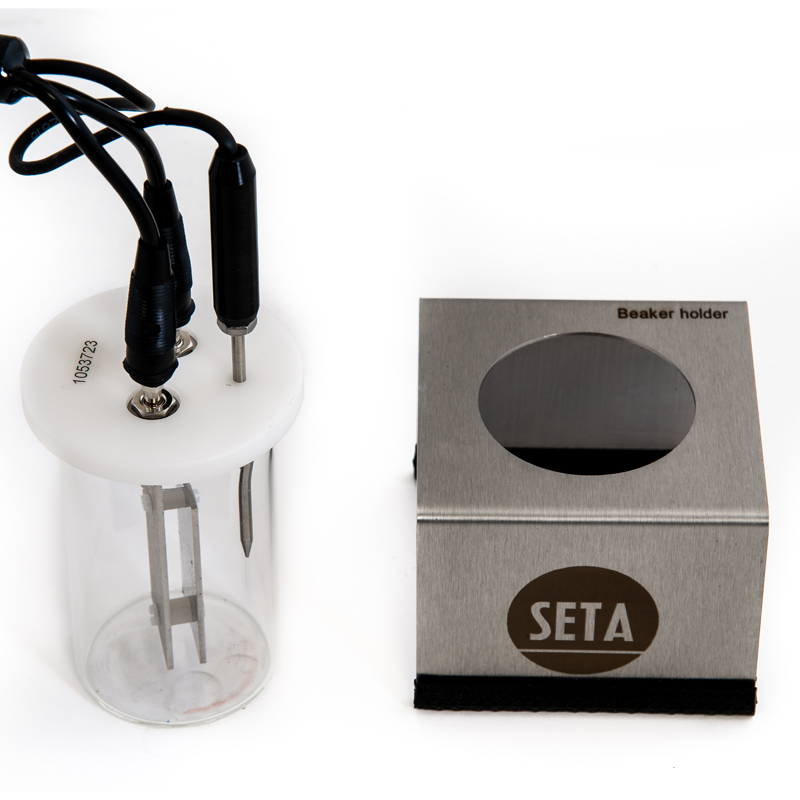

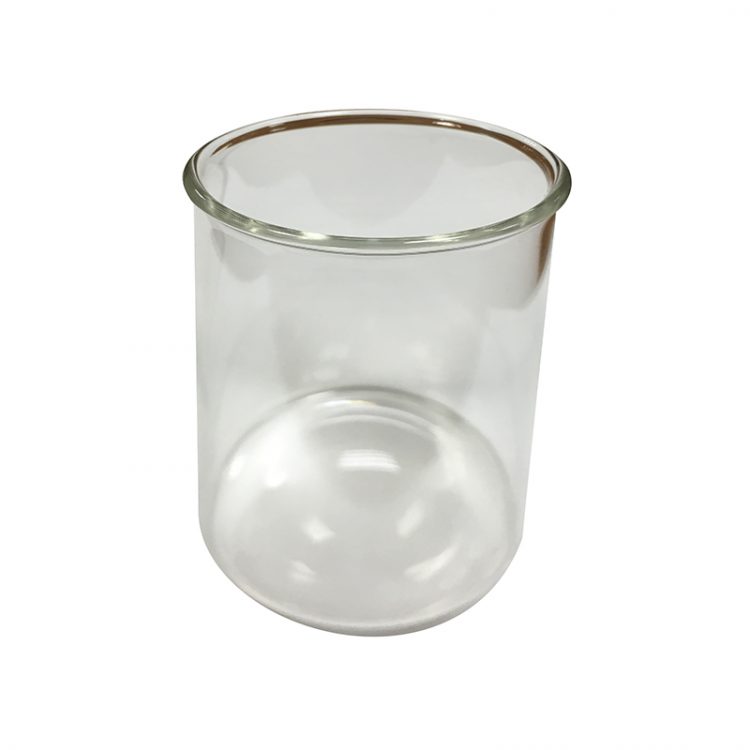

  • Supplied with beaker and sensor support stands

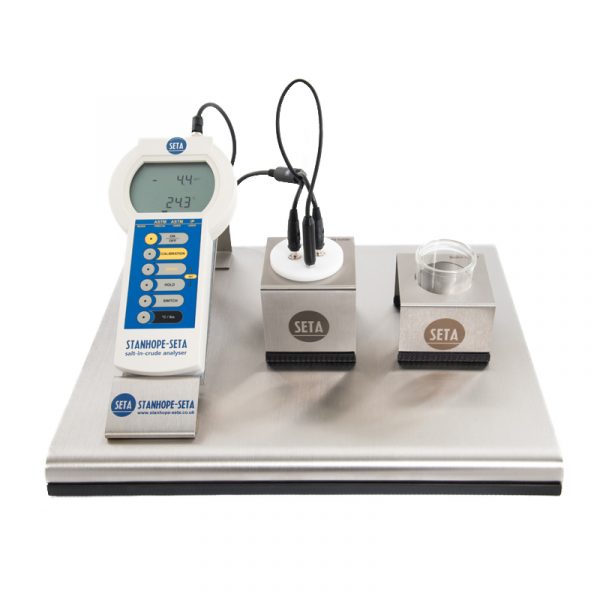

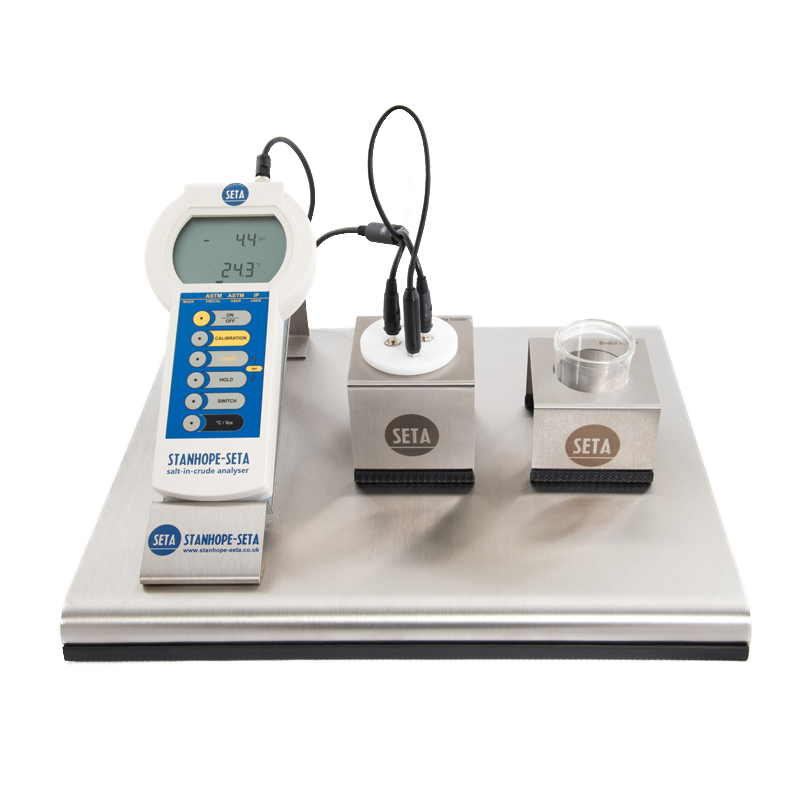

  • Optional bench top stand (see photo)

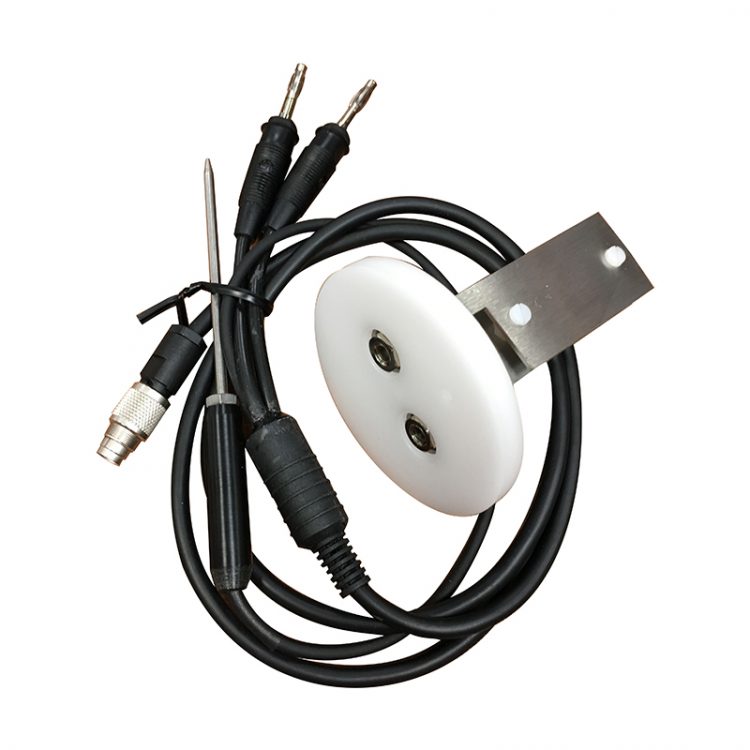

  • Interchangeable plug-in sensor
  • Battery or mains power supply

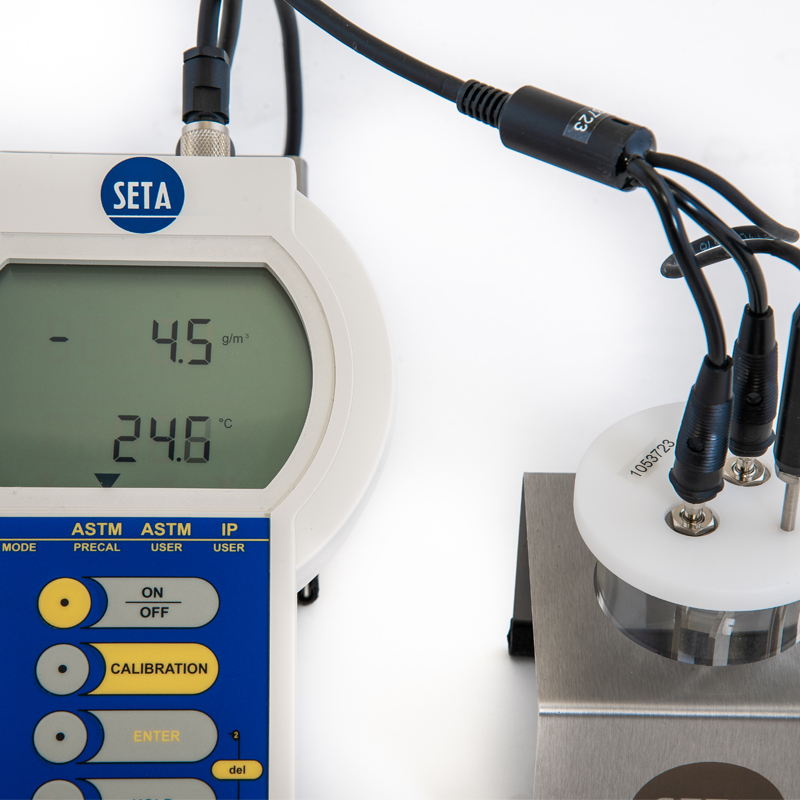

The Seta Salt in Crude Analyser has 3 test modes:

ASTM/PRECAL - pre-calibrated for use in conformity to ASTM D3230

ASTM USER- allows user calibration of ASTM values (ie: display values can be verified and/or recalibrated by the user against salt solutions of known conductivity)

IP USER - allows user calibration according to IP 265 values


ASTM D3230 Standard test method for salts in crude oil (electrometric method)
IP 265 Determination of total salts content of crude oil - Conductivity method


Conductivity range

0.0 to 151 lbs/1000bbl (Res: 0.1 lbs/1000bbl)

0.0 to 430.0 g/m3 (Res: 0.1 g/m3)

Temperature range-20 ºC to 150 ºC (res: 0.1 ºC)
Power9 volt dc battery or mains adaptor (110/120/220/240 V, 50/60 Hz adaptor supplied)
Size (HxWxD)20 x 7 x 3.5 cm
Weight1.6 kg
CCCN CodeTariff 90318080
