Seta Existent Gum Solid Block Bath – Steam or Air - 12200-3

Methods
ASTM D381
IP 131
IP 540
BS EN ISO 6246
DIN 51 784

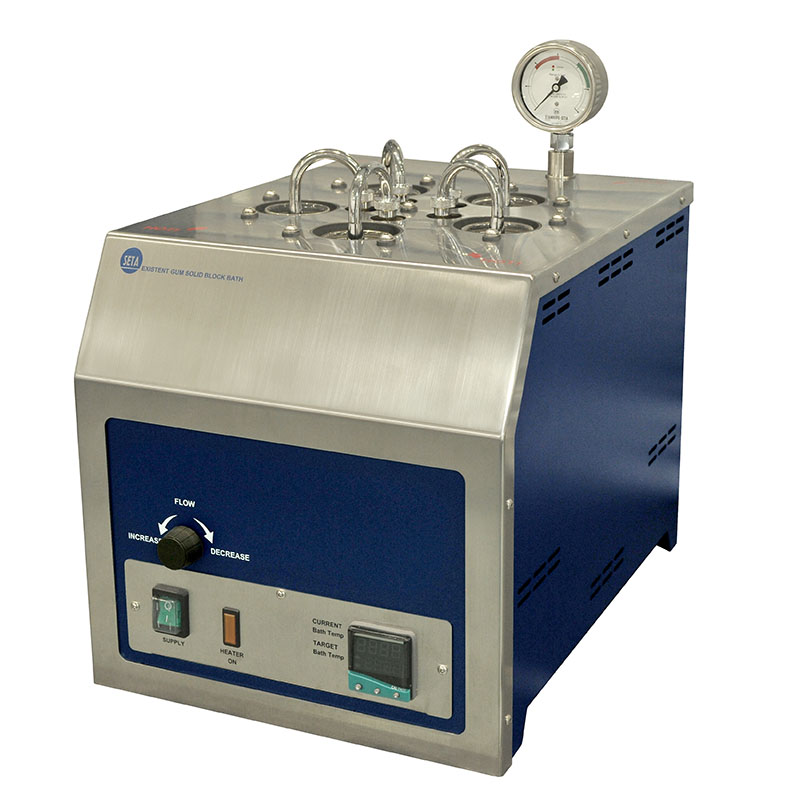

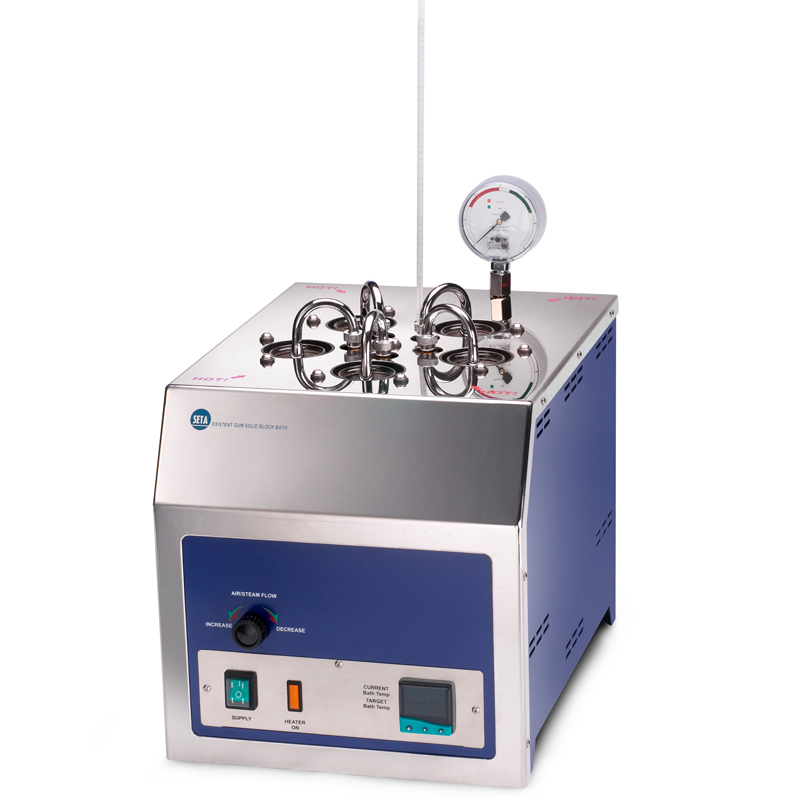

The Seta Existent Gum Solid Block Bath is designed to carry out up to five simultaneous tests for determining existent gum content in fuels by the Jet Evaporation method.

The unit comprises a solid block bath with integral steam superheater, removable taper-fit conical steam / air jet adaptors with copper screens, and a steam/air flow control valve and gauge. The bath has five test wells and a thermometer well. Outlets can be individually checked for uniform flow of air or steam.

Seta Existent Gum Solid Block Bath – Steam or Air - 12200-3

Features

  • Suitable for use with steam supply in conformity with the relevant test
  • Integral steam superheater
  • Digital temperature control
  • Over-temperature cut-out

Additional Information

The bath has a temperature range of 140 ° to 260 °C, and is controlled by a digital temperature controller which displays both the set temperature and the actual bath temperature measured by a probe. The flow of steam or air is adjusted by an inlet control valve and monitored on a Bourdon gauge calibrated for both air and steam.

Supplied with;
Bourdon gauge type flow indicator (calibrated for both air and steam)
5 x steam / air jet assemblies

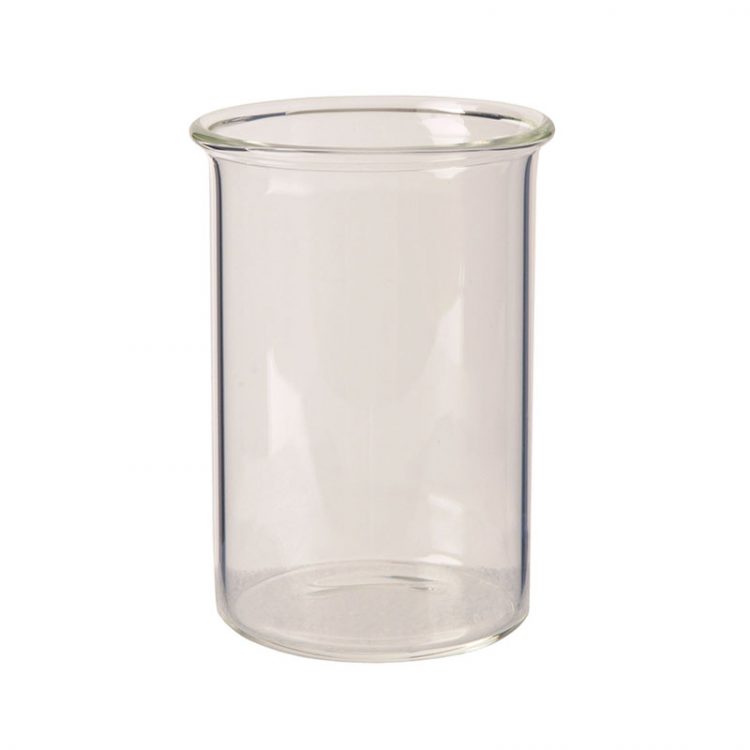

5 x borosilicate glass beakers
Instruction manual

NOTE: A steam generator or rotary compressor is required for operation. Stanhope-Seta provide these as the Seta Steam Generator (12310-3) or Rotary Compressor (12314-0).

Operating Temp. Range140 to 260°C ±0.5°C
Heaters2 kW
Over-temperature Cut-out280°C (adjustable)
Air/Steam Inlet15 mm o.d pipe
Flow IndicatorCalibrated for min and max air and steam flow
Power2 kW
Voltage220/240 V, 50/60 Hz or 220/240 V, 60 Hz
Size (HxWxD)45 x 35 x 50 cm
Weight45 kg
CCCN CodeTariff 90318080

Methods

ASTM D381
IP 131
IP 540
BS EN ISO 6246
DIN 51 784
DIN 51 784 Existent Gum in Fuels by Jet Evaporation
BS EN ISO 6246 Petroleum products. Gum content of fuels. Jet evaporation method
IP 540 Determination of the existent gum content of aviation turbine fuel - Jet evaporation method
ASTM D381 Standard test method for gum content in fuels by jet evaporation
IP 131 Standard test method for gum content in fuels by jet evaporation
