Seta Steam Generator - 12310-3

Methods
ASTM D381
IP 131
IP 540
BS EN ISO 6246
DIN 51 784

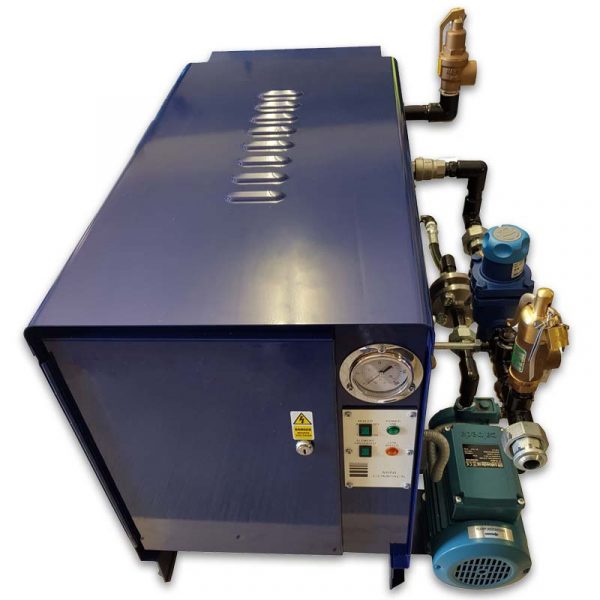

This unit is electrically heated with a water feed pump, safety valve (preset at 1 bar), water level control and cut-out. It produces 18 kg/hr (40 lb/hr) of steam at 100 °C. Maximum working pressure is 10 bar (150 lbf/in2).

For use with the Seta Existent Gum Solid Block Bath – Steam or Air (12200-3).

Seta Steam Generator - 12310-3

Additional Information

Voltage380/415 V, 50/60 Hz, 3 phase 440 V, 60 Hz, 3 phase
Power12 kW
Size (HxWxD)64 x 61 x 91 cm
Weight111 kg
CCCN CodeTariff 84021200

Methods

ASTM D381
IP 131
IP 540
BS EN ISO 6246
DIN 51 784
DIN 51 784 Existent Gum in Fuels by Jet Evaporation
BS EN ISO 6246 Petroleum products. Gum content of fuels. Jet evaporation method
IP 540 Determination of the existent gum content of aviation turbine fuel - Jet evaporation method
ASTM D381 Standard test method for gum content in fuels by jet evaporation
IP 131 Standard test method for gum content in fuels by jet evaporation
