Product

Seta TOST Bath – 12 Way - 16640-2

Methods
ASTM D943
IP 157
(*Alternative to ASTM D2274-IP 388)
ISO 4263
ISO 12205

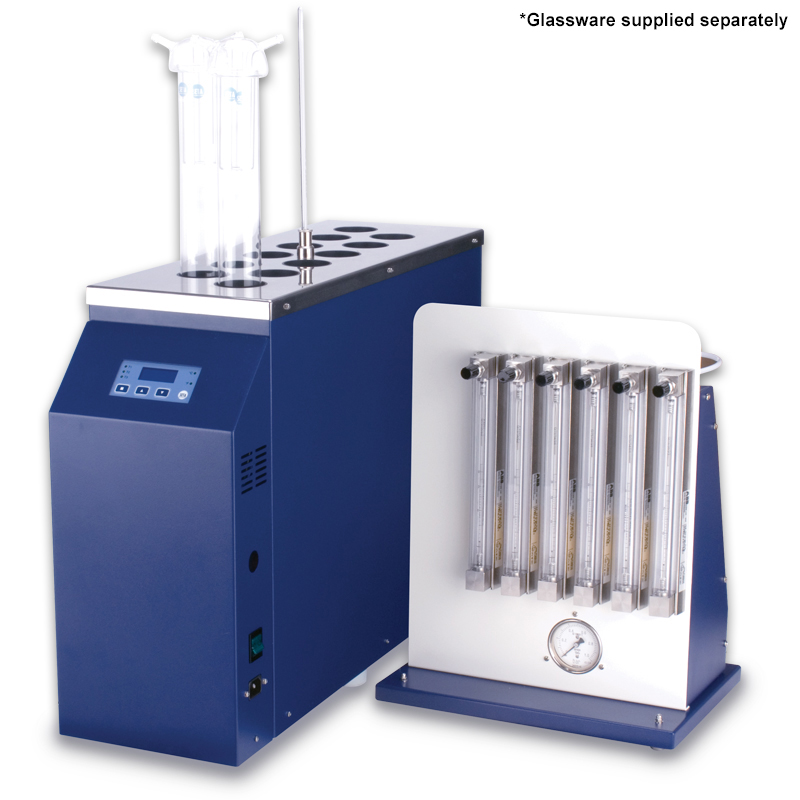

The Seta TOST Bath is a compact solid block bath which can accept up to 12 sets of oxidation glassware and is suitable for TOST tests and as an alternative to liquid filled baths.

View accessories required for each test method >

The solid block bath can accept up to 12 sets of oxidation glassware. The layout of the heating elements give an even temperature distribution and the integral Setatemp 50K Temperature Controller ensures stability over extended test times. Safety features include over-temperature cut-out.

The Seta Oxflo Controller (supplied) comprises an inlet pressure regulator, pressure gauge and six precision flowmeters with tubes and floats calibrated for oxygen at 3 litres/hour, 21 °C and 0.4 bar pressure.

Seta TOST Bath – 12 Way - 16640-2

Features

  • 12 positions
  • Dry block bath
  • Ambient to 100 °C temperature range
  • Integral Setatemp controller
  • Seta Oxflo Controller and flowmeters included

Information

Details


Supplied with:
6 place Seta Oxflo Controller with gas inlet pressure regulation
Pressure gauge
Six precision flowmeters calibrated at 3 litres/hr

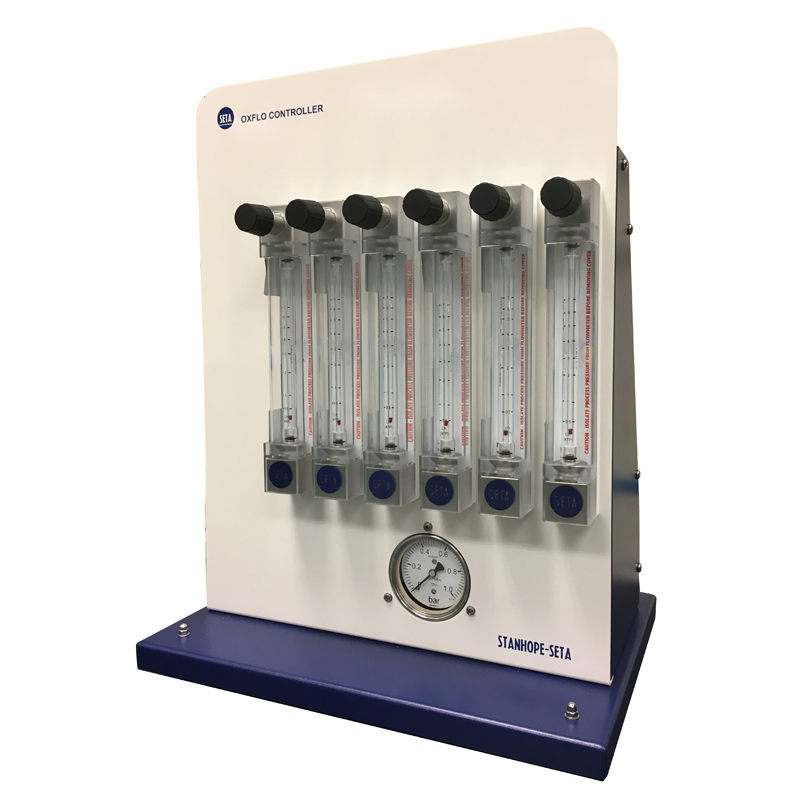

Note: For 12 way operation an additional Seta Oxflo Controller (16905-3) is required.

Note: ASTM D2274 specifies the use of a liquid bath.

Details

ASTM D943 Standard test method for oxidation characteristics of inhibited mineral oils
IP 157 Determination of the oxidation stability of inhibited mineral oils (the TOST test)
ISO 4263 Oxidation Characteristics of Inhibited Mineral Oils
ISO 12205 Oxidation Stability of Distillate Fuel Oils
(*Alternative to ASTM D2274-IP 388) Oxidation Stability of Distillate Fuel Oils

Details

Temperature rangeAmbient to 100 °C
Temperature control at 95 °CUniformity: ±0.1 °C Stability ±0.03 °C
Bath typeSolid Block
Power2 kW
Voltage220/240 V, 50/60 Hz
Size (HxWxD)Bath: 50 x 25 x 64 cm Oxflo Control Unit: 44 x 35 x 26 cm
WeightBath: 110 kg Oxflo Control Unit: 11 kg
CCCN CodeTariff 90318080
