Oxidation Bath with Oxflo Controller - 16900-7

Methods
ASTM D943
ASTM D2274
ASTM D4310
ASTM D7462
IP 157
IP 388
BS EN ISO 12205 & BS 2000-388 & ISO 12205
DIN 51 587
ISO 4263

The Seta Oxidation Bath is used for quantative analysis of the tendency of oils and fuels to form sludge, acids and deposits when exposed to oxygen in the presence of metallic catalysts over extended periods.

View accessories required for each test method >

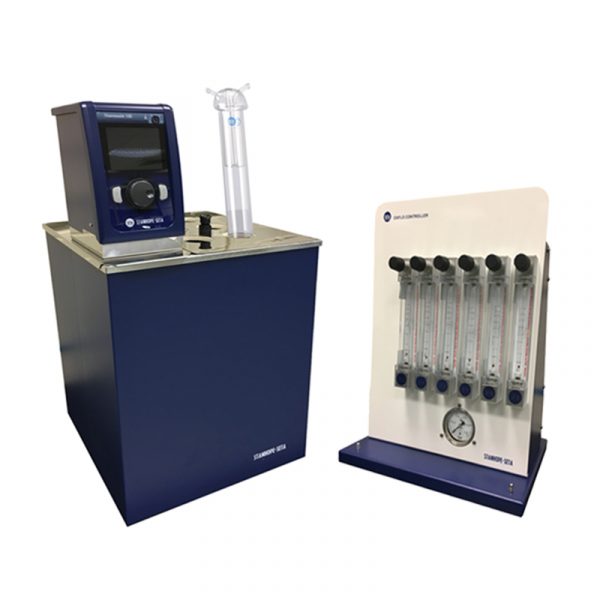

Oxidation Bath with Oxflo Controller - 16900-7

Features

  • Ambient +5 °C to 120 °C temperature range
  • 6 position oil bath
  • Reliable digital thermostir unit
  • Seta Oxflo Controller and flowmeters included
  • Low liquid protection
  • Over temperature cut out

Additional Information

The 35 litre oil bath can accept up to six sets of glassware. The stirred oil is maintained to within ±0.1 °C at 95 °C by an integral thermostir unit, that has been designed for continuous use over extended periods, incorporating a stirrer motor well recognized for longevity. The temperature measurement system uses a PT100 probe to ensure long term temperature stability without routine maintenance or re-calibration.

The separate Oxflo control unit includes a gas inlet pressure regulator, pressure gauge and six precision flowmeters calibrated for oxygen at 3 litres/hour, 21 °C and 0.4 bar pressure.

Safety features include low level liquid protection and over-temperature cut outs.

Note: Glassware and catalysts must be ordered separately.

Temperature rangeAmbient +5 °C to 150 °C
Stability±0.05 °C
Bath typeOil filled
Bath capacity35 litres
Power1.5 kW
Voltage110/120 V, 50/60 Hz
220/240 V, 50/60 Hz
Size (HxWxD)Bath: 64 x 36 x 33 cm
Oxflo Control Unit: 46 x 35 x 26 cm
WeightBath: 15 kg
Oxflo Control Unit: 21 kg
CCCN CodeTariff 90318080

Methods

ASTM D943
ASTM D2274
ASTM D4310
ASTM D7462
IP 157
IP 388
BS EN ISO 12205 & BS 2000-388 & ISO 12205
DIN 51 587
ISO 4263
ASTM D943 Standard test method for oxidation characteristics of inhibited mineral oils
ASTM D2274 Oxidation Stability of Distillate Fuel Oils
ASTM D4310 Standard test method for determination of the sludging and corrosion tendencies of inhibited mineral oils
IP 157 Determination of the oxidation stability of inhibited mineral oils (the TOST test)
DIN 51 587 Oxidation Characteristics of Inhibited Mineral Oils
ISO 4263 Oxidation Characteristics of Inhibited Mineral Oils
BS EN ISO 12205 & BS 2000-388 & ISO 12205 Methods of test for petroleum and its products. Petroleum products. Determination of the oxidation stability of middle-distillate fuels
ASTM D7462 Oxidation Stability of Biodiesel Blends (B100) and Blends of Biodiesel with Middle Distillate Petroleum Fuel (Accelerated Method)
IP 388 Determination of the oxidation stability of middle-distillate fuels
