Setastill Distillation - 11860-3

Methods
ASTM D86
ASTM D850
ASTM D1078
ASTM E133
IP 123
IP 195
BS 658
BS EN ISO 3405 & BS 2000-123

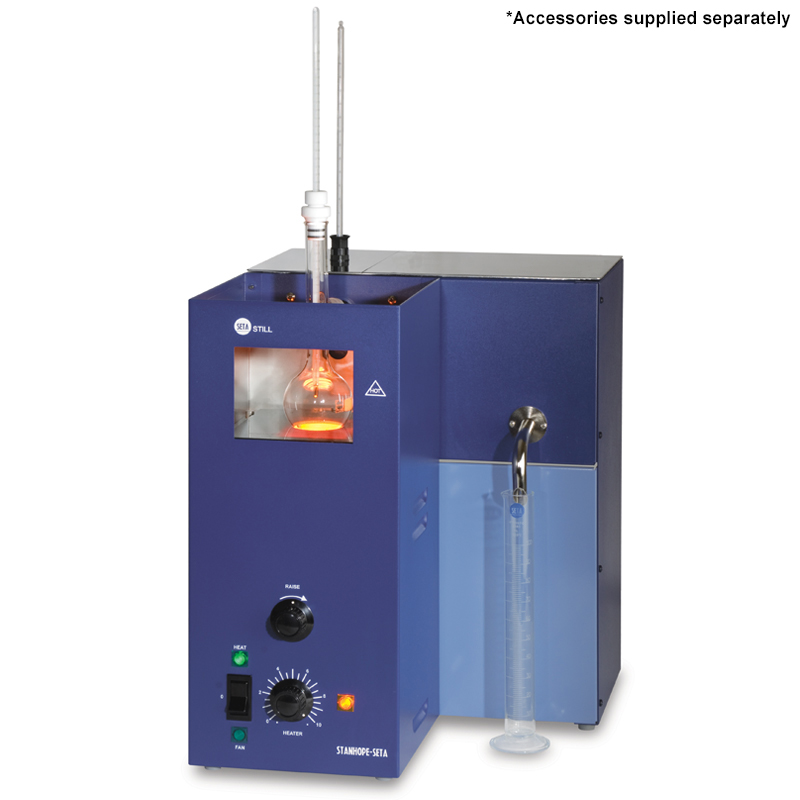

The Setastill Distillation unit is a bench-top instrument used to carry out atmospheric distillation of petroleum products and liquid fuels to determine boiling range characteristics.

The unit can distil samples from ambient temperature up to 400 °C and consists of an electrically heated distillation enclosure with a cooling fan and an integral condenser.

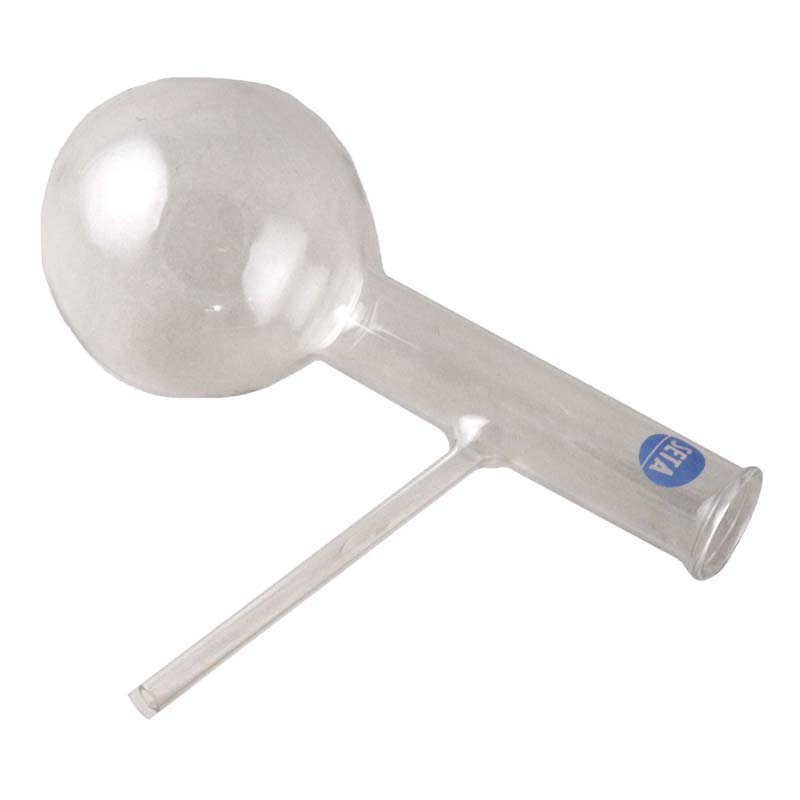

The steel distillation enclosure houses the distillation flask which is supported by a drop-in ceramic support board (accessory) mounted to a platform that is adjustable for height.

Setastill Distillation - 11860-3

Features

  • Three way heat / fan switch
  • Adjustable height platform
  • Toughened glass window
  • Ceramic glass flask support boards
  • High efficiency quartz tube heaters with gold reflectors
  • Observation window
  • Optional back lighting unit for receiver
  • Optional blower fan for cool-down after tests

Information

Details

Quartz enclosed heating elements are also attached to the platform, and are powered by a solid-state energy regulator and calibrated control. A cooling fan is installed in the rear of the distillation unit to reduce cooling time between distillations. A spillage collection tray with outlet is mounted beneath the heaters.

The condenser unit is attached to the distillation unit, and may be used with either a static fill of coolant or a laboratory cooling supply. Housed within the condenser unit is a thermally-insulated, stainless steel coolant tank, fitted with a permanently installed condenser tube. A drain tap and an overflow outlet are mounted on the rear of the unit.

Supplied with; mains lead and instruction manual.

Details

ASTM D86 Standard test method for distillation of petroleum products at atmospheric pressure
ASTM D850 Standard Test Method for Distillation of Industrial Aromatic Hydrocarbons and Related Materials
ASTM D1078 Standard test method for distillation range of volatile organic liquids
ASTM E133 Standard Specification for Distillation Equipment
IP 123 Petroleum products - Determination of distillation characteristics at atmospheric pressure (ISO 3405:2000)
IP 195 Determination of distillation characteristics of volatile organic liquids
BS 658 Specification for apparatus for the determination of distillation range (including flasks and receivers)
BS EN ISO 3405 & BS 2000-123 Determination of distillation characteristics at atmospheric pressure

Details

Distillation RangeAmbient to 400 °C
Voltage Range110/120 V or 220/240 V, 50/60 Hz (switchable)
Power1000 W maximum
Condenser Tank Volume7.2 litre
Size (HxWxD)470 x 370 x 460 mm
Weight12 kg total
CCCN CodeTariff 90318080
