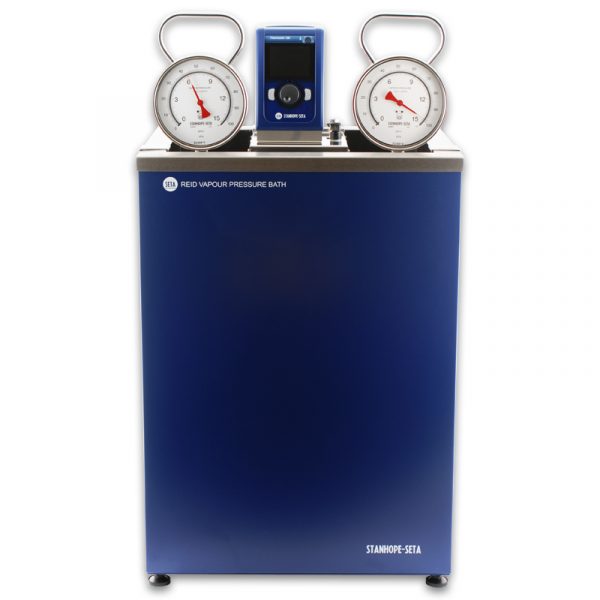

Seta Reid Vapour Pressure Bath - 22210-4
The Seta Reid Vapour Pressure Bath is a floor standing water bath specifically designed for the determination of vapour pressure with Seta Reid or Seta Vapour pressure cylinders.
Features
- Accepts up to 6 pressure cylinder assemblies
- Temperature range ambient +5 °C to 90 °C (194 °F) ± 0.1 °C
- Uniformity better than ± 0.1 °C @ 37.8 °C ( ± 0.2 °F @ 100 °F)
- Digital temperature control
- Low fluid level and over-temperature protection
Information
Details
The stainless steel 80 litre water bath has a temperature range of ambient +5 °C to 90 °C and can achieve a test temperature of 37.8 °C (100 °F) with a uniformity of ±0.1 °C (0.2 °F).
A programmable, digitally controlled thermostir unit combines the functions of heater, temperature controller, timer and stirrer. The thermostir unit is equipped with an RS 232 port, a switched output for an external relay, a socket for an external PT100 temperature probe and alarms and cut-outs for low fluid level and over-temperature.
The 22210-4 will accept up to four 22410-0 and up to six 22400-0 Seta Vapour Pressure Cylinder / Ullage Chamber assemblies.
Supplied with:
4 pressure cylinder mounting brackets
Mains lead
Instruction manual
Details
ASTM D1267 | Standard test method for gauge vapour pressure of liquefied petroleum (LP) gases (LP - gas method) |
---|---|
IP 410 | Liquefied petroleum gases - Determination of gauge vapour pressure - LPG method (ISO 4256:1996) |
ASTM D4953 Procedure A | Standard Test Method for Vapor Pressure of Gasoline and Gasoline-Oxygenate Blends (Dry Method) |
BS ISO 3007 & BS 2000-69 | Vapour Pressure of Petroleum Products (Reid Method) |
BS EN ISO 4256 & BS 2000-410 | Determination of gauge vapour pressure. LPG method |
ASTM D323 Procedures A & C & D | Standard test method for vapor pressure of petroleum products (Reid Method) |
IP 69 Procedures A & C & D | Petroleum products - Determination of vapour pressure - Reid method |
Details
Test Temperature Range | ambient +5 °C to 90 °C (9 °F below ambient to 194 °F) |
---|---|
Temperature Uniformity | ± 0.1 °C @ 37.8 °C |
Bath Volume | 80 litre |
Bath Fluid | Water (De-ionised) |
Cylinder Capacity | Up to 6 cylinder assemblies |
Voltage | 220/240 V, 50/60 Hz |
Power | 2000 W |
Size (HxWxD) | 77 cm x 55 cm x 51 cm |
Weight | 70 kg |
CCCN Code | Tariff 84198998 |
Methods
Spares and accessories for Seta Reid Vapour Pressure Bath - 22210-4
![Water Purifier - 15650-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/15650-0_Water_Purifier-750x750.jpg)
![Seta Reid Pressure Cylinder Assembly – up to 180 kPa (26 psi) - 22400-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/22400-0_Reid_Pressure_Cylinder-750x750.jpg)
Seta Reid Pressure Cylinder Assembly – up to 180 kPa (26 psi) - 22400-0
View accessory![Vapour Pressure Gauge 0 to 700 kPa - 22550-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/22550-0_Pressure_Gauge-750x750.jpg)
Vapour Pressure Gauge 0 to 700 kPa - 22550-0
View accessory![Reid Vapour Pressure Gauge 0 to 300 kPa - 22530-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/22530-0_Pressure_Gauge-750x750.jpg)
Reid Vapour Pressure Gauge 0 to 300 kPa - 22530-0
View accessory![Reid Vapour Pressure Gauge 0 to 200 kPa - 22520-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/22520-0_Pressure_Gauge-750x750.jpg)
Reid Vapour Pressure Gauge 0 to 200 kPa - 22520-0
View accessory![Reid Vapour Pressure Gauge 0 to 35 kPa - 22500-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/22500-0_Pressure_Gauge-750x750.jpg)
Reid Vapour Pressure Gauge 0 to 35 kPa - 22500-0
View accessory![Vessel Support Bracket (Pack of 2) - 22210-301 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/22210-301_Vessel_Support_Bracket-750x750.jpg)

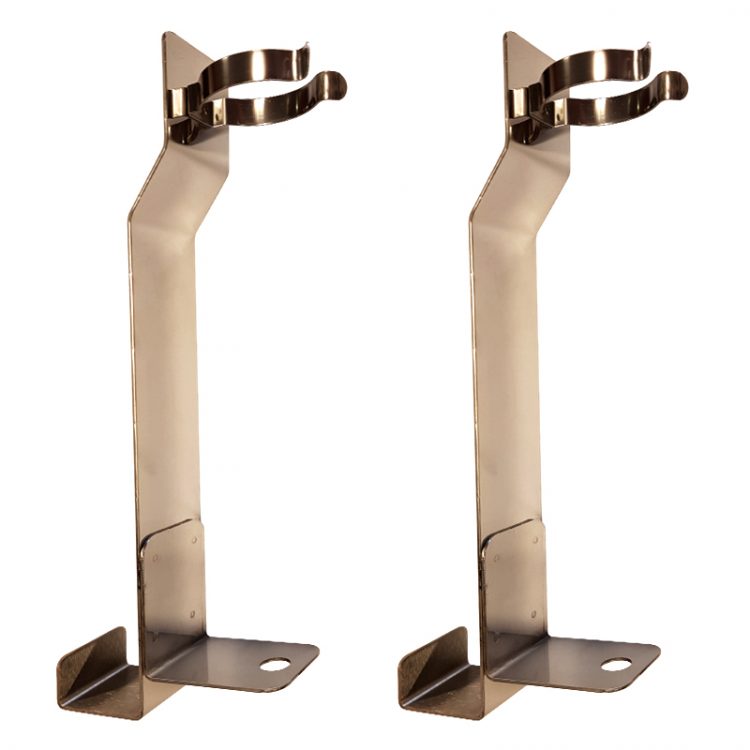

Vessel Support Bracket (Pack of 2) - 22210-301
