Seta Reid Pressure Cylinder Assembly – 180 to 700 kPa (26 to 100 psi) - 22410-0

Methods
ASTM D323
ASTM D4953 Procedure A
IP 69
BS ISO 3007 & BS 2000-69

Made from chromium-plated brass with knurled grips for safe handling and a bayonet coupling for quick leak-free connection. The volume ratio between chambers is held to close limits.

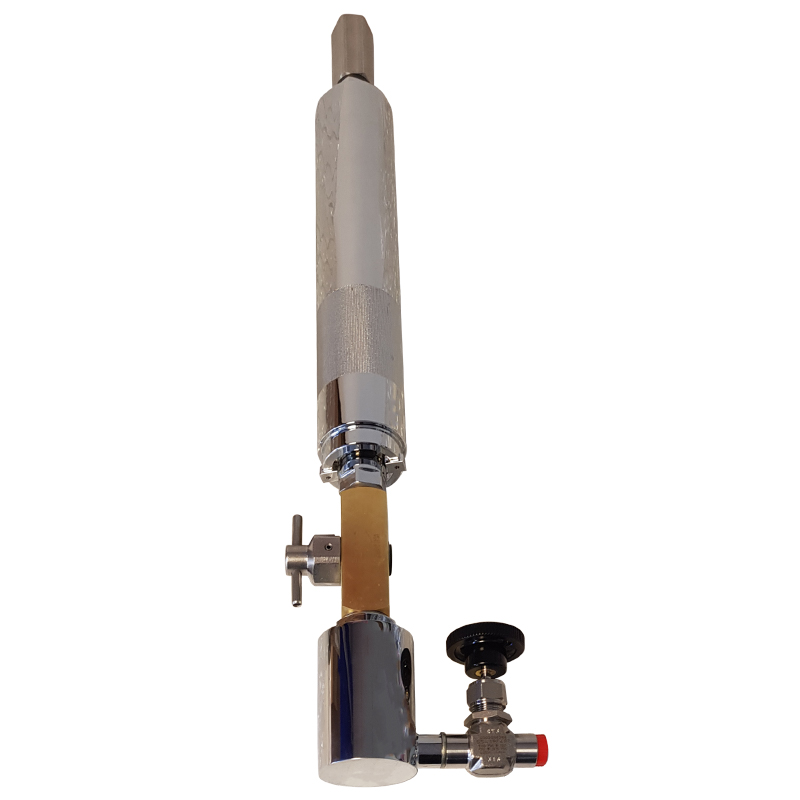

Seta Reid Pressure Cylinder Assembly – 180 to 700 kPa (26 to 100 psi) - 22410-0

Features

  • Determines Reid vapour pressure of non-viscous petroleum products and volatile crude oil
  • Accurate chamber volume ratio
  • Quick leak-free boyonet connection between chambers
  • Chromium-plated brass construction
  • Pressure range 180 to 700 kPa (26 to 100 psi)
  • 1/2 inch gate valve between gasoline and air chambers
  • 1/4 inch needle valve to gasoline chamber
  • Hydrostatically pressure tested to 1380 kPa (200 psi)

Information

Details

ASTM D323 Standard test method for vapor pressure of petroleum products (Reid Method)
ASTM D4953 Procedure A Standard Test Method for Vapor Pressure of Gasoline and Gasoline-Oxygenate Blends (Dry Method)
IP 69 Petroleum products - Determination of vapour pressure - Reid method
BS ISO 3007 & BS 2000-69 Vapour Pressure of Petroleum Products (Reid Method)

Details

CCCN CodeTariff 90268080

Methods

ASTM D323
ASTM D4953 Procedure A
IP 69
BS ISO 3007 & BS 2000-69
