Seta Pensky-Martens Closed Cup Flash Point Tester - 13661-4

ASTM D8175
IP 34
BS EN ISO 2719 & BS 2000-34

A tester with an electrically heated cup, adjustable temperature ramp rate, and two speed stirrer (for ASTM D93 - IP 34 Methods A & B).

Learn more about flash point testing and which instrument you should be using >

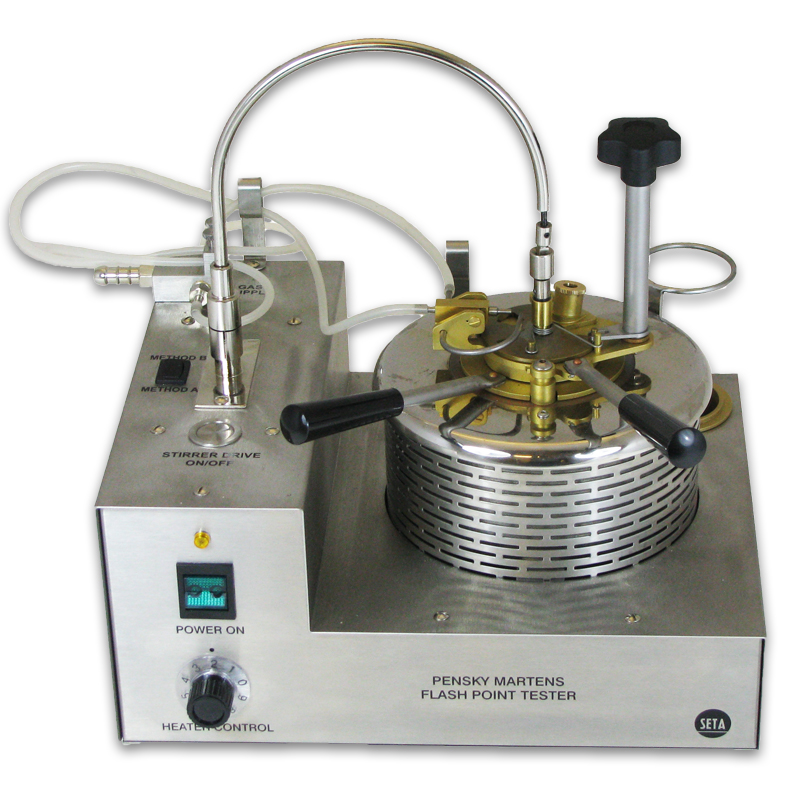

Seta Pensky-Martens Closed Cup Flash Point Tester - 13661-4


  • Ambient to 370°C temperature range
  • Variable ramp rate
  • Two speed stirrer
  • Forced air cooling facility
  • Procedures A and B
  • Integral two speed stirrer
  • Accelerated cooling
  • Open cup test conversion

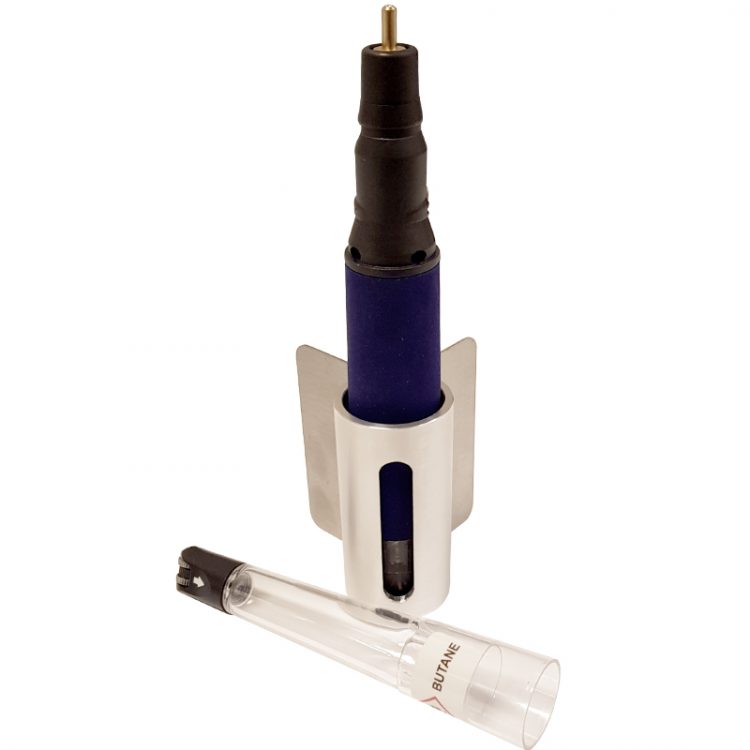

Suitable for use with mains gas or Portable Gas Tank (13667-0). A compressed air supply can be attached to the rear of the instrument to allow rapid cooling in between tests.

Supplied with;

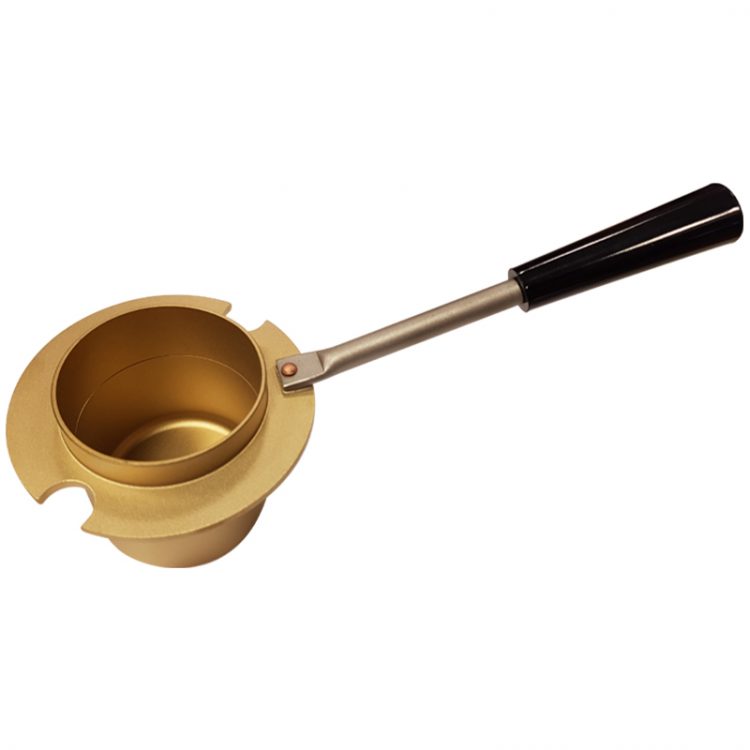

Sample cup
Lid and shutter stand
Instruction manual


BS EN ISO 2719 & BS 2000-34 Methods of test for petroleum and its products. Flash point by Pensky-Martens closed tester
ASTM D93 Standard test methods for flash-point by Pensky-Martens closed cup tester
IP 34 Determination of flash point - Pensky - Martens closed cup method (ISO 2719:2002)
ASTM D8175 Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Pensky-Martens Closed Cup Tester


StirrerTwo speed, for ASTM D93-IP34, Methods A and B
Temperature rangeAmbient to 370°C
Ramp rateVariable, manually controlled
Power430 W
Voltage110/120 V, 60 Hz 220/240 V, 50 Hz 100/130 Volt 60Hz 220/240V, 60Hz
Size (H x W x D)28 cm x 35 cm x 25 cm
Weight8 kg
CCCN CodeTariff 90268020
