H2S Analyser - SA4000-3
Methods
ASTM D7621
IP 570
ISO 8217
The H2S Analyser and Vapour Phase Processor (SA4015-0) are compact bench-top instruments, used to measure the total hydrogen sulphide (H2S) content of fuel oils, such as marine residual fuels, distillates and petroleum blend stocks. The H2S Analyser can measure H2S concentrations from 0 to 250 mg/kg (ppm) in the liquid phase.
H2S is efficiently purged from the test sample by a combination of heat and agitation, and is measured by a proprietary advanced gas specific detector. The instrument offers a cost effective solution for H2S measurement – no costly or hazardous chemicals are required and there is no need for analytical preparation by an experienced chemist.
Features
- Measurement range from 0-250 mg/kg H2S (0-250 ppm H2S) in the liquid phase
- Vapour Phase Processor proven to eliminate effects of chemical interference
- A non chemical method, no wet chemistry involved
- Small lab bench footprint, fully portable operation
- Suitable for monitoring residual marine fuel blends, Crude Oil, refinery feedstock components, cargoes & products in the distribution system
- Critical Measurement method for Product Safety and Release
Additional Information
The Vapour Phase Processor (VPP)
The Vapour Phase Processor (VPP) is used with the H2S Analyser and removes components that may affect the accuracy of the results, such as toluene, xylene, thiols (mercaptans) and alkyl sulphides.
H2S Analysis of Crude Oil
The H2S Analyser combined with the VPP offers a fast and robust means of determining H2S levels to ensure effective evaluation and treatment of crude oil. The instrument provides a cost effective alternative to traditional methods which typically are unable to identify entrained H2S especially at low gas levels.
H2S Global Proficiency Testing Scheme
The Seta H2S PTS scheme provides global inter-laboratory comparison of test results and performance. Participation acts as a quality assurance programme enabling users to continually monitor and validate instrument performance and results in accordance with ISO/IEC 17025.
The Vapour Phase Processor (VPP) is used with the H2S Analyser and removes components that may affect the accuracy of the results, such as toluene, xylene, thiols (mercaptans) and alkyl sulphides.
H2S Analysis of Crude Oil
The H2S Analyser combined with the VPP offers a fast and robust means of determining H2S levels to ensure effective evaluation and treatment of crude oil. The instrument provides a cost effective alternative to traditional methods which typically are unable to identify entrained H2S especially at low gas levels.
H2S Global Proficiency Testing Scheme
The Seta H2S PTS scheme provides global inter-laboratory comparison of test results and performance. Participation acts as a quality assurance programme enabling users to continually monitor and validate instrument performance and results in accordance with ISO/IEC 17025.
Measurement range | 0-250 mg/kg H2S in the liquid phase (0-250 ppm H2S) |
---|---|
H2S Analyser test temperature | 60 °C ±1 °C |
Viscosity Range | Up to 3000 mm2/s |
Principle of measurement | Electro-chemical sensor |
Test duration | 15 minute |
Sample size | 1 ml, 2 ml, 5 ml (depending on H2S concentration) |
Diluent volume | 20 ml |
Voltage | 12 Vdc, supplied with universal A/C transformer |
Power | 60 W max |
Computer interface | RS232 |
Size (HxWxD) | 220 x 290 x 380 mm |
Weight | 8 kg |
CCCN Code | Tariff 90268020 |
Industries
Methods
ASTM D7621
IP 570
ISO 8217
IP 570 | Determination of hydrogen sulfide in fuel oils - Rapid liquid phase extraction method |
---|---|
ASTM D7621 | Determination of Hydrogen Sulfide in fuel oil - rapid liquid phase extraction method |
ISO 8217 | Fuel Standard for marine distillate fuels and for marine residual fuels |
Spares and accessories for H2S Analyser - SA4000-3

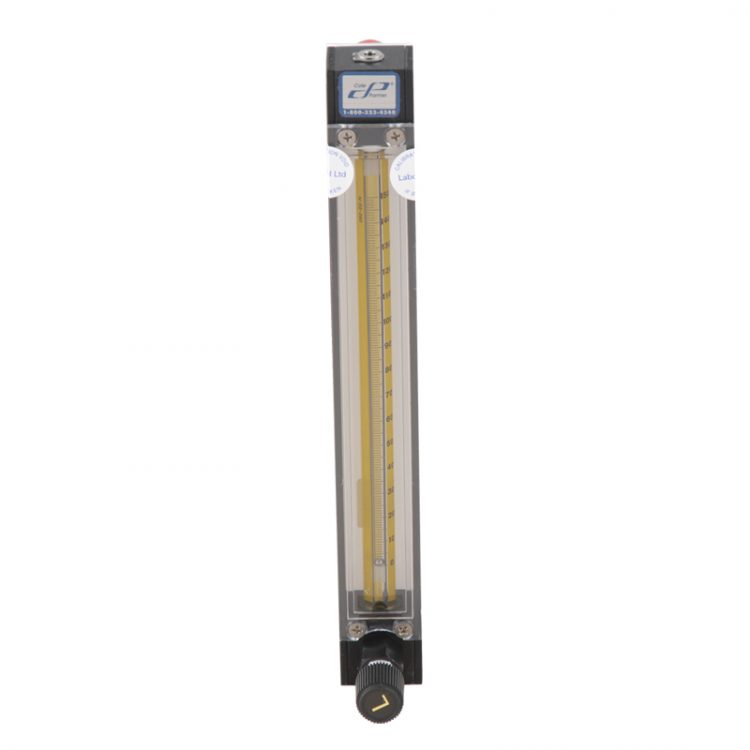

H2S Airflow Calibration & Verification Kit (IP 570) - SA4011-0
View accessory
H2S Static Calibration & Verification Kit - SA4001-2
View accessory

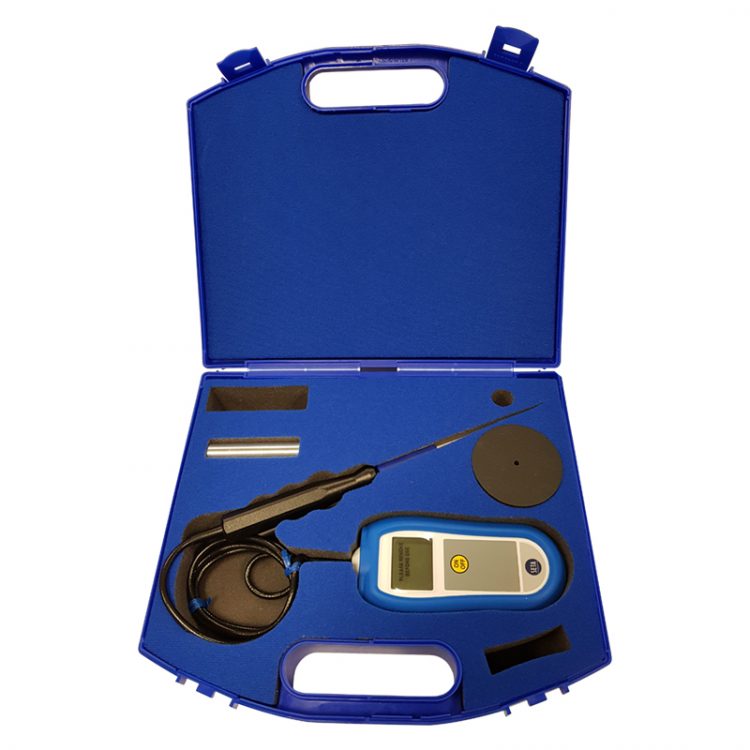

H2S VPP Calibration Kit - SA4019-2
View accessory

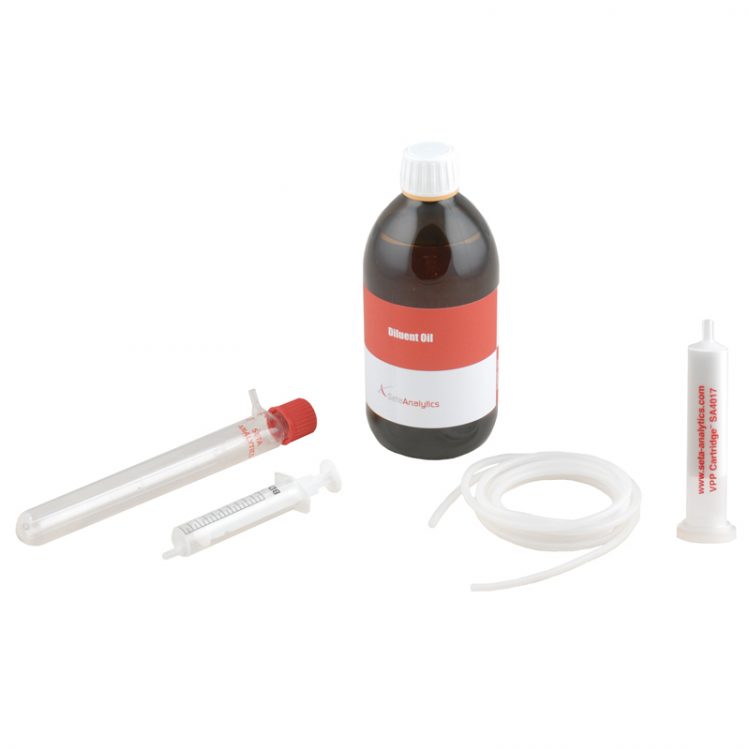

H2S Start up Kit for IP 570 (approx 20 tests) - SA4003-3
View accessory
H2S Vapour Phase Processor (VPP) - SA4015-0
View product
Analytical Balance - 99100-2
View product
H2S Personal Protector - SA4002-0
View product
H2S Test Vessel Warmer - SA4008-0
View accessory
H2S Pipette - SA4004-0
View accessory

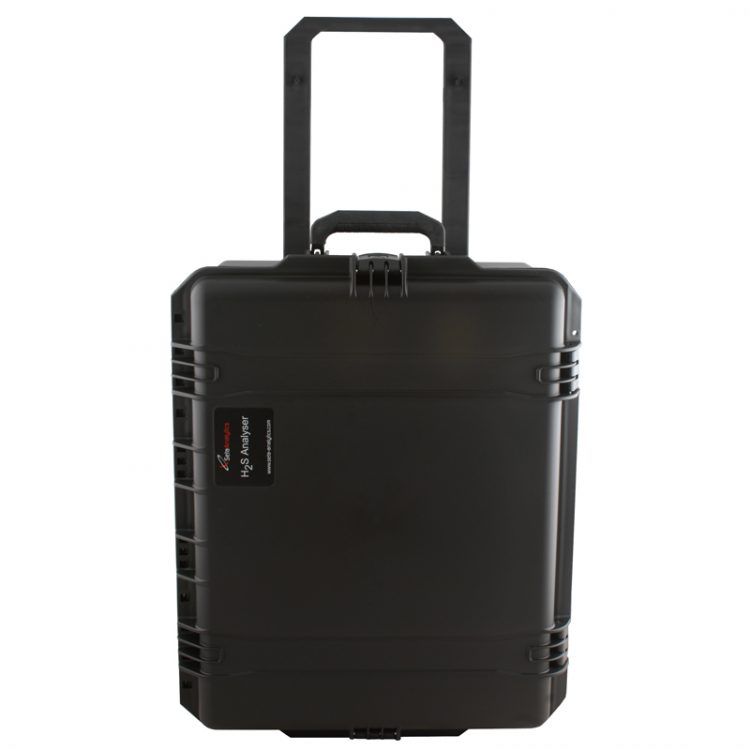

H2S Carry Case - SA4007-0
View accessory

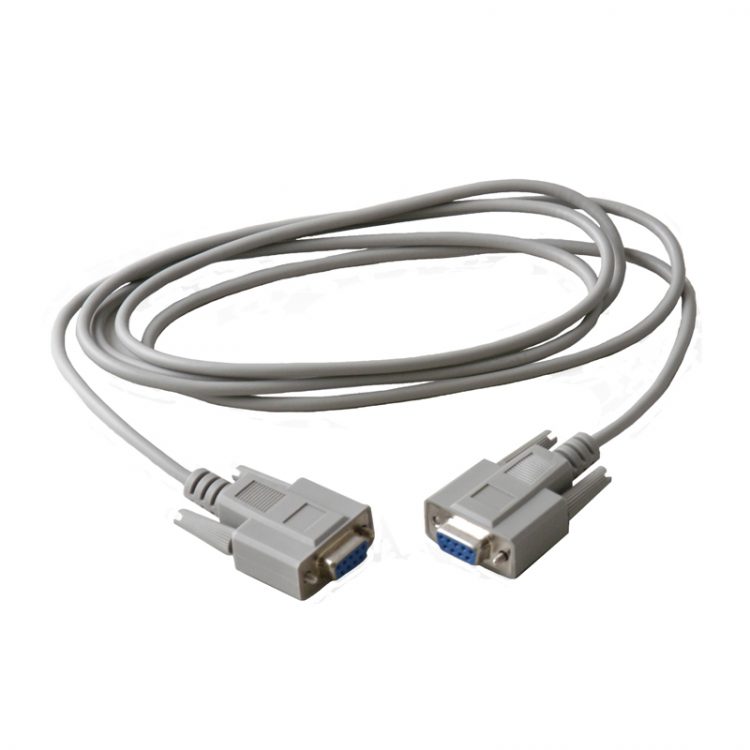

H2S PC Connection Lead - SA4010-0
View accessory

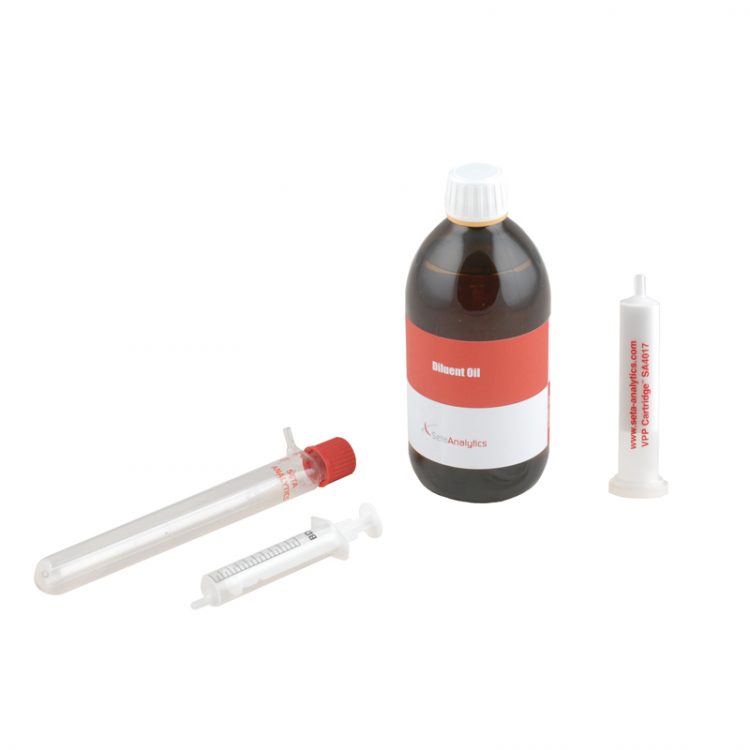

H2S Consumables kit (200 tests) - SA4005-3
View accessory
H2S Crude Oil Test Kit - SA4021-0
View accessory

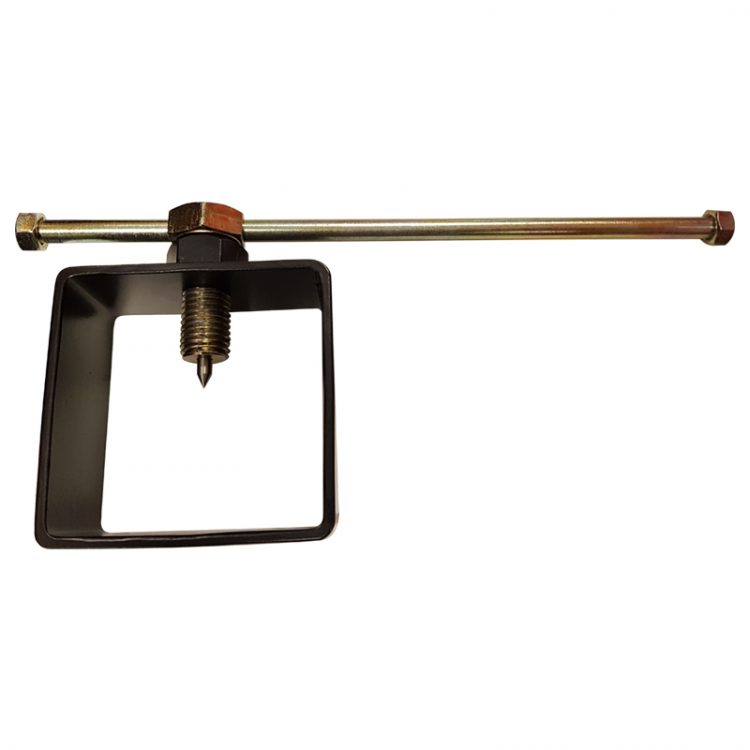

Canister Disposal Tool - SA4001-003
View accessory
Data Printer - 81002-3
View accessory
H2S Liquid Trap (pack of 5) - SA4000-009
View accessory
H2S Filters (pack of 50) - SA4000-003
View accessory
H2S Syringes (pack of 200) - SA4000-007
View accessory
H2S Consumables kit (200 tests) - SA4005-3
View accessory
H2S Diluent 5 litres - SA4013-0
View accessory

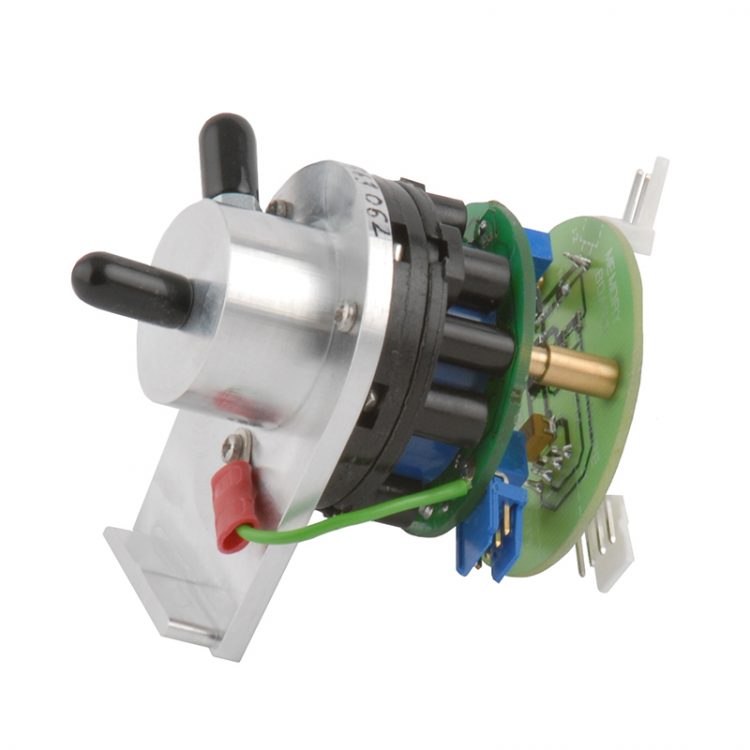

Calibrated Sensor for H2S Analyser - SA4000-201
View accessory
H2S Vapour Phase Processor Cartridge (pack of 100) - SA4017-100
View accessory
Printer Paper (Pack of 20) - 81002-301
View accessory
