FIJI DRG – FAME in Distillate & Residual Fuels - SA5100-0

ASTM D7963
IP 631
ISO 8217

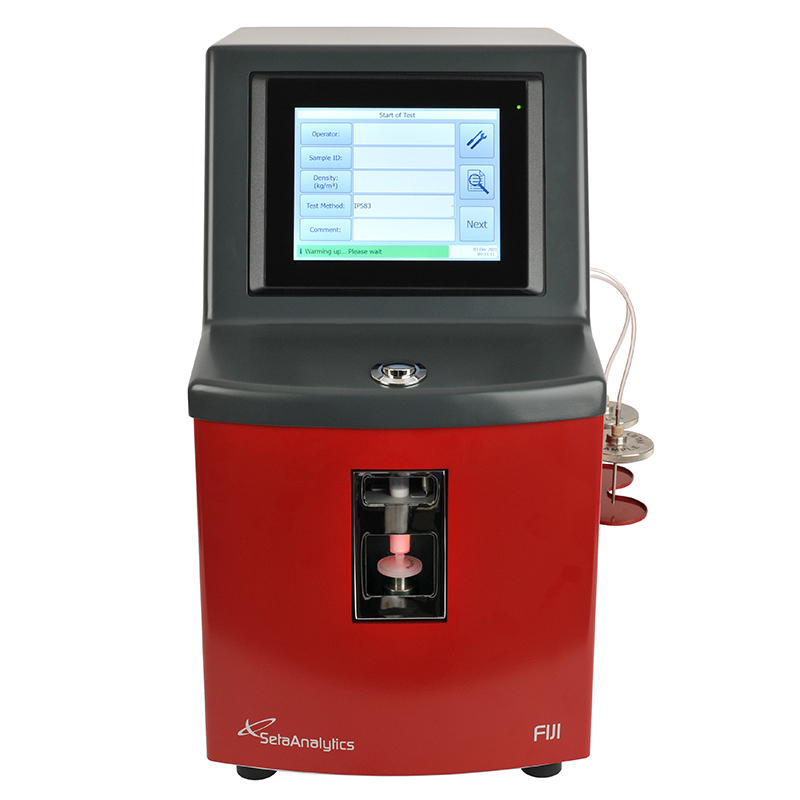

The patented FIJI DRG offer a rapid and easy check on parts per million (ppm or mg/kg) levels of FAME in distillates, residuals and gasoline.

FIJI uniquely utilises state of the art FTIR (Fourier Transform Infra-Red Spectroscopy) technology and a patented sample preparation system which allows FAME detection accuracy down to the 20 mg/kg level.

FIJI DRG can be used as a field or lab based screening tool to give a quick indication of possible FAME contamination that may then require further investigation. The instrument can be used to prevent expensive testing and avoid costly delays of fuel release.

A Multi-Product version of FIJI is available to measure Distillate & Residual Fuels as well as Jet.

Existing users of FIJI DRG can upgrade to enable measurement of FAME in Jet Fuels in accordance with ASTM D7797 & IP 583 using SA5050-0.

FIJI DRG – FAME in Distillate & Residual Fuels - SA5100-0


  • FAME in Distillate & Residual Fuels
  • Measures the presence of all FAME types C8 to C22
  • Approved for co-processed fuels
  • Analysis time 20 minutes
  • 50 ml sample volume
  • Measuring range 20 mg/kg to 50%
  • Laboratory and field instrument
  • Suitable for untrained operators
  • Fully automatic
  • Patent Approved

Additional Information

Ease of use:
The instrument is extremely simple to use and fully automatic, specialist operator training is not required.
The system is self-cleaning, no solvents are required. After each test you simply replace the cartridge and the instrument is immediately ready for the next sample.

Enhanced test throughput:
Tests require less than 50 ml of sample and typically take under 20 minutes.
Results are presented in mg/kg units together with an optional traffic light system for flagging FAME contamination levels of the fuel.
By comparison current analytical tests can take many hours, require complex equipment and demand high skill levels.

Precision and accuracy:

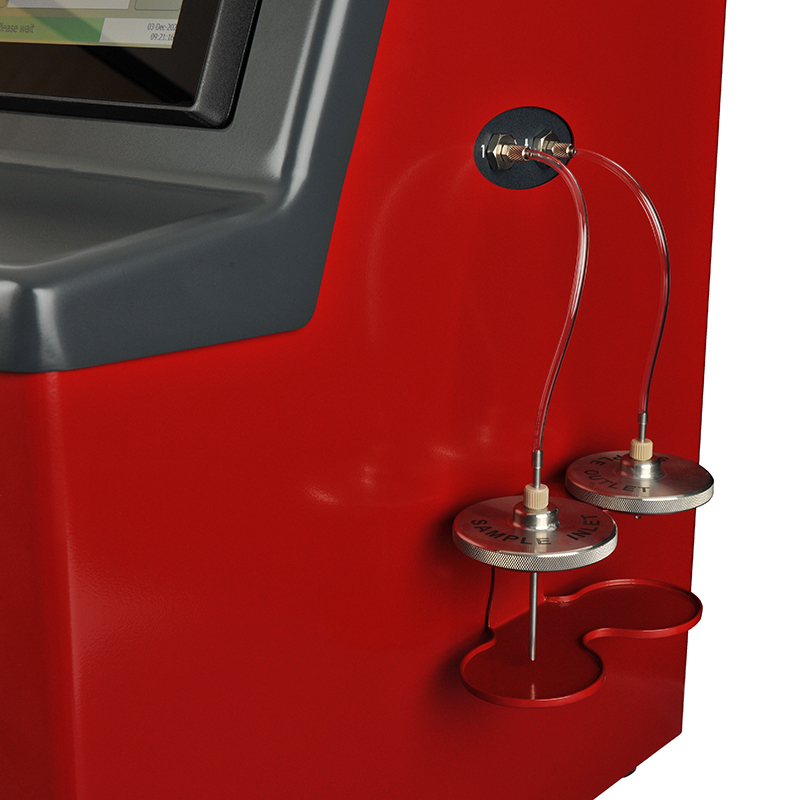

Using a unique sample preparation module the sample is pumped at a controlled flow rate though a proprietary disposable cartridge.

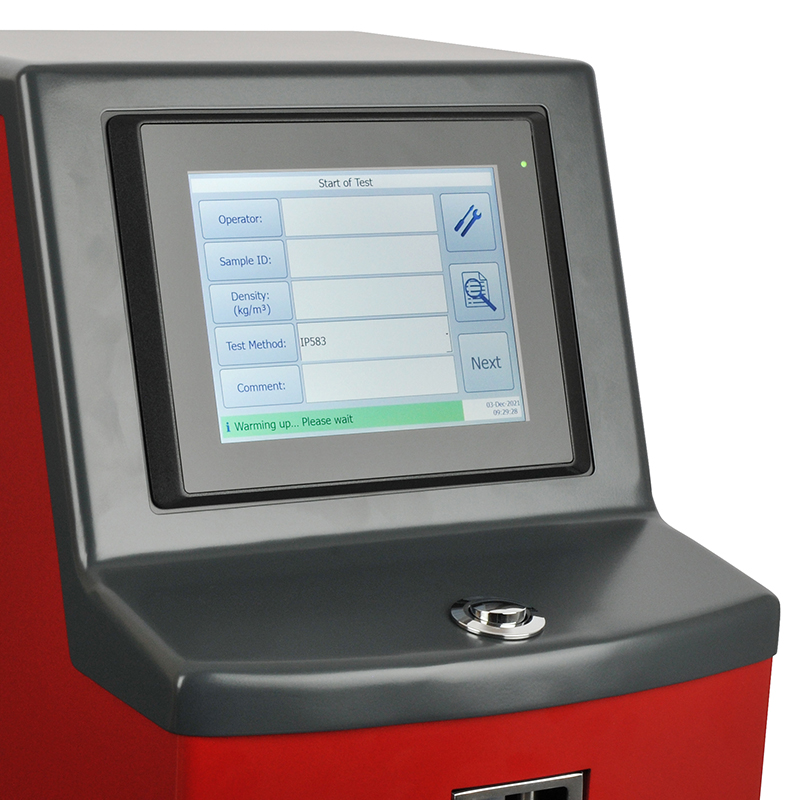

The sample components are analysed by the FTIR and a result is displayed in mg/kg, a graphical spectrum is also shown.

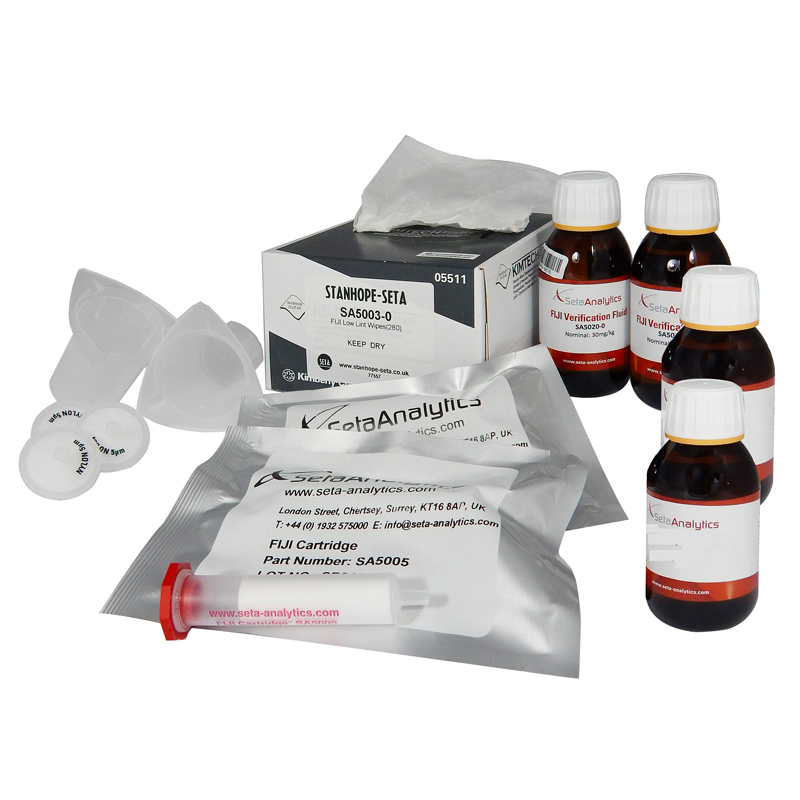

Please note: FIJI IP 583 Starter Kit (SA5001-0) is required for initial operation.
Measurement range20 mg/kg to 50%
Test duration20 minutes
Sample size50 ml
Operating temperature range5 to 35 °C maximum (80% RH)
ConnectivityUSB 'A' (2 ports), LIMS
Power50W maximum
Voltage100/250V, 50/60Hz
Size (HxWxD)55 x 38 x 42 cm
Weight27 kg
CCCN CodeTariff 90273000


ASTM D7963
IP 631
ISO 8217
ISO 8217 Fuel Standard for marine distillate fuels and for marine residual fuels
ASTM D7963 Determination of Contamination Level of Fatty Acid Methyl Esters in Middle Distillate and Residual Fuels Using Flow Analysis by Fourier Transform Infrared Spectroscopy -Rapid Screening Method
IP 631 Determination of the contamination level of fatty acid methyl esters in middle distillate and residual fuels using Flow Analysis by Fourier Transform Infrared Spectroscopy - Rapid Screening Method
