Aviation
chevron_rightFIJI MF – FAME in MultiFuels - SA5200-0
Methods
ASTM D1665
ASTM D7797
ASTM D7963
IP 583
DEF STAN 91-091
ISO 8217
The patented FIJI has been developed to offer a rapid and easy check on Parts Per Million (ppm or mg/kg) levels of FAME in aviation fuel, distillates, residuals and gasoline.
FIJI uniquely utilises FTIR (Fourier Transform Infra-Red Spectroscopy) technology and a patented sample preparation system which allows FAME detection accuracy down to the 10 mg/kg level.
FIJI can be used as a field or lab based screening tool to give a quick indication of possible FAME contamination that may then necessitate further investigations. The instrument helps to prevent expensive testing and avoid costly delays of fuel release.
FIJI MF – FAME in MultiFuels - SA5200-0
Features
- 10-150ppm (mg/kg) in Jet Fuels
- 20 mg/kg to 50% in Distillate & Residual Fuels
- Measures the presence of all FAME types C8 to C22
- Approved for co-processed fuels
- No hydrocarbon cleaning solvents required
- Laboratory and field instrument
- Suitable for untrained operators
- Patent Approved
Additional Information
Ease of use:
The instrument is extremely simple to use and fully automatic, specialist operator training is not required.
The system is self-cleaning, no solvents are required. After each test you simply replace the cartridge and the instrument is immediately ready for the next sample.
Enhanced test throughput:
Tests require less than 50 ml of sample and typically take under 20 minutes.
Results are presented in mg/kg units together with an optional traffic light system for flagging FAME contamination levels of the fuel.
By comparison current analytical tests can take many hours, require complex equipment and demand high skill levels.
Precision and accuracy:
Using a unique sample preparation module the sample is pumped at a controlled flow rate though a proprietary disposable cartridge.
The sample components are analysed by the FTIR and a result is displayed in mg/kg, a graphical spectrum is also shown.
The instrument is extremely simple to use and fully automatic, specialist operator training is not required.
The system is self-cleaning, no solvents are required. After each test you simply replace the cartridge and the instrument is immediately ready for the next sample.
Enhanced test throughput:
Tests require less than 50 ml of sample and typically take under 20 minutes.
Results are presented in mg/kg units together with an optional traffic light system for flagging FAME contamination levels of the fuel.
By comparison current analytical tests can take many hours, require complex equipment and demand high skill levels.
Precision and accuracy:
Using a unique sample preparation module the sample is pumped at a controlled flow rate though a proprietary disposable cartridge.
The sample components are analysed by the FTIR and a result is displayed in mg/kg, a graphical spectrum is also shown.
| Measurement range | 10-150 mg/kg FAME in Jet Fuels
20 mg/kg to 50% FAME in Distillate & Residual Fuels |
|---|---|
| Test duration | 20 minutes |
| Sample size | 50 ml |
| Temperature range | 5 to 35 °C maximum (80% RH) |
| Connectivity | USB 'A' 2 ports, LIMS |
| Power | 50W maximum |
| Voltage | 100/250 V, 50/60 Hz |
| Size (HxWxD) | 55 x 38 x 42 cm |
| Weight | 27 kg |
| CCCN Code | Tariff 90273000 |
Methods
ASTM D1665
ASTM D7797
ASTM D7963
IP 583
DEF STAN 91-091
ISO 8217
| ASTM D1665 | Engler Specific Viscosity of Tar Products |
|---|---|
| DEF STAN 91-091 | Aviaton Fuel Specification |
| IP 583 | Rapid Screening Test for FAME in JET |
| ISO 8217 | Fuel Standard for marine distillate fuels and for marine residual fuels |
| ASTM D7797 | Rapid Screening Test for FAME in Aviation Turbine Fuel |
| ASTM D7963 | Determination of Contamination Level of Fatty Acid Methyl Esters in Middle Distillate and Residual Fuels Using Flow Analysis by Fourier Transform Infrared Spectroscopy -Rapid Screening Method |

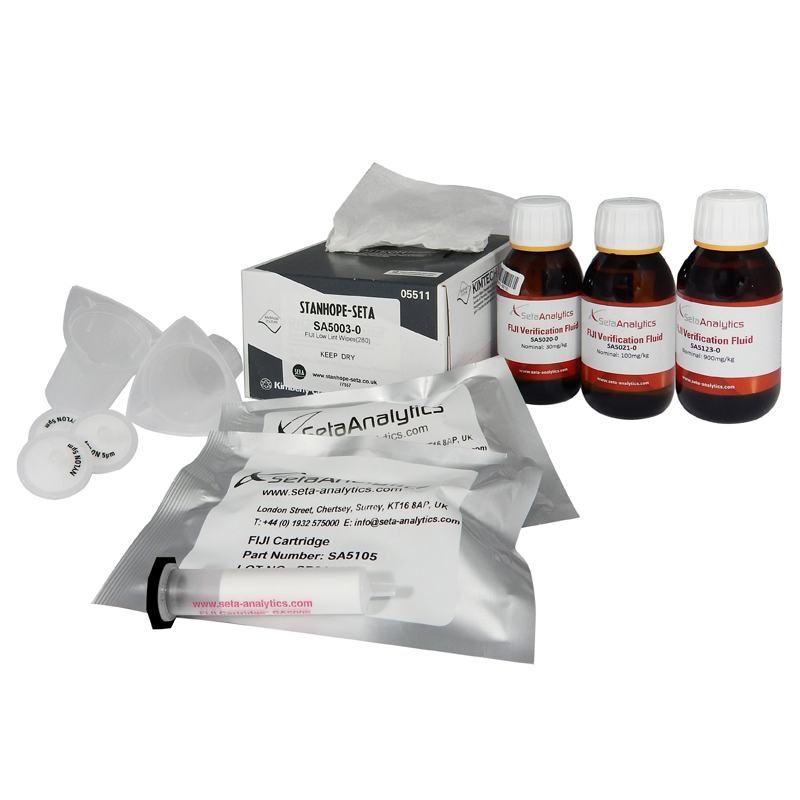

Spares and accessories for FIJI MF – FAME in MultiFuels - SA5200-0
FIJI Beaker 50 ml (pack of 100) - SA5004-100
View accessory
FIJI Low Lint Wipes (pack of 280) - SA5003-0
View accessory
FIJI ASTM D7963 Annual Service Kit - SA5115-0
View accessory
FIJI DRG Range Extender Diluent 5 L - SA5029-0
View accessory
FIJI ASTM D7963 Cartridges (pack of 100) - SA5105-100
View accessory
FIJI IP 583 and ASTM D7797 Cartridge (pack of 100) - SA5005-100
View accessory
FIJI Verification Material 100 mg/kg 100 ml - SA5021-0
View accessory
FIJI Verification Material 30 mg/kg 100 ml - SA5020-0
View accessory
FIJI Verification Material 900 mg/kg 100 ml - SA5123-0
View accessory
FIJI Verification Material 400 mg/kg 100 ml - SA5122-0
View accessory
