AvCount Lube Particle Counter - SA1900-0

Methods
ASTM D6876
ASTM D7619
ASTM D7647
IP 565
GJB 420-1987/420-A-1996/420B-2006
IEC 60970
ISO 4406
ISO 11500
ISO 60970
JIS B 9932:2012
JIS B 9933:2021
JIS B 9934:2012

The AvCount Lube particle counter determines particle concentration in oils with a viscosity up to 200 mm2/s. FFKM seals have been fitted to resist aggressive oils.

• Simple operation
• Ideal for handling lubricating and hydraulic oils
• 3 minute test time
• Programmable via PC

With a simple test procedure and user friendly features, operator skill or expertise is kept to a minimum.

AvCount Lube can hold up to 3 test methods with custom methods created on a PC before being uploaded using the supplied ProTrend control and analysis software.

Test progress and results for up to 6 size bands are displayed as cumulative particles/ml and ISO 4406, NAS 1638, AS4059 cleanliness codes.

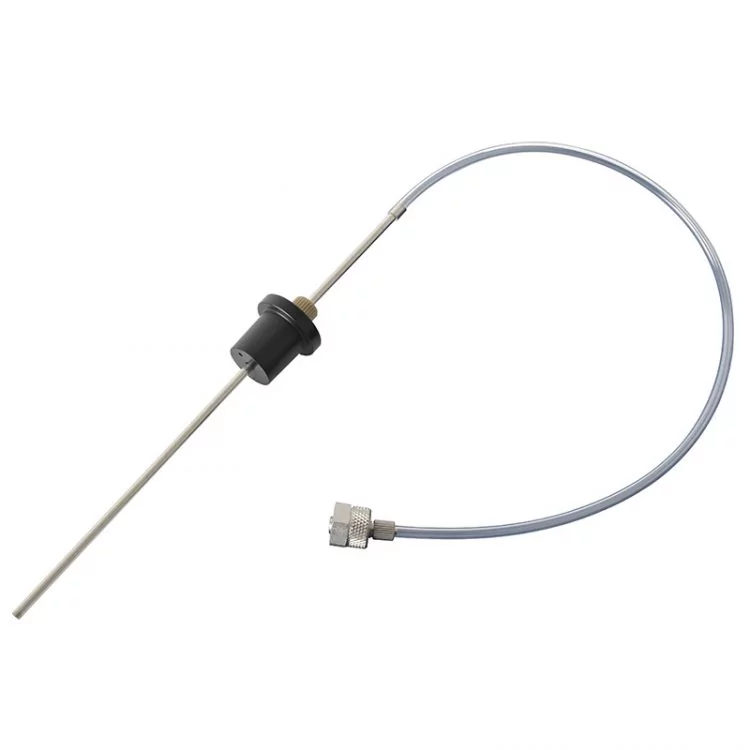

Supplied with: sample probe, waste pipe, universal voltage power supplies, USB cable, calibration certificate and USB memory stick containing handbooks and ProTrend software for test method programming and data download.

Particle counting in hydraulic and lubricating oils

AvCount Lube Particle Counter - SA1900-0

Features

  • Calibrated to ISO 11171, traceable to NIST SRM 2806d
  • Supplied with ASTM D7647, ISO 60970 and ISO 4406 loaded as standard
  • FFKM seals compatible with synthetic oils
  • Suitable for fluids up to 200mm2/s viscosity
  • Precise and reliable results
  • Ultra compact rugged, steel case suitable for portable use
  • Data storage for up to 600 measurements
  • Internal Double Pump System
  • USB connection for PC connectivity

Information

Details

Integral Compressor

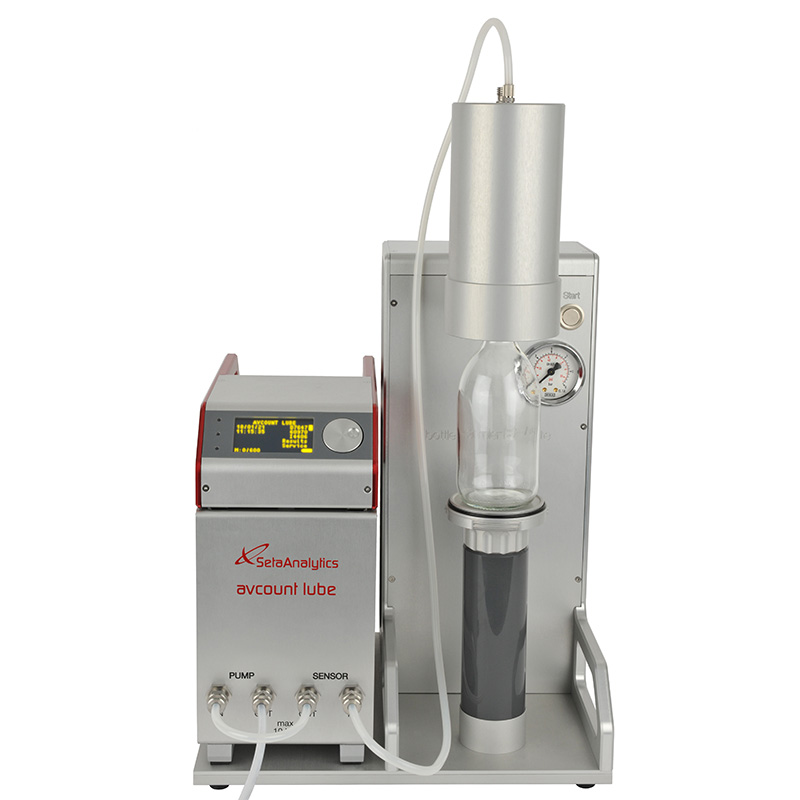

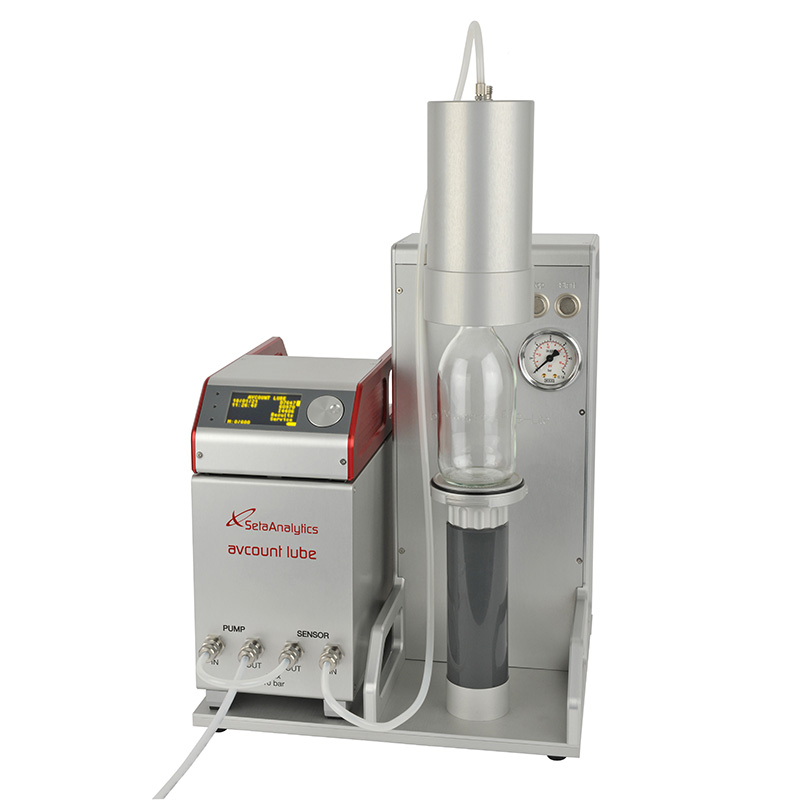

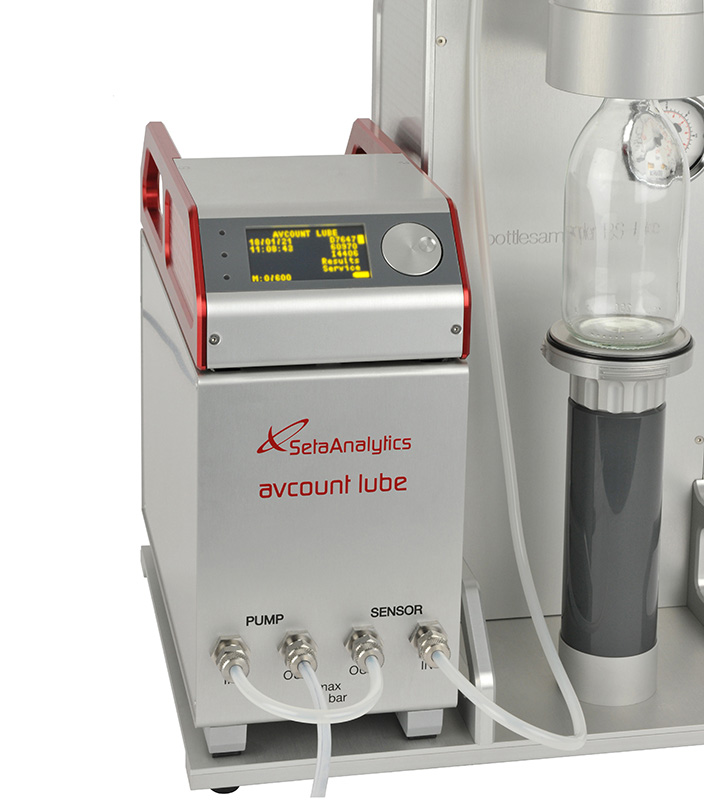

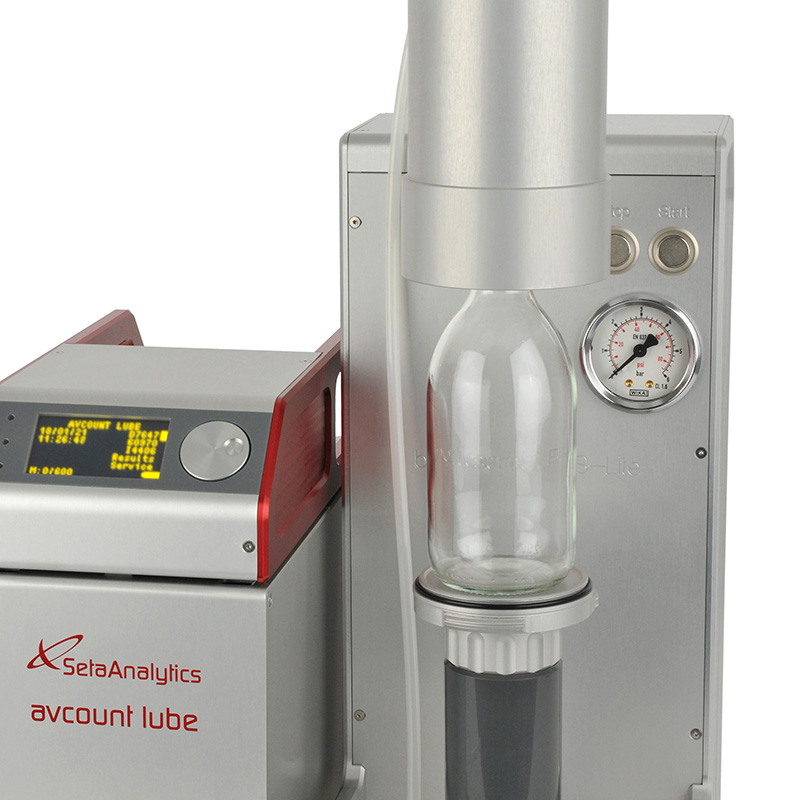

AvCount Lube comprises a light extinction automatic particle counter and a sample delivery unit. Designed to handle samples with a viscosity up to 200 mm2/s, the AvCount Lube has an integral compressor that pressurises the sample chamber to 3 bar.

Calibration and verification:

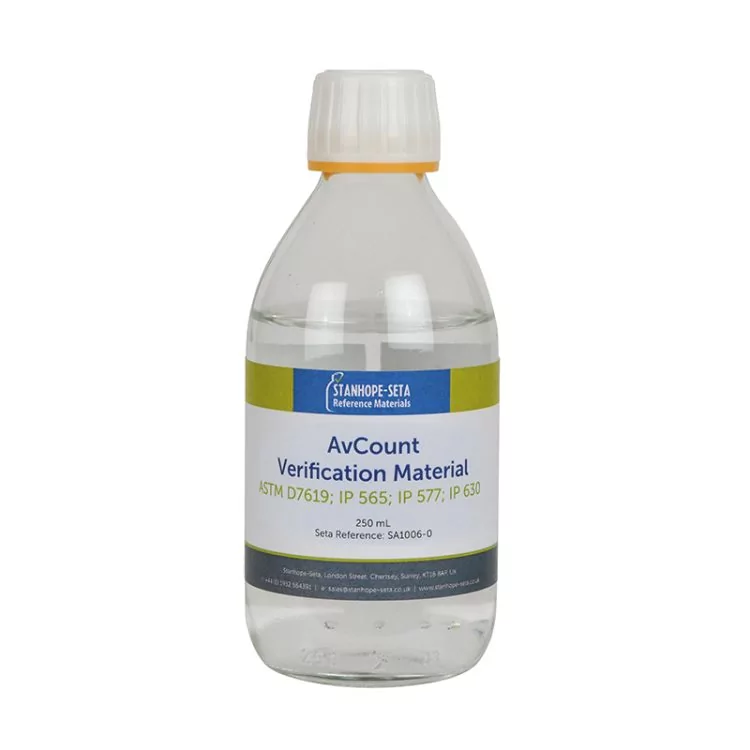

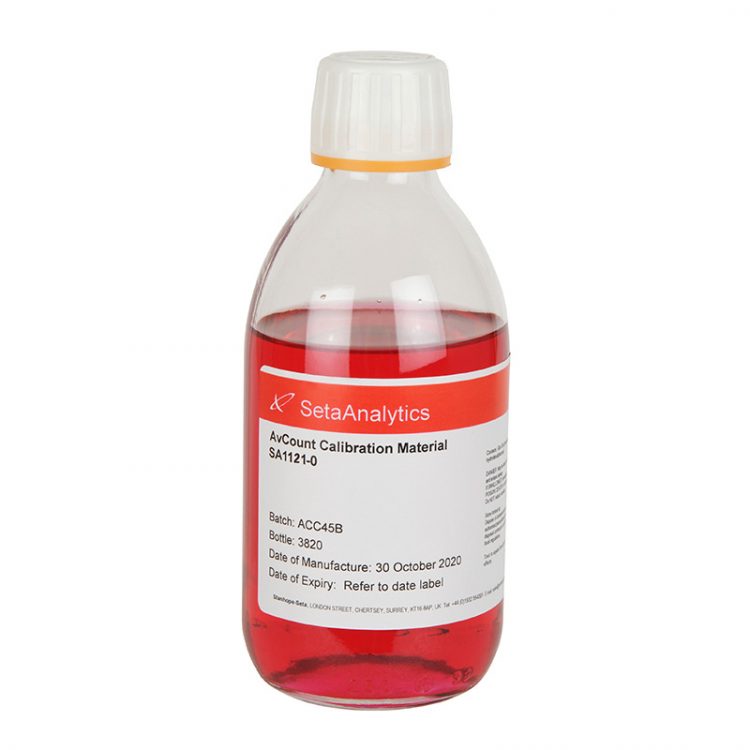

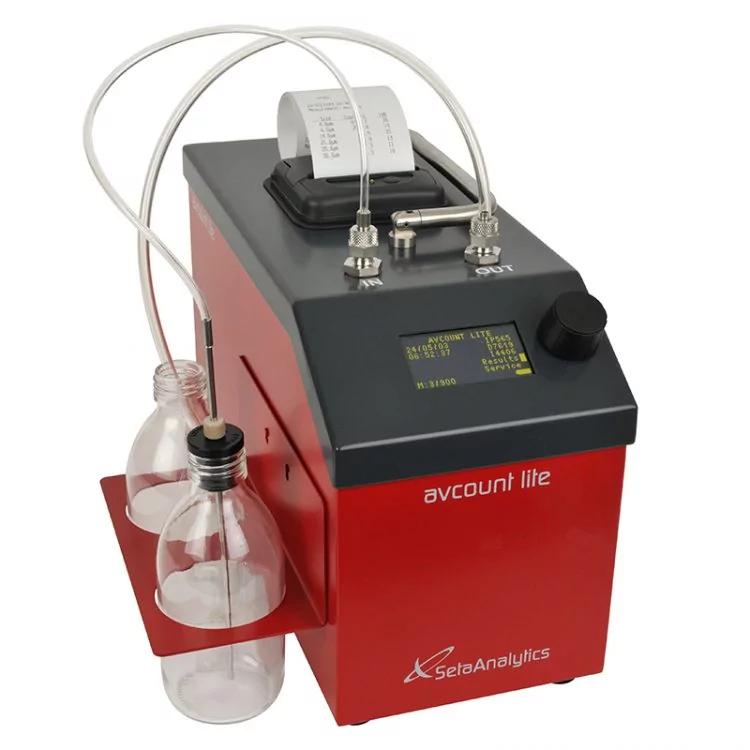

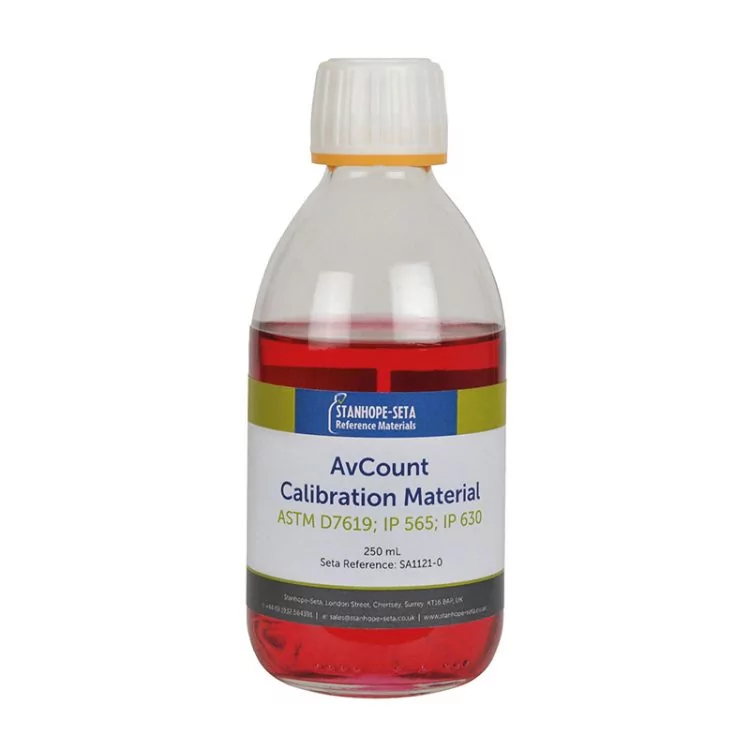

AvCount Lite utilises 16 point calibration. Calibration can be carried out either using NIST traceable standard solutions or by interfacing with a primary calibrated ‘Master’ AvCount Lite. Calibration can be carried out at a user site or at our authorised regional laboratories. Seta authorised training is required to perform a calibration. Verification can be performed using AvCount Verification Material.

ProTrend (SA1810-0) is supplied with the instrument and can report results to ISO 4406, NAS 1638 and SAE AS4059 (tables 1 and 2) cleanliness codes. Using the software, you can program other test methods and cleanliness codes with up to 16 size bands.

Details

IP 565 Determination of the level of cleanliness of aviation turbine fuels – portable automatic particle counter method
ASTM D7619 Method for counting and sizing particles in light and middle distillate fuels, and liquid bio fuels, by automatic particle counter
GJB 420-1987/420-A-1996/420B-2006 Fluids contamination testing
ASTM D7647 Standard test method for automatic particle counting of lubricating and hydraulic fluids using dilution techniques to eliminate the contribution of water and interfering soft particles by lght extinction
ISO 60970 Insulating liquids - Methods for counting and sizing particles
ISO 11500 Hydraulic fluid power - Determination of the particulate contamination level of a liquid sample by automatic particle counting using the light-extinction principle
ISO 4406 Hydraulic fluid power - Fluids - Method for coding the level of contamination by solid particles
IEC 60970 Insulating Liquids, Methods for Counting and Sizing Particles
JIS B 9932:2012 Calibration method of automatic particle counter for hydraulic pressure-liquid
JIS B 9933:2021 Hydraulic-solid particle contamination degree code display
JIS B 9934:2012 By automatic particle counting method using hydraulic pressure-light shielding principle Cleanliness measurement method
ASTM D6876 Standard Test Method for Particle Count in Mineral Insulating Oil using Automatic Optical Particle Counters

Details

Particle Size RangeISO 11171: 4µm(b) to >70µm(b)
Number of Measuring Channels15 when connected to a PC, 6 when used as a stand-alone
Counts Per Measurement (Max)50000/ml
Sample Viscosity (Max)200 mm2/s
Sample Temperature Range0 to 70 °C
Results600 internal, unlimited on PC
Pump Volume & Flow Rate10 ml aliquots @ 30 ml/min or timed
Total Sample Volume Used (typ)80 ml (includes rinse cycles) for ASTM D7647, 20 ml other methods
VoltageAutomatic particle counter: 12 Vdc, 2.5A (mains adaptor supplied 100 to 240 Vac, 50/60 Hz, 650mA) Pressure delivery unit: 24 Vdc, 2A (mains adaptor supplied 100 to 240 Vac, 50/60 Hz, 1A)
Size (HxWxD)50 x 32 x 28 cm
Weight16 kg
CCCN CodeTariff 90318020
