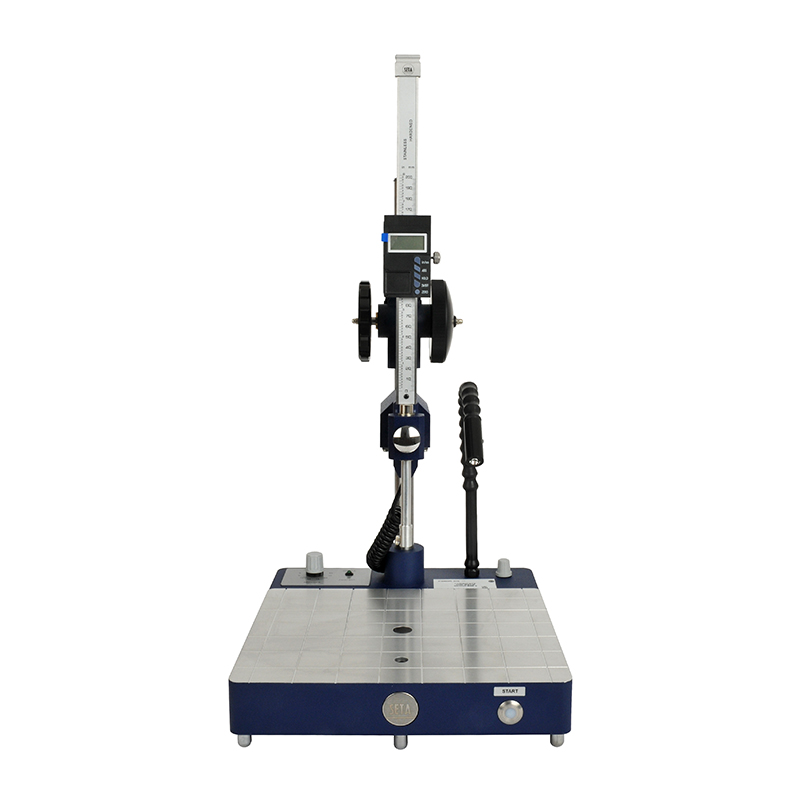

Seta Universal Penetrometer - 17190-3
A semi-automatic penetrometer with a range of 0 to 640 Pen (64 mm). Plunger release and retention is controlled by a solid state timer which can be set for penetration times of 5, 8, 10, 12, 30 and 60 seconds.
Features
- Penetration range 0 to 640 Pen (64 mm)
- 5, 8, 10, 12, 30 and 60 second timer settings
- Solid state timer
- Automatic plunger release and retention
- Flexi light
- Semi-automatic operation
- Provision for automatic sample contact detection
- Integral timer
Information
Details
The head is fitted with a two speed elevating mechanism for quick and precise positioning of the penetration tip. Penetration is shown on a precision digital measuring scale with push button zeroing possible at any stage.
The machined aluminium base is fitted with a flexible light with a dimmer switch, and an inbuilt spirit level.
Supplied with;
47.5 g plunger
50 g and 100 g plunger weights
Instruction manual
Details
ASTM D1831 | Standard test method for roll stability of lubricating grease |
---|---|
ASTM D5 | Standard Test Method for Penetration of Bituminous Materials |
ASTM D217 | Cone Penetration of Petrolatum |
ASTM D937 | Standard Test Method for Cone Penetration of Petrolatum |
ASTM D1321 | Standard test method for needle penetration of petroleum waxes |
ASTM D1403 | Standard test methods for cone penetration of lubricating grease using one-quarter and one-half scale cone equipment |
IP 49 | Penetration of Bituminous Minerals |
IP 50 | Determination of cone penetration of lubricating grease |
IP 179 | Determination of cone penetration of petroleum |
IP 310 | Determination of cone penetration of grease - One-quarter and one-half scale cone method |
IP 376 | Determination of needle penetration of petroleum wax |
BS 1377 | Methods of test oils for civil engineering purposes |
DIN 51 579 | Needle Penetration of Petroleum Waxes |
DIN 51 580 | Cone Penetration of Petroleum |
ISO 2137 | Cone Penetration of Petrolatum |
BS 2000-179 | Determination of cone penetration of petrolatum |
ASTM D7342 | Shear Stability of Lubricating Grease in Presence of Water (Water Stability Test) |
BS EN 1426 & BS 2000-49 | Bitumen and bituminous binders. Determination of needle penetration |
BS 2000-50 | Determination of cone penetration of lubricating grease |
BS EN 13880-2 | Hot applied joint sealants. Test method for the determination of cone penetration at 25°C |
Ph. Eur 2.9.9 | Measurement of consistency by penetrometry |
Details
Penetration Range | 0 to 640 Pen (64 mm) |
---|---|
Penetration Time | 5, 8, 10,12, 30, 60 second selectable |
Display | Digital 2 decimal places |
Voltage | 110/120 V and 220/240 V 50/60 Hz |
Power | 45 W |
Size (HxWxD) | 53 x 30 x 33 cm |
Weight | 8.3 kg |
CCCN Code | Tariff 90248000 |
Methods
Industries
Spares and accessories for Seta Universal Penetrometer - 17190-3

Seta ASTM-IP Standard Penetrometer Cone - 18051-0
View accessory
Seta ASTM-IP Optional Penetrometer Cone - 18050-0
View accessory

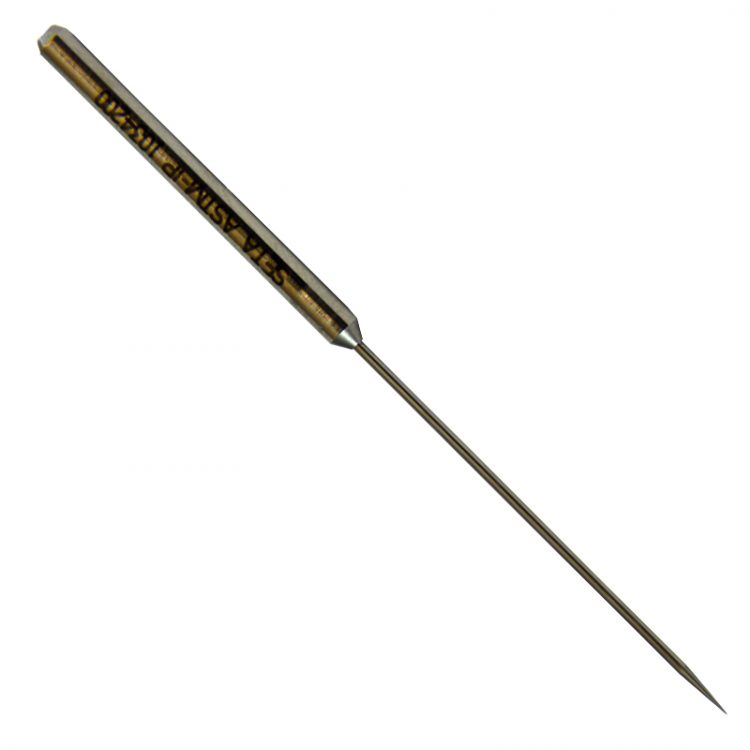

Seta Standard Penetration Needle - 18510-0
View accessory

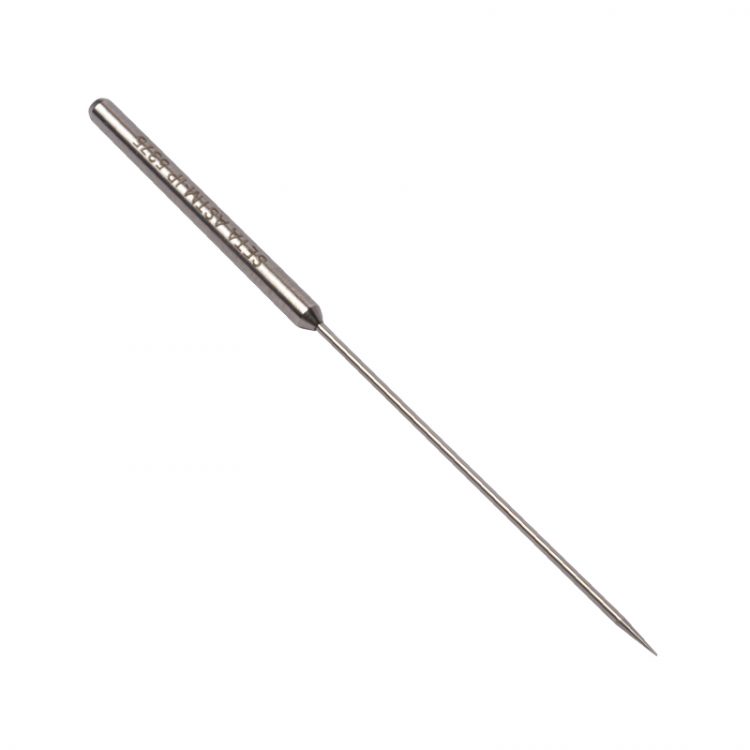

Seta Penetration Needle, pk 3 - 18500-0
View accessory

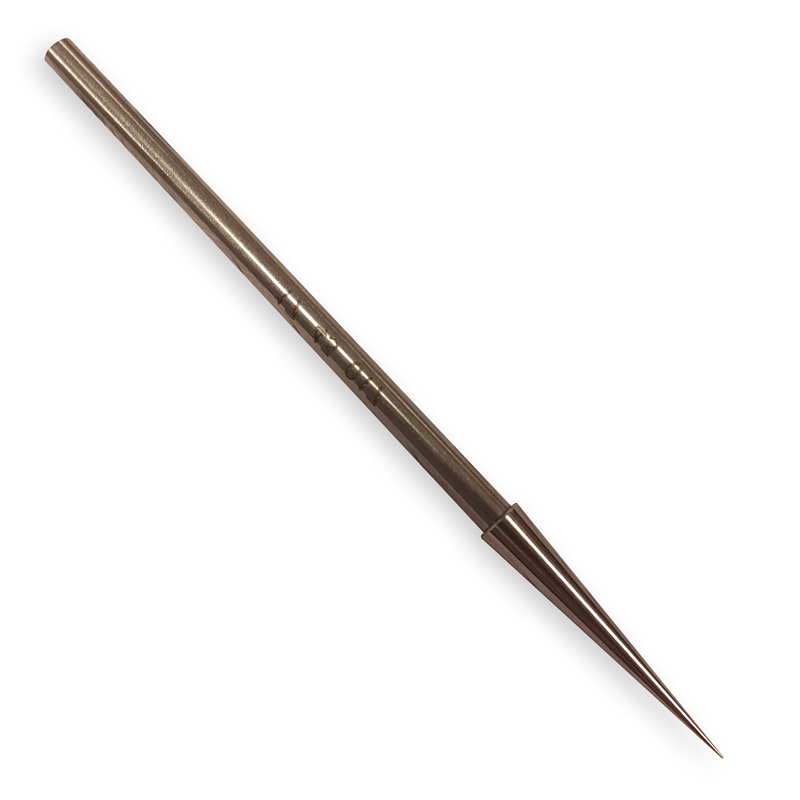

Seta Wax Penetration Needle - 18490-0
View accessory
Seta Brass Base Plate - 18481-0
View accessory
Seta Transfer Dish (pack of 2) - 18550-0
View accessory
Seta Sample Container (IP 49) (pack of 50) - 18540-0
View accessory
Seta Sample Container (Bitumen) (pack of 50) - 18530-0
View accessory
Seta Sample Container (Bitumen) (pack of 50) - 18470-0
View accessory

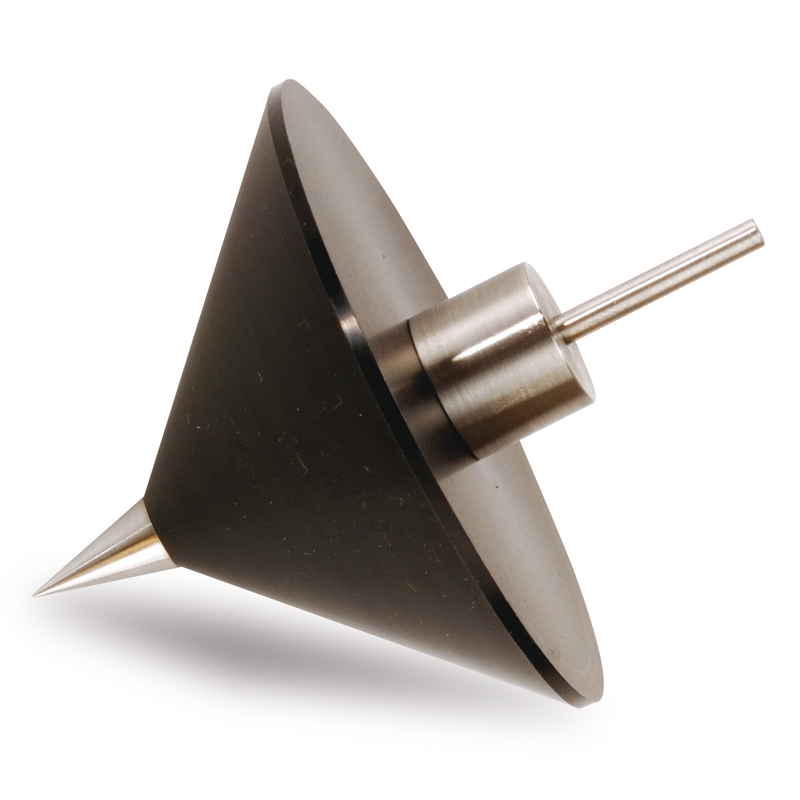

Seta ASTM-IP Standard Penetrometer Cone - 18140-0
View accessory

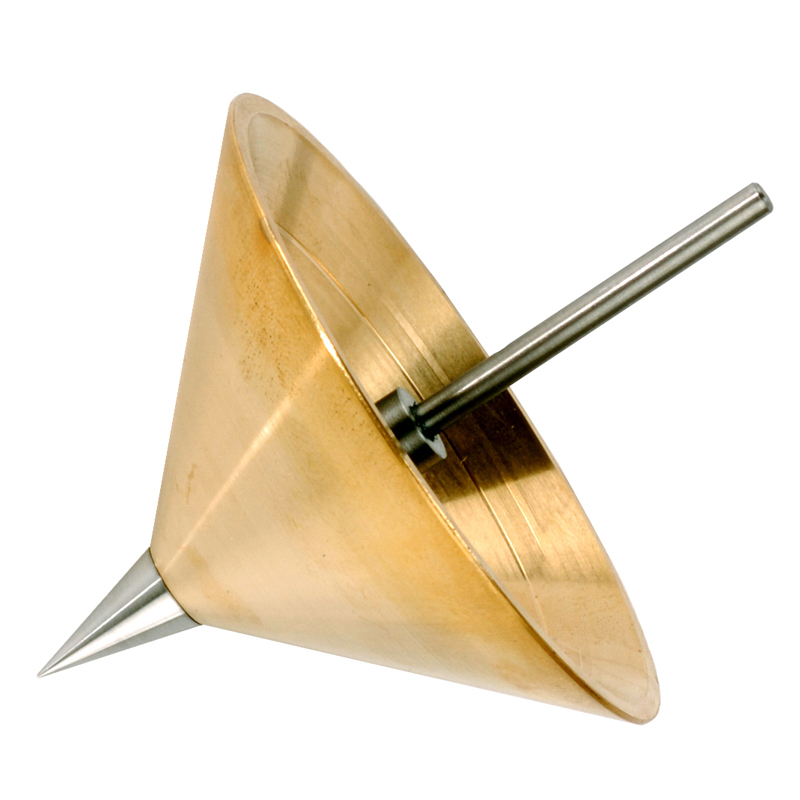

Seta ASTM-IP Optional Penetrometer Cone - 18000-0
View accessory
Seta Sample Container (Petrolatum) - 18120-0
View accessory
Seta Light-Weight Plunger - 17380-0
View accessory
Penetrator Kit No 3 - 18103-0
View accessory
Digital Stopwatch - 22750-3
View accessory
Seta Slip Cover (pack of 50) - 18570-0
View accessory
Sample Container (Bitumen) (pack of 1000) - 18535-0
View accessory
Transfer Dish with Coil - 18552-0
View accessory

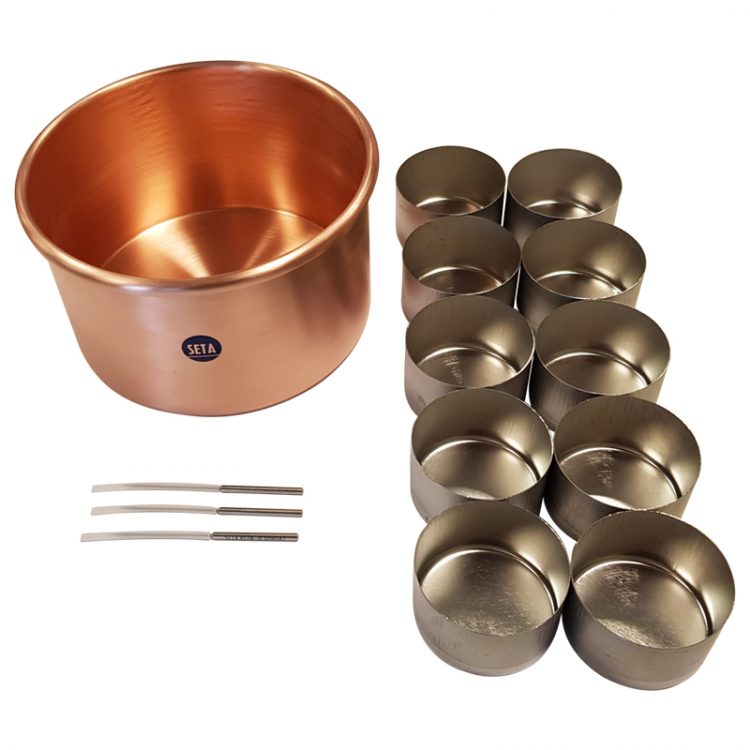

EN 1426 Kit - 18580-0
View accessory
Seta Ultra Light-Weight Plunger - 17950-2
View accessory
Grease Spatula - 17511-0
View accessory
Manual Grease Worker – Brass Cup - 17510-2
View product
Seta Standard Penetration Needle (uncertified) - 18520-0
View accessory
Seta Half-Scale Penetrometer Cone - 18060-0
View accessory
Thermometer Digital: Precision -199 to 199 °C - 51000-0
View accessory
Seta Water Bath - 18200-6
View product
Seta Quarter-Scale Cone - 17910-2
View accessory

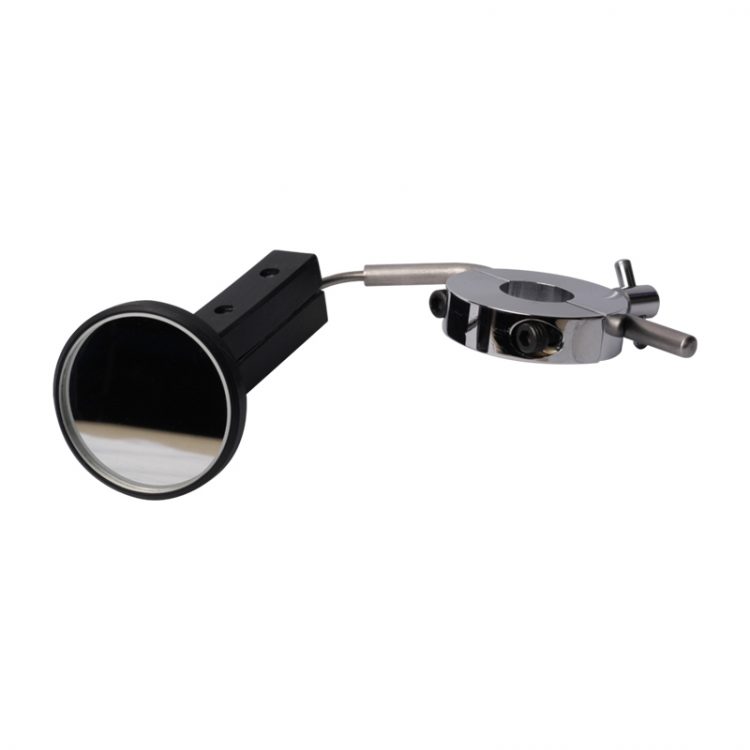

Mirror and Clamp - 17120-0
