Product

Seta Ash Furnace - 99220-2

Methods
ASTM D482
ASTM D874
ASTM D3174
ASTM D4422
IP 4
IP 163
BS EN ISO 6245 & BS 2000-4
ISO 1171

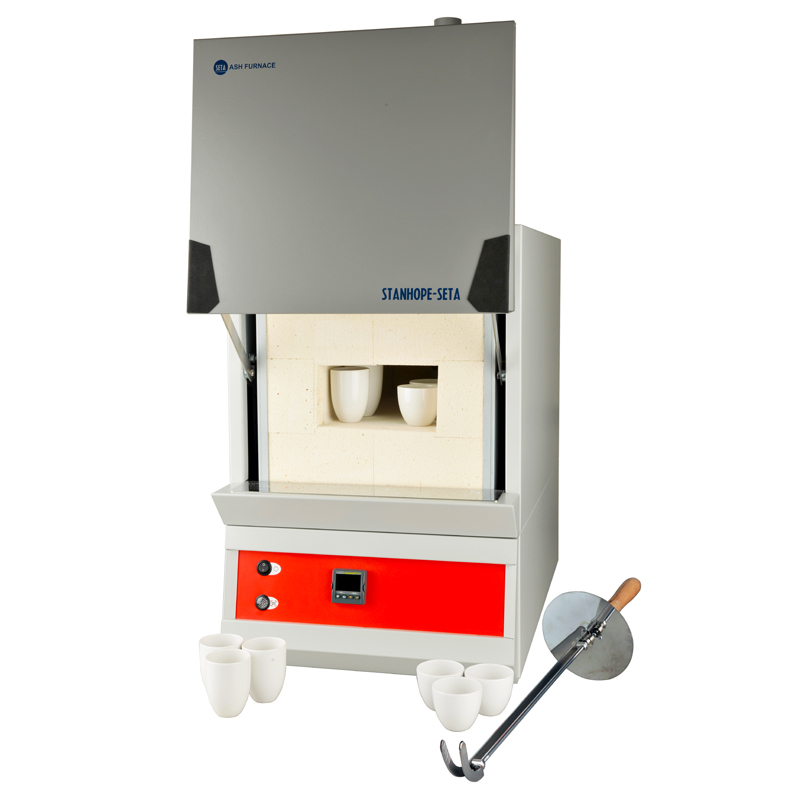

The Seta Ash Furnace has a maximum temperature of 1100 °C, it incorporates a pre-heated airflow system and extended chimney.

The furnace is supplied with an Inconel tray complete with detachable handle, it features a door safety power cut-off switch as well as over-temperature cut out protection. The chambers of the furnace are ceramic muffles wound with resistance wire.

The digital temperature controller uses PID (Proportional Integral Derivative) temperature control to give excellent temperature control when properly set. This type of control uses a complex mathematical control system to adjust the power being sent to the elements and to hold the furnace at the desired temperature.

Seta Ash Furnace - 99220-2

Features

  • Pre-heated airflow system and extended chimney
  • Max temperature 1100 °C with over-temperature cut-out
  • Door safety power cut off switch

Information

Details

Supplied with;
1 x laboratory tongs
1 x gloves

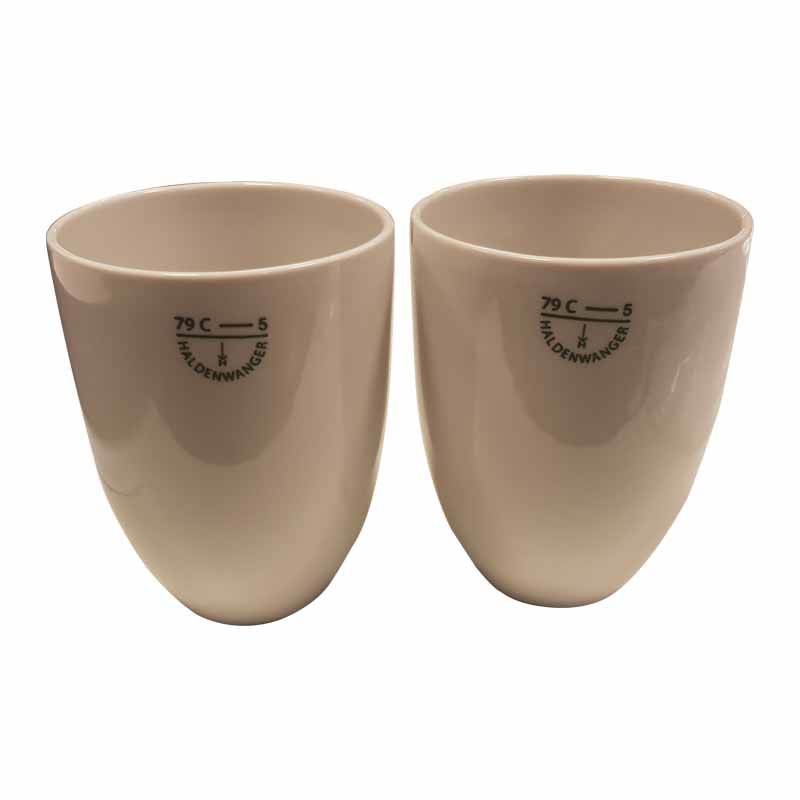

5 x 100 ml tall form porcelain crucibles
5 x 120 ml tall form porcelain crucibles

Details

ASTM D482 Standard test method for ash from petroleum products
ASTM D874 Sulfated Ash from Lubricating Oils and Additives
IP 163 Determination of Sulphated Ash
IP 4 Petroleum products - Determination of ash
BS EN ISO 6245 & BS 2000-4 Methods of test for petroleum and its products. BS 2000-4: Determination of ash
ASTM D3174 Standard Test Method for Ash in the Analysis Sample of Coal and Coke from Coal
ASTM D4422 Standard Test Method for Ash in Analysis of Petroleum Coke
ISO 1171 Solid mineral fuels — Determination of ash

Details

Capacity7 litres
Chamber size (HxWxD)9 cm x 17 cm x 44.5 cm
Power3.9 kW
Voltage220/240 V, 50/60 Hz
Weight63 kg
CCCN CodeTariff 85142010
