chevron_rightSeta Semi-Automatic Cleveland Open Cup Flash Point Tester - 13811-3
Methods
ASTM D92
IP 36
BS DIN EN ISO 2592
The tester is equipped with an electrically heated cup with a variable control to set temperature rise rate. The test flame is swept across the surface of the heated sample by a motor driven arm actuated by a push button. The user observes the cup to determine whether a flash has occurred and notes the temperature shown on a thermometer, suspended in the sample.
Learn more about flash point testing and which instrument you should be using >

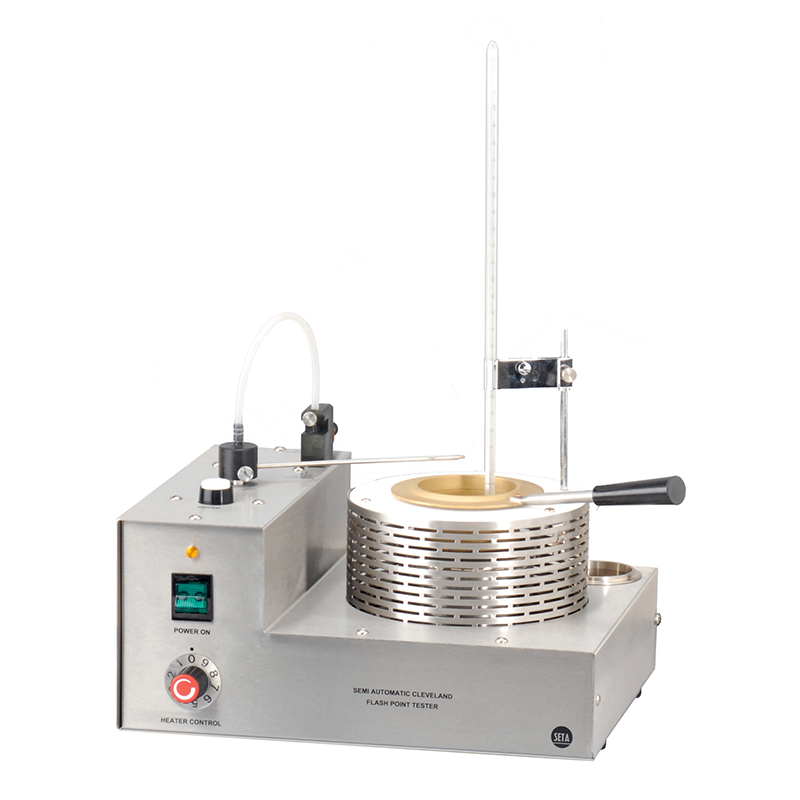

Seta Semi-Automatic Cleveland Open Cup Flash Point Tester - 13811-3
Features
- Easy clean stainless steel case
- Temperature Range: Ambient to 370°C
Additional Information
Either mains or Portable Gas Tank (13667-0) can be connected.
Supplied with; instruction manual and mains lead.
| Temperature range | Ambient +10 to 370 °C |
|---|---|
| Power | 600 W maximum |
| Ramp rate | Variable, manually controlled |
| Voltage | 220/240 V, 50/60 Hz |
| Size (HxWxD) | 32 x 31 x 29 cm |
| Weight | 6.5 kg |
| CCCN Code | Tariff 90268020 |
Industries
Methods
ASTM D92
IP 36
BS DIN EN ISO 2592
| ASTM D92 | Standard test method for flash and fire points by cleveland open cup |
|---|---|
| IP 36 | Determination of flash and fire points - Cleveland open cup method (ISO 2592:2000) |
| BS DIN EN ISO 2592 | Determination of flash and fire points. Cleveland open cup method |
