Product

Distillation 500 ml Flask Heater - 24410-5

Methods
ASTM D95
ASTM D244
ASTM D4006
ASTM E123
IP 74
IP 291
IP 358
BS 756
BS 2000-74 & ISO 3733
BS EN ISO 9029 & BS 2000-358 & ISO 9029

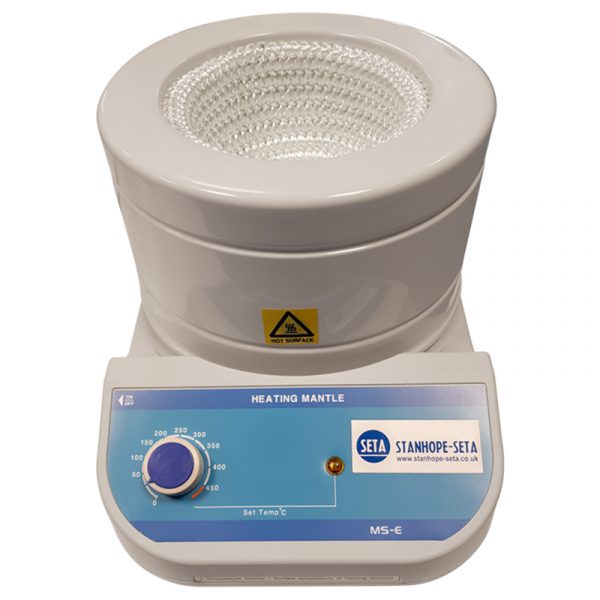

The Seta Distillation Flask Heater is a regulated heating mantel which has the capacity to accommodate a 500 ml flask. It is a general purpose heating mantel designed for laboratory procedures that require precise temperature control.

The heating element is made of glass fibre which minimises damage to the flask in case of a slight impact between flask and heater. Heating efficiency is promoted greatly with good contact between the heating element and the glass vessel.

Temperature is adjusted by a temperature control dial. A heater power indicator will illuminate when power is applied to the heater element. Once a stable temperature is achieved, the indicator will flash as it applies bursts of power to maintain the temperature.

Note; clamp, bosshead and glassware available separately.

Supplied with: Support rod, mains lead and user manual.

Distillation 500 ml Flask Heater - 24410-5

Features

  • Temperature range up to 450 °C
  • Accepts 500 ml flasks
  • 260 W Mantle type heater
  • Integral energy regulator
  • Complete with support rod

Information

Details

ASTM D95 Standard test method for water in petroleum products and bituminous materials by distillation
ASTM E123 Standard Specification for Apparatus for Determination of Water by Distillation
IP 291 Water Content of Bitumen Emulsions (Dean and Stark Apparatus)

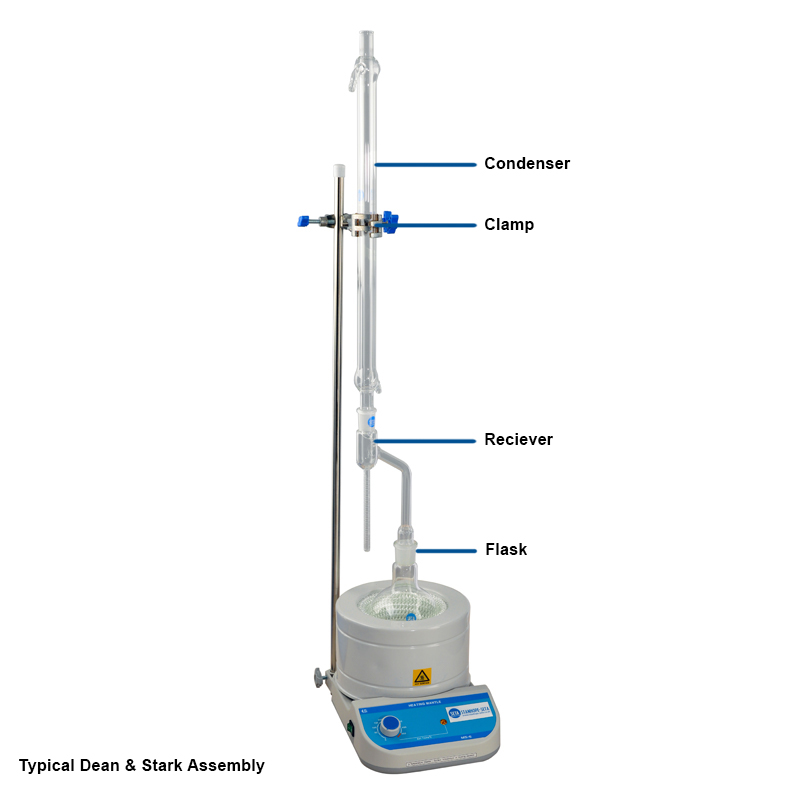

BS 756 Specification for Dean and Stark apparatus
ASTM D4006 Standard test method for water in crude oil by distillation
IP 358 Crude petroleum - Determination of water - Distillation method (ISO 9029:1990)
ASTM D244 Determination of Saybolt, Engler or Redwood viscosities
BS EN ISO 9029 & BS 2000-358 & ISO 9029 Crude petroleum. Determination of water. Distillation method
BS 2000-74 & ISO 3733 Methods of test for petroleum and its products. Petroleum products and bituminous materials. Determination of water. Distillation method
IP 74 Standard test method for water in petroleum products and bituminous materials by distillation

Details

Voltage110/120 V or 220/240 V, 50/60 Hz
Power260 W
Size (HxWxD)162 x 192 x 276 mm
Weight3.5 kg
CCCN CodeTariff 84195080
