Product

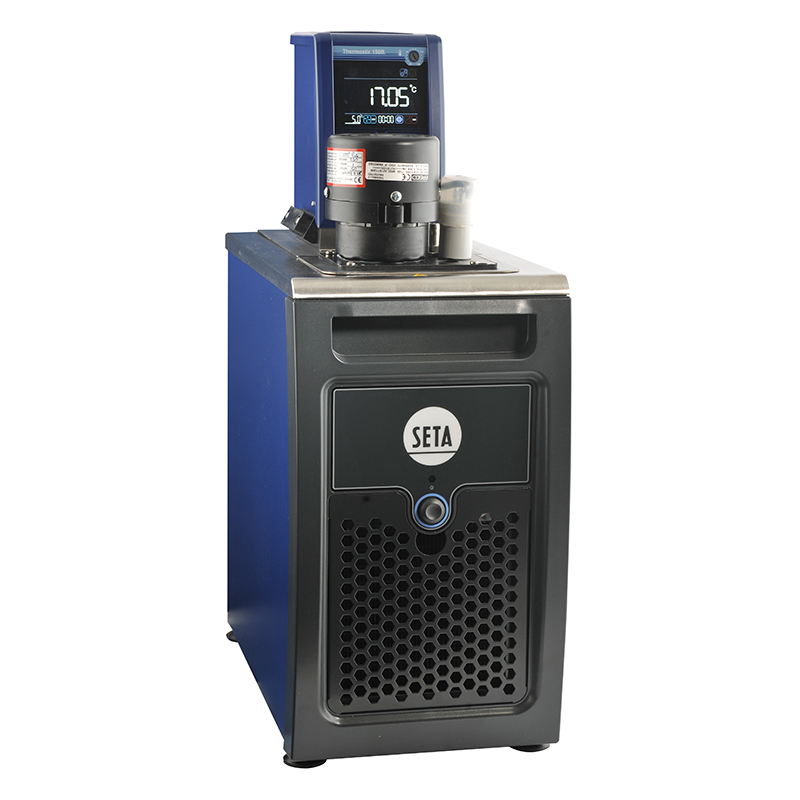

Cryostat (-20 °C) - 34006-3

Methods
BS 3900-A9 & BS 6664-2 & ISO 1523
BS EN ISO 13736 & BS 2000-170

A small footprint, low temperature bath with booster pump for increased flow of chilled water for external cooling applications.

Comprises a Mini Low Temperature Bath Circulator (99300-4) with a vertical turbine pump.

Supplied with: mains lead and instruction manual.

Note: supplied excluding fittings.

Cryostat (-20 °C) - 34006-3

Features

  • Temperature range -20 to 120 °C
  • Booster pump for 9 litre/min flow
  • Adjustable over-temperature safety limit

Information

Details

BS EN ISO 13736 & BS 2000-170 Methods of test for petroleum and its products. Determination of flash point. Abel closed cup method
BS 3900-A9 & BS 6664-2 & ISO 1523 Methods of test for paints. Determination of flashpoint (closed cup equilibrium method)

Details

Temperature range-20 to 150 °C
Temperature stability0.1 °C
Bath capacity6 litres
Flow rate9 litres/min at 100 kPa
Pressure100 kPa (14.5 psi)
Power2.2 kW (maximum heat)
Voltage110/120 V, 50/60 Hz 220/240 V, 50/60 Hz
Size (HxWxD)64 x 24.5 x 43 cm
Weight29 kg
CCCN CodeTariff 90269000
