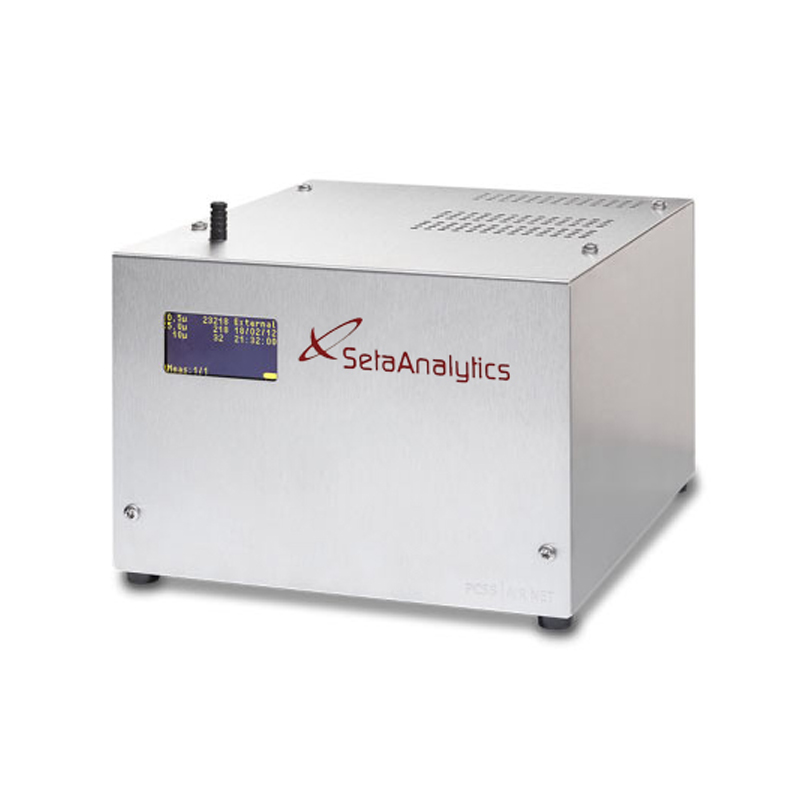

AvCount Air Particle Counter - SA1400-0

Methods
ISO 14644
ISO 21501

AvCount Air provides reliable results for determining the particle concentration in air, for applications such as clean rooms, laboratories and the monitoring of air cleanliness in hospitals.

• Simple operation
• 3 measuring channels
• 6 particle size classes
• Programmable via PC

With a simple test procedure and user friendly features, operator skill or expertise is kept to a minimum.

AvCount Air can hold up to 3 test methods with custom methods created on a PC before being uploaded.

Test progress and results for up to 6 size bands are displayed as cumulative particles/ml.

AvCount Air Particle Counter - SA1400-0

Features

  • Cumulative Particles/ml
  • 0.21 µm to 10 µm
  • Simple operation
  • High visibility screen
  • Stand-alone or PC controlled
  • Programmable via PC

Additional Information

Results Analysis
The AvCount Air can be controlled from a personal computer via the USB port. This allows the configuration of test parameters, test control and download of data. It also allows operation of a single device or multiple instruments simultaneously. The measured data is displayed and can be retrieved from the data memory later. An Excel template is available for exporting the data.

Calibration & Verification
Calibration can be carried out either using NIST traceable standard solutions or by interfacing with a primary calibrated Master AvCount Air. Calibration can be carried out at a user site or at our authorised regional laboratories.
Particle Size Range0.21µm to 10µm
Number of Measuring Channels3 (16 via USB)
Particle Concentration250,000 P/sec
Flow Rate28.3 l/min
Ambient Temperature Range5 to 40 °C
Air Temperature Range0 to 70 °C
Results600 internal, unlimited via USB
SoftwareProtrend via USB
ConnectivityVia ethernet
Voltage240 Vac +/-10%, 50Hz, 1A
Size (HxWxD)150 x 215 x 260 cm
Weight5 kg
CalibrationISO 21501 - NIST traceable
CCCN CodeTariff 90318020

Methods

ISO 14644
ISO 21501
ISO 21501 Determination of particle size distribution - single particle light interaction methods
ISO 14644 Cleanrooms and associated controlled environments
