Wick Extraction Apparatus - 10425-0

Methods
ASTM D1322
IP 57

For use with Seta Smoke Point Apparatus (10400-0).

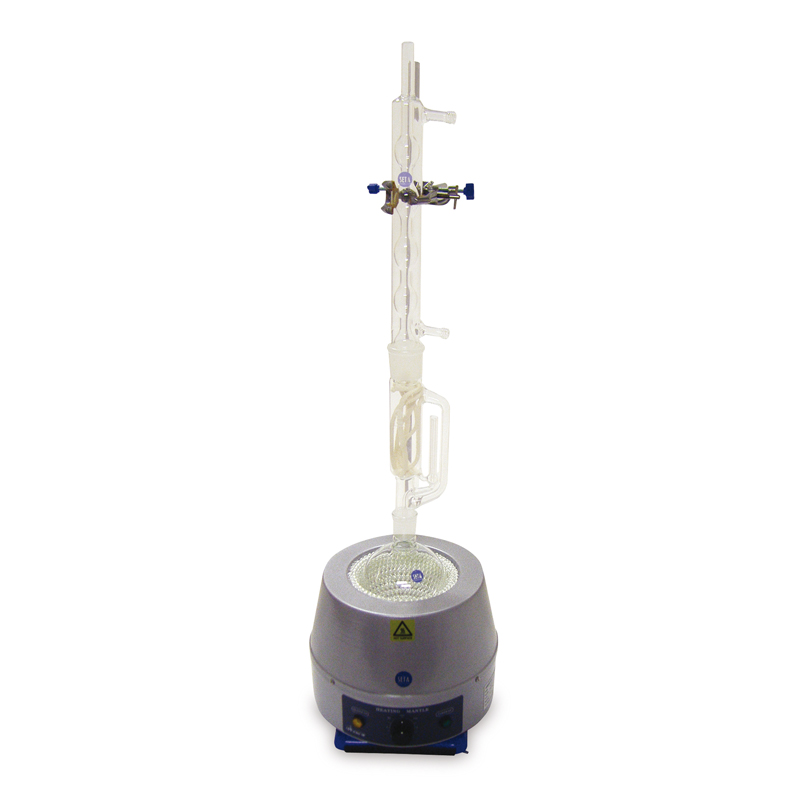

Wick Extraction Apparatus - 10425-0

Additional Information

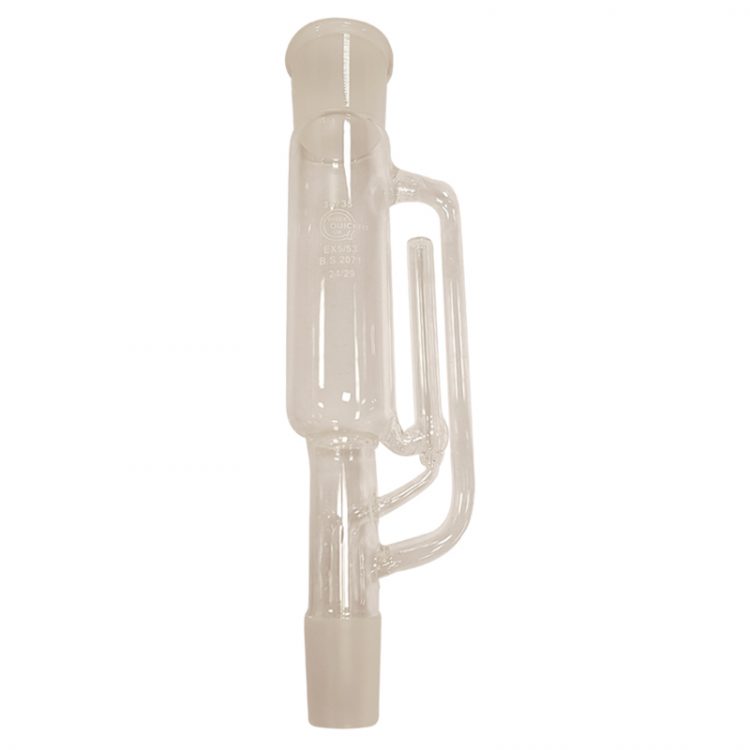

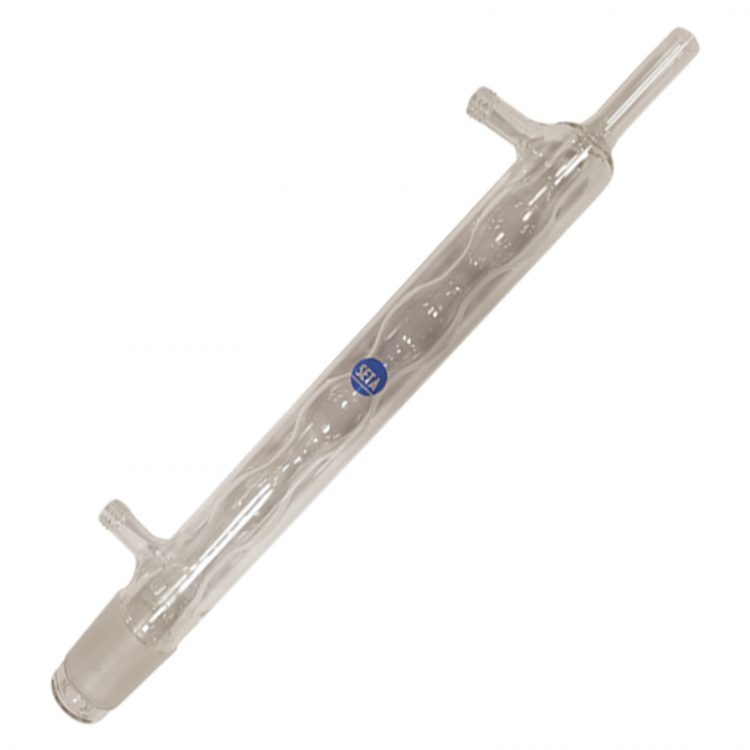

Suitable for use in accordance with ASTM D1322 and IP 57 test procedures. Comprises 60 ml Soxhlet extractor, condenser, 500 ml glass flask, flask heater, stand and clamp.

Note: An explosion protected oven is required for drying the wicks at 100 °C, this is not currently available from Stanhope-Seta. A dessicator is required for storing the wicks prior to use, Desiccator 220 mm and Disc (99205-0) is suitable.

Voltage110/120 V, 50/60 Hz 220/240 V, 50/60 Hz
Power200 W
Size (HxWxD)45 x 30 x 15 cm
Weight3 kg
CCCN CodeTariff 90279080

Methods

ASTM D1322
IP 57
ASTM D1322 Standard test method for smoke point of kerosine and aviation turbine fuel
IP 57 Petroleum products - Determination of the smoke point of kerosine
