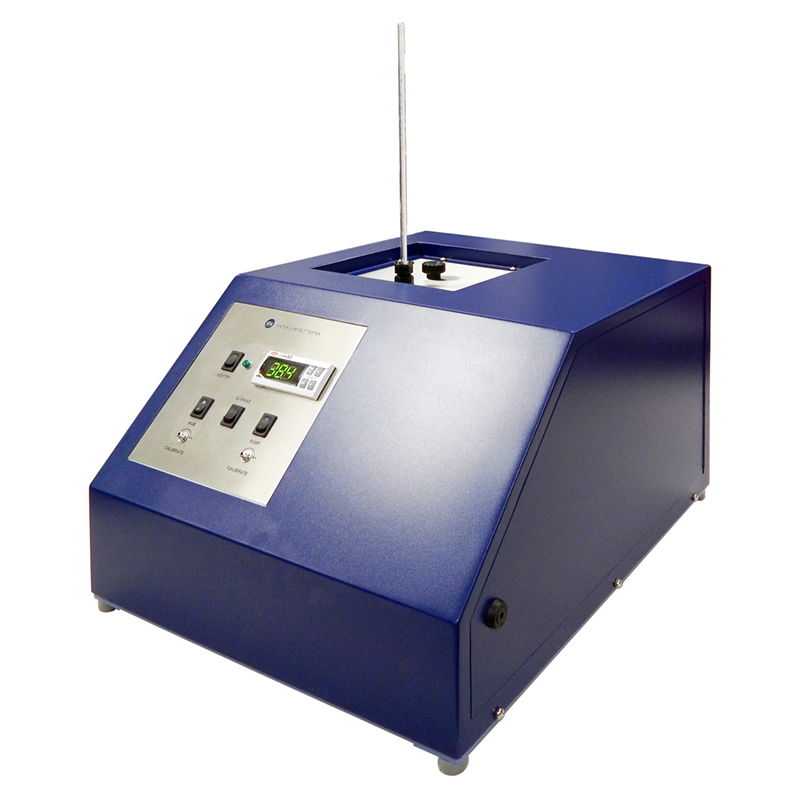

Seta Water Washout Tester - 19610-4
Methods
ASTM D1264
IP 215
DIN 51 807
ISO 11009
The Seta Water Washout Tester is used to evaluate the resistance of a lubricating grease from a bearing to washout by water.
Seta Water Washout Tester - 19610-4
Features
- New case design with large access panels for test hub and pump
- Recirculating bypass valve for pre-heating.
- Rapid warm up time
- Fully removable pump for servicing
- Integral bath drain
- Separate electronics compartment
- Easy to calibrate
Additional Information

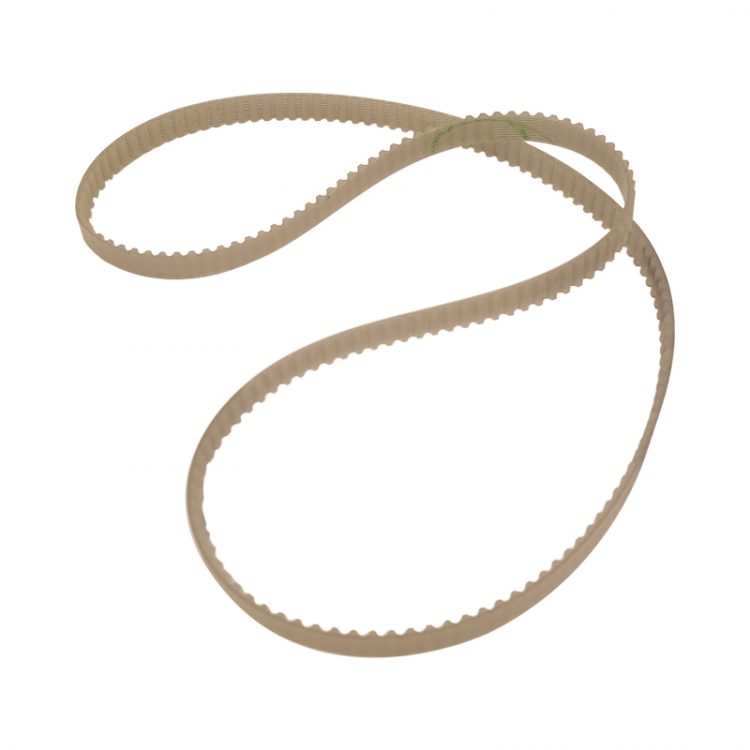

The test bearing is mounted on a hub, and rotated by an electric motor and toothed belt at 600 rev/min. A peristaltic pump draws heated water from the tank, through a filter, and sprays it, via a 1 mm capillary, onto the face of the bearing at a flow rate of 300 ml/min. The temperature of the water is digitally controlled in the range of ambient to 80 °C. The water containing washed out grease is collected in the tank, filtered and recycled. A drain tap allows the tank to be emptied at the end of a test.
The front panel has controls for water temperature, fine adjustment of water flow rate and bearing rotational speed, and a jet bypass switch to allow pre-heated water to circulate without passing through the jet.
Supplied with;
A test bearing for laboratory commissioning
5/32 inch and 2.5 mm Allen key screwdrivers
Instruction manual
| Bearing Rotational Speed | 600 ±30 rev/min |
|---|---|
| Tank Capacity | 750 ml |
| Temperature Range | Ambient to 80 °C |
| Water Flow Rate | 5 ml/sec |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz (switchable) |
| Power | 750 W |
| Size (HxWxD) | 320 x 400 x 500 mm |
| Weight | 30 kg |
| CCCN Code | Tariff 90318080 |
Methods
ASTM D1264
IP 215
DIN 51 807
ISO 11009
| ASTM D1264 | Standard test method for determining the water washout characteristics of lubricating greases |
|---|---|
| IP 215 | Determination of water washout characteristics of lubricating grease |
| ISO 11009 | Water Washout Characteristics |
| DIN 51 807 | Water Washout Characteristics |
