Vacuum Pump and Regulator - 19725-2
Methods
ASTM D4807
ASTM D5452
ASTM D6217
IP 415
IP 423
IP 440
EN 12662

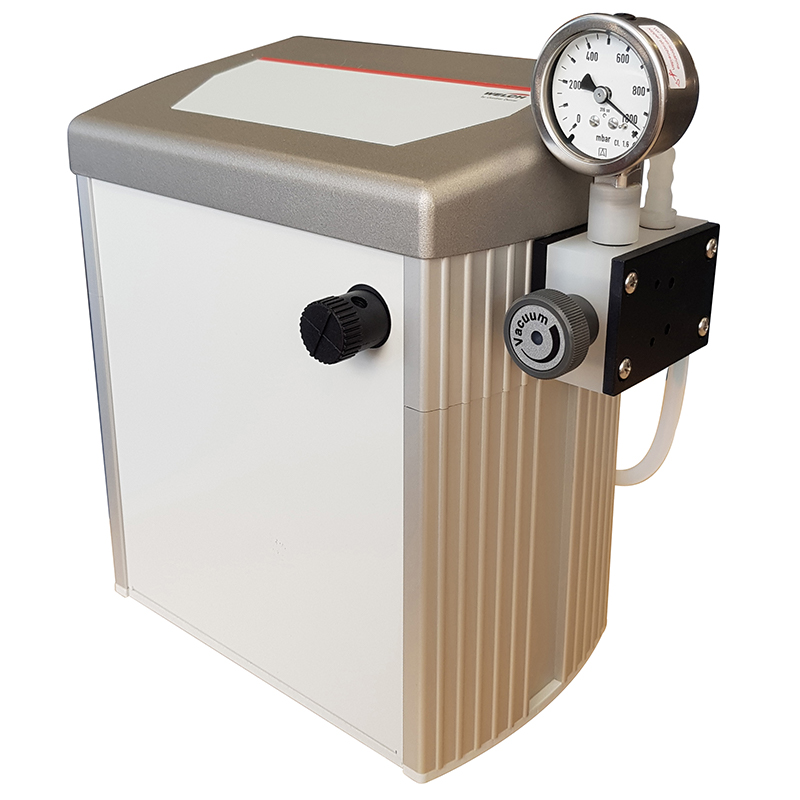

A chemical duty oil-free diaphragm vacuum pump suitable for use for a wide range of laboratory applications. The built in pump uses a powerful motor and chemical resistant wetted materials including PTFE for long service intervals.
The pump has a maintenance-free drive system designed for continuous operation and proven long diaphragm life, along with minimal operation vibration and quiet running. The regulator / gauge allows vacuum regulation from atmospheric pressure down to 5 mbar whilst being able to monitor the vacuum level on the connected dial gauge. Suitable for applications such as vacuum filtration and gas sampling.
Vacuum Pump and Regulator - 19725-2
Additional Information
| Max Pressure DIN 28432 | 5 mbar |
|---|---|
| Pumping Speed | 15 litres/Minute |
| Power | 90/260 V 50/60 Hz |
| Weight | 6 kg |
| Size (HxWxD) | 27.7 cm x 23.5 cm x 14 cm |
| CCCN Code | Tariff 84141089 |
Methods
ASTM D4807
ASTM D5452
ASTM D6217
IP 415
IP 423
IP 440
EN 12662
| IP 440 | Liquid petroleum products - Determination of contamination in middle distillates |
|---|---|
| EN 12662 | Liquid petroleum products. Determination of total contamination in middle distillates, diesel fuels and fatty acid methyl esters |
| ASTM D5452 | Particulate Contamination in Aviation Fuels by Laboratory Filtration |
| ASTM D6217 | Standard Test Method for Particulate Contamination in Middle Distillate Fuels by Laboratory Filtration |
| IP 415 | Determination of particulate content of middle distillate fuels |
| IP 423 | Determination of particulate contaminant in aviation turbine fuel |
| ASTM D4807 | Test Method for Sediment in Crude Oil by Membrane Filtration |
