Vacuum Pump - 22422-6
Methods
ASTM D5188
ASTM D5191
ASTM D6377
ASTM D6378
IP 34
IP 481
EN 13016-1
EN 13016-3
Maximum vacuum 2 x 10^-2 mbar.
For use with the Setavap 2 Vapour Pressure Tester (81000-2).
Vacuum Pump - 22422-6
Features
- High vacuum
- Two stage
- Non-pulsating (rotary vane)
- Gas ballast valve
- Oil mist filter
Additional Information

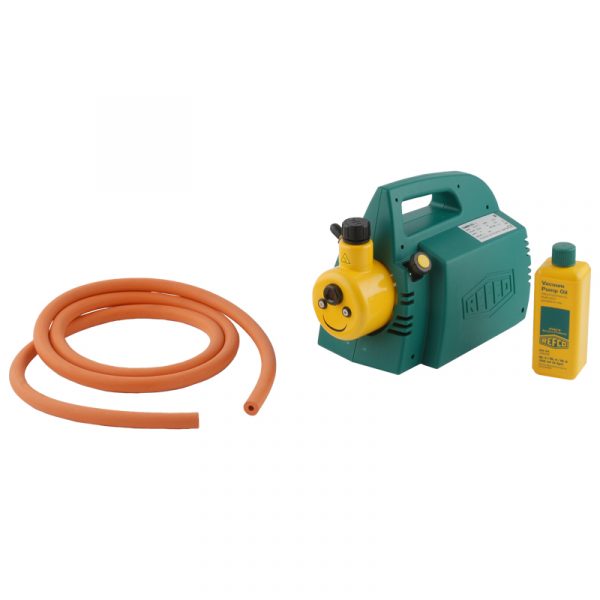

Supplied with; tubing, lubricating oil, oil mist filter, and instruction manual.
| Maximum vacuum | 1 x 10^-2 mbar |
|---|---|
| Maximum flow | 42 litres/min |
| Power | 120 W |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Size (HxWxD) | 30 x 40 x 25 cm |
| Weight | 7 kg |
| CCCN Code | Tariff 90269000 |
Methods
ASTM D5188
ASTM D5191
ASTM D6377
ASTM D6378
IP 34
IP 481
EN 13016-1
EN 13016-3
| ASTM D5191 | Standard test method for vapor pressure of petroleum products (mini method) |
|---|---|
| ASTM D5188 | Standard test method for vapor-liquid ratio temperature determination of fuels (evacuated chamber method) |
| IP 481 | Determination of air saturated vapour pressure (ASVP) of crude oil |
| IP 34 | Determination of flash point - Pensky - Martens closed cup method (ISO 2719:2002) |
| ASTM D6378 | Determination of vapor pressure of petroleum products, hydrocarbons, and hydrocarbon-oxygenate mixtures (triple expansion method) |
| ASTM D6377 | Determination of Vapor Pressure of Crude Oil: VPCRx?(Expansion Method) |
| EN 13016-3 | Determination of vapour pressure and calculated dry vapour pressure equivalent (DVPE) (Triple Expansion Method) |
| EN 13016-1 | Determination of air saturated vapour pressure (ASVP) and calculated dry vapour pressure equivalent (DVPE) |
