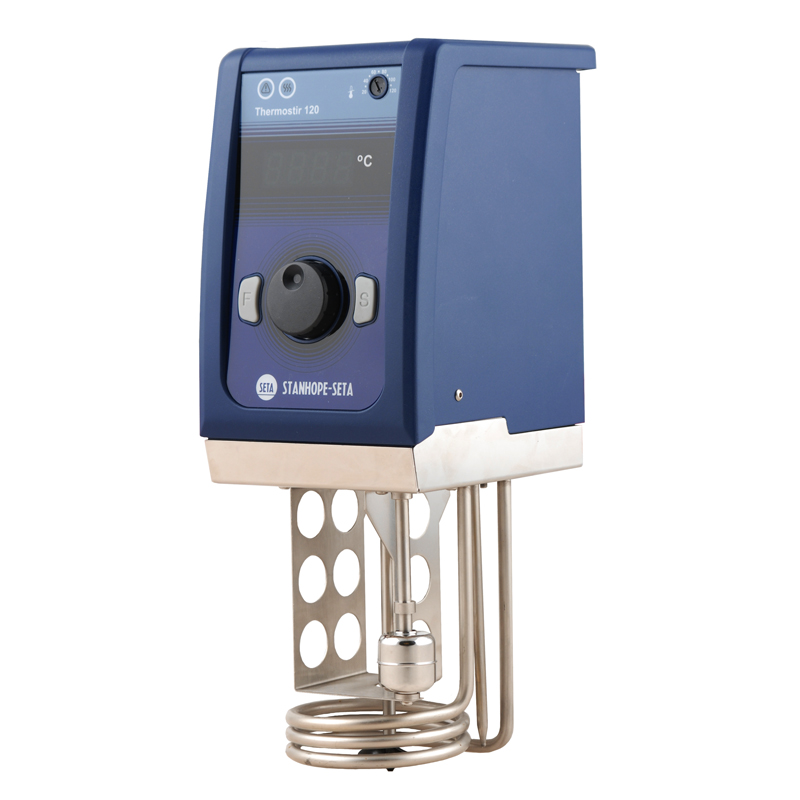

Thermostir - 15156-2
The Thermostir 120 provides simple, precise digital temperature control in the range between ambient +5 °C to 120 °C with a setting resolution of 0.1 °C.
It has an easy to use rotary dial and two function keys for quick temperature setting and menu navigation.
The thermostir is protected against over-heating by an independent over-temperature cut-out which is user adjustable via the over-temperature dial.
Thermostir - 15156-2
Features
- Integral pump for external fluid circulation
- Easy to use rotary dial and two function keys
- setting and menu navigation
- Easy to view four digit LED display
- Three programmable temperature presets
- Low liquid protection and over temperature cut-out
- Countdown timer and visual alarm
- Two point user calibration facility for optimum accuracy at the required operating temperature
Additional Information
| Temperature Range | Ambient +5 to 120 °C |
|---|---|
| Display Resolution | 0.1 °C, 4 Digit LED |
| Temperature Stability | ± 0.5 °C (DIN 12876) |
| Temperature Uniformity | ± 0.1 ° C (DIN 12876) |
| Pump Head Pressure, Max | 210 mBar (no flow) |
| Pump Head Flow Rate | 16 l/min |
| Voltage | 220/240 Vac 50/60 Hz |
| Weight | 2.3 kg |
| Size (HxWxD) | 333 x 141 x 172 mm |
| CCCN Code | Tariff 84198998 |
