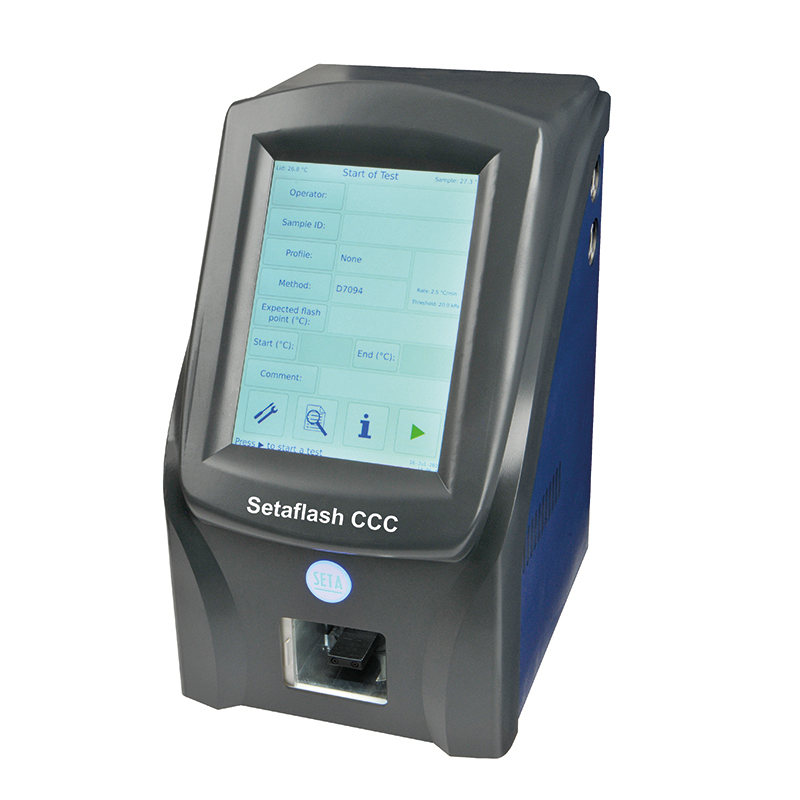

Setaflash CCC Continuously Closed Cup Flash Point Tester - 35600-0

Details

Designed for operator safety:
Safety is fundamental to closed cup flash point testing. The Setaflash CCC includes multiple layers of protection:

• Optical fire detection with automatic inert gas deployment
• Built-in fire extinguisher, with manual activation available at any time
• Pre-test safety arcs warn of ignition risks with highly volatile samples
• Over-temperature cut-out protects the instrument from unsafe conditions
• Independent emergency stop button can be positioned at a safe distance from the instrument

These features provide confidence when testing volatile or hazardous samples in busy laboratory environments.
Precision, accuracy and compliance:
As an automatic flash point tester, the Setaflash CCC minimises operator influence and ensures consistent results through:

• Fully automated flash point determination
• Automatic barometric correction using an internal pressure sensor
• Password-protected calibration mode for performance verification
• Magnetic stirrer detection to confirm correct test conditions
• Statistical Quality Control (SQC) for monitoring repeatability, mean, standard deviation and compliance with ASTM D6299

This ensures confidence in results while supporting laboratory accreditation requirements such as ISO 17025.
High throughput flash point testing
To maximise laboratory productivity, the Setaflash CCC includes:

• Quick Test function that pre-heats the instrument before sample introduction
• Rapid Peltier-assisted cooling after each test
• Customisable test profiles, eliminating repeated data entry
• Easy-to-clean removable cup, reducing turnaround time between samples

Together, these features allow faster testing without compromising accuracy or safety.
Intuitive touchscreen operation
All routine functions are accessed through a large industrial colour touchscreen allowing operators to:

• Enter test parameters quickly
• Monitor real-time test progress
• View graphical results and trends
• Export data to LIMS, USB, network or QR code

Optional VNC remote access allows viewing results and instrument setup from a connected PC.
Why choose the Setaflash CCC?

• Trusted Stanhope-Seta flash point expertise
• Fully compliant continuously closed cup methodology
• Minimal sample volume reduces risk and waste
• Advanced safety features as standard
• Designed for modern, accredited laboratories
