chevron_rightSeta Cloud and Pour Point Cryostat - 93531-8
Methods
ASTM D97
ASTM D2500
ASTM D5853
IP 15
IP 219
IP 441
BS 2000-15 & ISO 3016
BS EN 23015 & BS 2000-219 & ISO 3015
DIN EN 23015
DIN ISO 3016

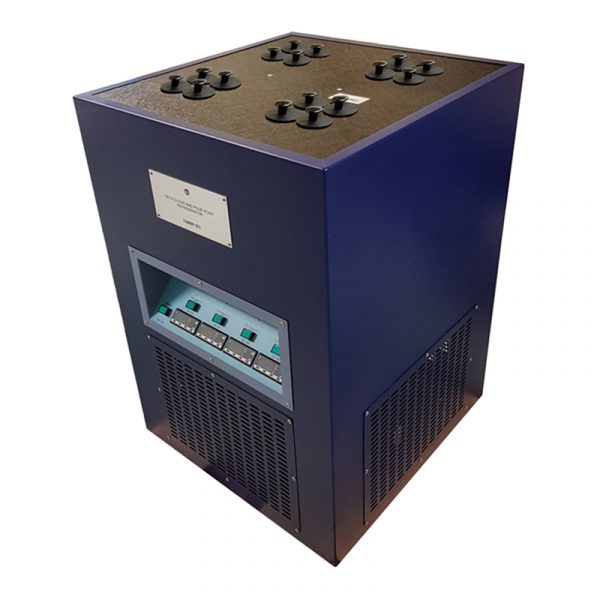

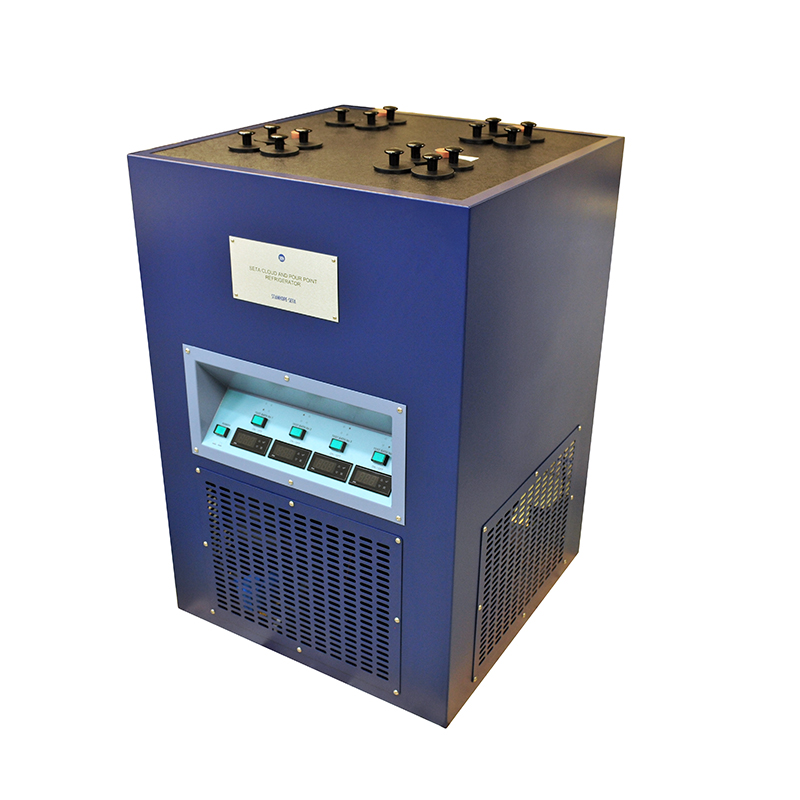

The Seta Cloud and Pour Point Cryostat has four 2 litre compartments which are independently temperature controlled and can accommodate four Air Wells. Three compartments have a temperature range of ambient to -34 °C and one has a low temperature compartment -34 to -51 °C. The lid is electrically heated to prevent the formation of ice and condensation. Refrigeration is accomplished by a two stage CFC free system.
Seta Cloud and Pour Point Cryostat - 93531-8
Features
- Four individually temperature controlled compartments
- Four air wells in each compartment
- CFC free refrigeration system
- Heated anti-condensation lid
- Non flammable refrigerants, compliant with F-Gas Regulation
Additional Information

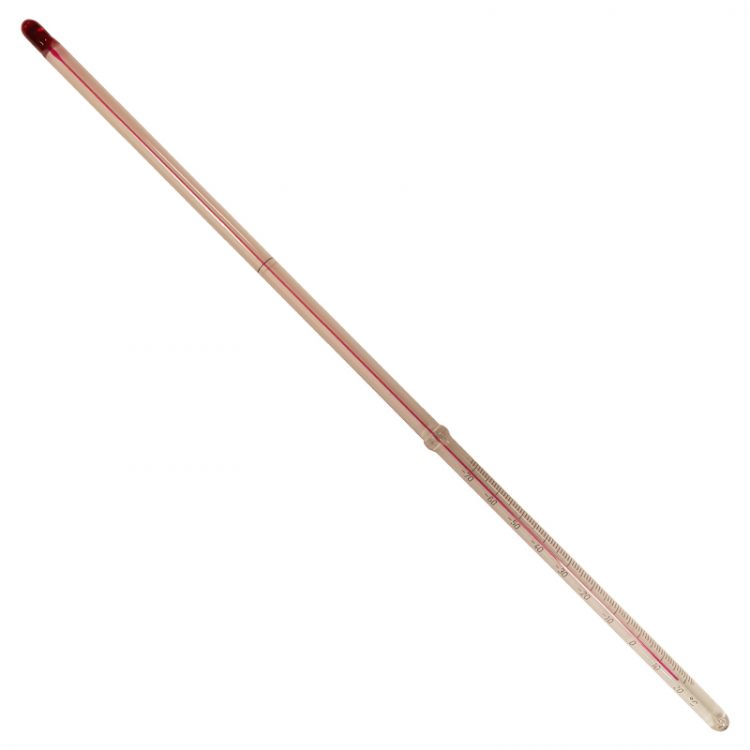

Supplied with; 16 test jars (each comprising graduated glassware, thermometer cork, insulating gasket and disc), a compartment thermometer and instruction manual.
Note: Due to the low operating temperature of this bath, it is recommended that the compartments are filled with Butyl Glycol.
| Compartment quantity | 3 + 1 low temperature |
|---|---|
| Compartment volume | 2 litre |
| Total test positions | 16 |
| Temperature range | Ambient to -34 °C (x3) -34 °C to -51 °C (x1) |
| Ambient temperature range | 15 °C to 32 °C |
| Cool down Time (single compartment) | Approx 2 hours 30 minutes at an ambient of 23 °C (to -51 °C) |
| Refrigerant | CFC free, first stage R134a, second stage R452a |
| Voltage | 110/120 V, 60 Hz 220/240 V, 50 Hz |
| Power | 1.8 kW |
| Size (HxWxD) | 95 x 63 x 63 cm |
| Weight | 115 kg |
| CCCN Code | Tariff 90262020 |
Industries
Methods
ASTM D97
ASTM D2500
ASTM D5853
IP 15
IP 219
IP 441
BS 2000-15 & ISO 3016
BS EN 23015 & BS 2000-219 & ISO 3015
DIN EN 23015
DIN ISO 3016
| ASTM D5853 | Standard test method for pour point of crude oils |
|---|---|
| IP 219 | Determination of cloud point |
| ASTM D97 | Standard test method for pour point of petroleum products. |
| ASTM D2500 | Standard test method for cloud point of petroleum products and liquid fuels |
| IP 15 | Petroleum products, determination of pour point. |
| IP 441 | Determination of the pour point of crude petroleum. |
| BS 2000-15 & ISO 3016 | Methods of test for petroleum and its products. Determination of pour point |
| BS EN 23015 & BS 2000-219 & ISO 3015 | Petroleum products. Determination of cloud point. |
| DIN EN 23015 | Petroleum products, determination of cloud point. |
| DIN ISO 3016 | Petroleum oils, determination of pour point. |
