AvCount Sample Delivery Unit - SA1950-0

Methods
ASTM D975
ASTM D7619
IP 565
DEF STAN 91-091
DEF STAN 91-86
ISO 4406

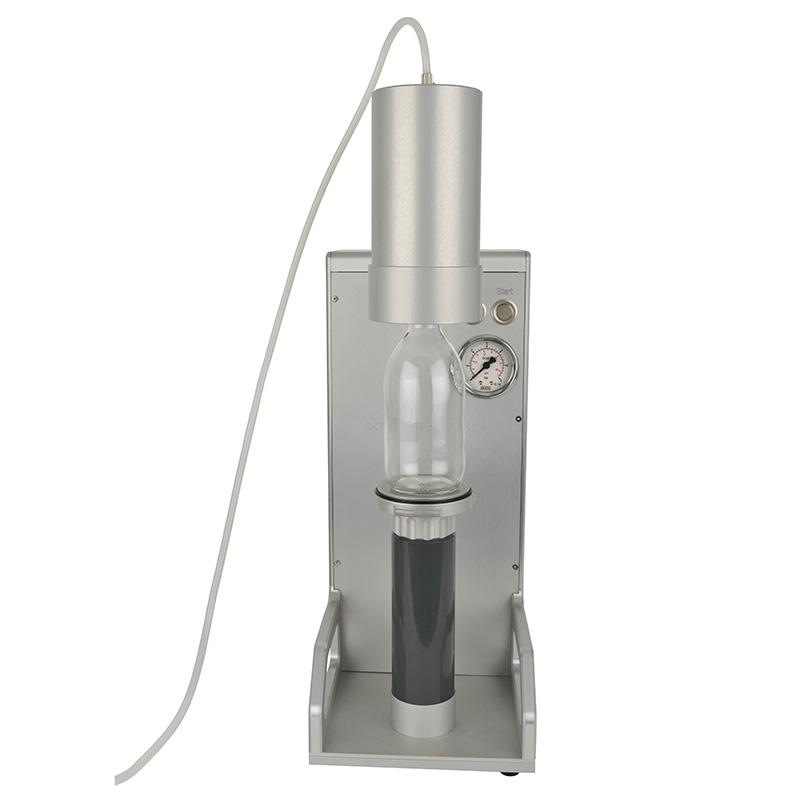

A compact system with single push button operation, used to feed viscous samples into AvCount2 (SA1000-2) and AvCount Lite (SA1800-0). Suitable for use when viscosities exceed 68 mm2/s and up to 200 mm2/s.

Comprises a compressor and a sample pressurisation chamber. A sample bottle is placed on the sample platform and the platform is raised into the pressurisation chamber where it is pressurised to 3 bar by an integral compressor. The sample passes to the particle counter under pressure via the sample delivery tube. The delivery tube contains a non return valve to prevent sample leakage when the sample delivery system is disconnected from the particle counter.

Safety devices include a pressure relief valve to protect against over pressure and a mechanical interlock prevents an operator from opening the pressurisation chamber when it is pressurised.

AvCount Sample Delivery Unit - SA1950-0

Additional Information

Supplied with power adaptors for UK, USA, and EU.

Maximum Sample Viscosity200 mm2/s
Pressure3 bar
Max Bottle Size145 mm x 60 mm diameter
VoltagePressure delivery unit: 24 Vdc, 2A (mains adaptor supplied 100 to 240 Vac, 50/60 Hz, 1A)
Size (HxWxD)50 x 17 x 28 cm
Weight8 kg
CCCN CodeTariff 90318020

Methods

ASTM D975
ASTM D7619
IP 565
DEF STAN 91-091
DEF STAN 91-86
ISO 4406
DEF STAN 91-091 Aviaton Fuel Specification
ASTM D975 Standard Specification for Diesel Fuel Oils , biodiesel, biodiesel blend, diesel, fuel oil, petroleum and petroleum products
IP 565 Determination of the level of cleanliness of aviation turbine fuels – portable automatic particle counter method
ASTM D7619 Method for counting and sizing particles in light and middle distillate fuels, and liquid bio fuels, by automatic particle counter
DEF STAN 91-86 Turbine Fuel, Aviation Kerosine Type: High Flash Type
ISO 4406 Hydraulic fluid power - Fluids - Method for coding the level of contamination by solid particles
