Product

Reciprocating Stirrer - 24680-2

Methods
IP 16

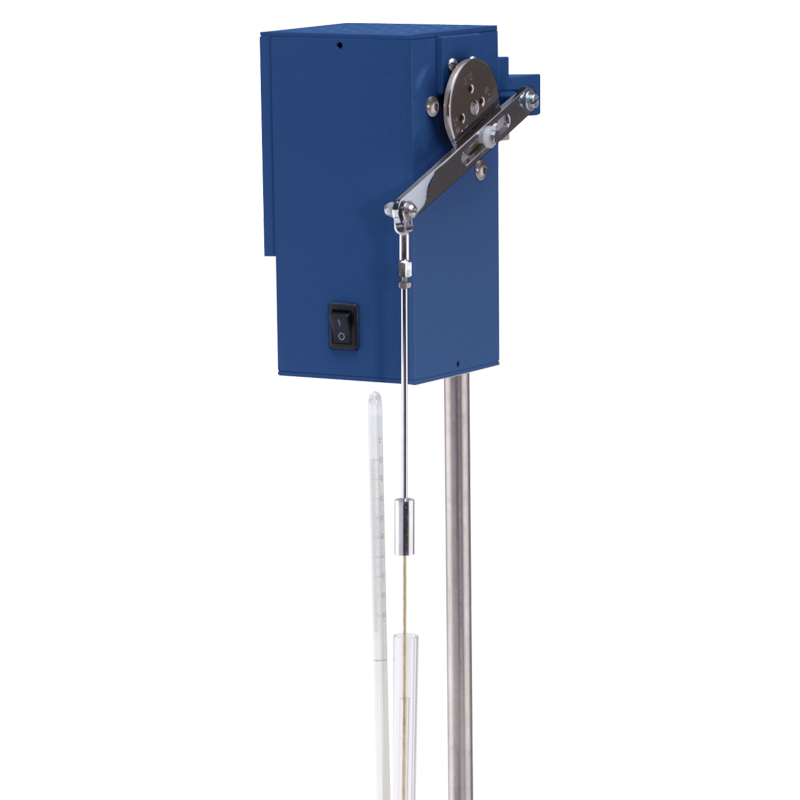

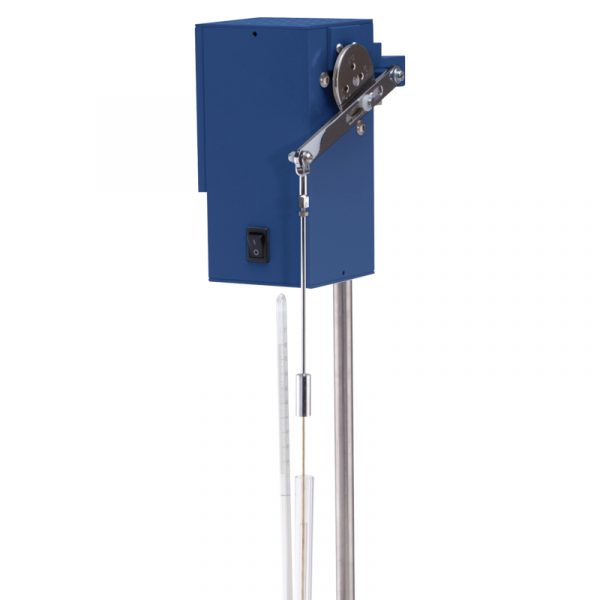

The Seta Reciprocating Stirrer consists of an electric motor, gearbox, crank-arm, mounting block and an on/off switch.

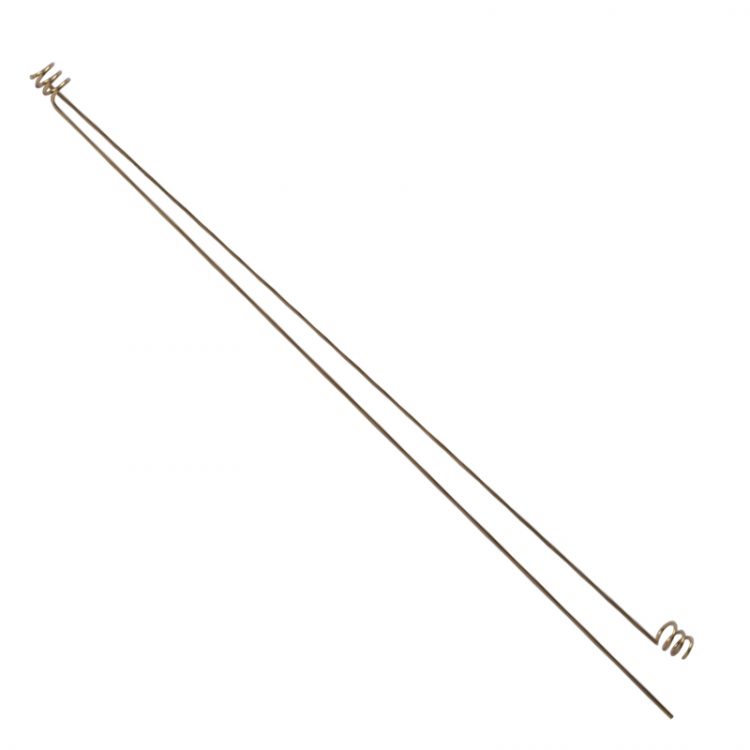

The Stirrer provides a reciprocating motion to a stirring rod at approximately 65 complete (up and down) strokes a minute with a stroke length of approximately 7 cm. The diameter of stirrer that will fit into the coupling is 1.5 mm.

Reciprocating Stirrer - 24680-2

Information

Details

The Stirrer can be mounted on a mast (24500-0) or laboratory scaffold rod of 12 mm (0.5 inch) diameter. It is secured in position with a clamp on the rear of the unit. The unit can be mounted with the on/off switch at the top or bottom, depending upon the clearance available from the glassware being stirred.

Details

IP 16 Determination of the freezing point of aviation fuels — Manual method

Details

Voltage110/120 V, 60 Hz
220/240 V, 50 Hz
200/240 V, 60 Hz
Power500 W
Size (HxWxD)195 x 130 x 130 mm
Speed65 strokes/minute
Weight4 kg
CCCN CodeTariff 90278017
