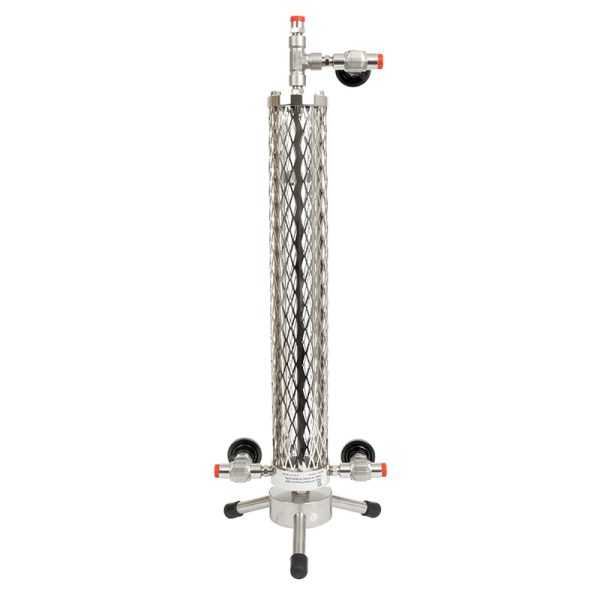

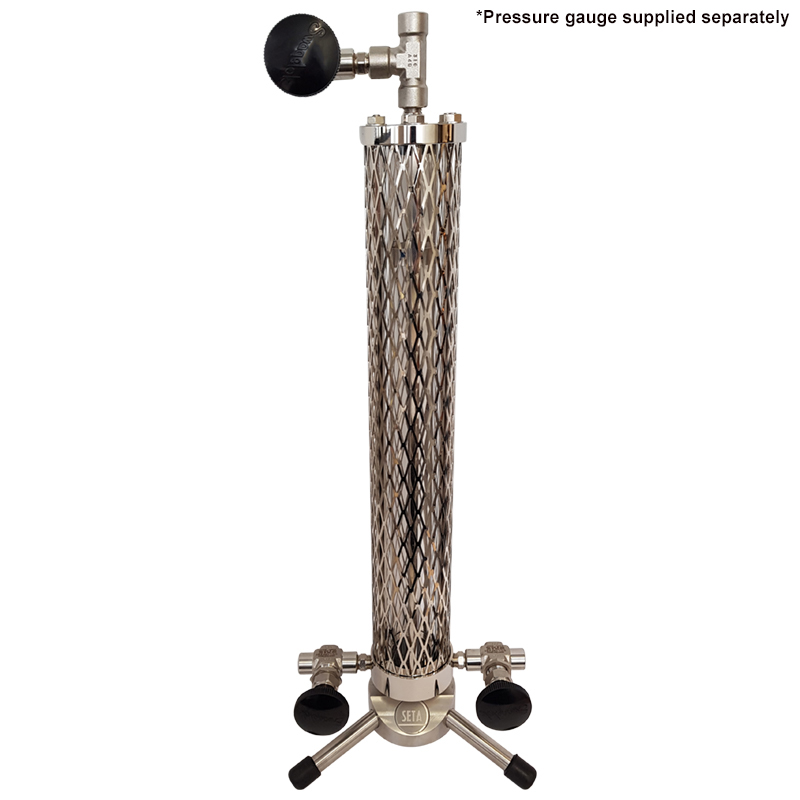

Seta Pressure Hydrometer Apparatus - 22100-0
Pressure hydrometer apparatus for determining the density or specific gravity of light hydrocarbons including LP gases.
Features
- 1400 kPa (200 psi) max working pressure
- Temp range -20 to 60 °C
- Transparent cylinder with steel safety mesh
Information
Details
Comprises a polymethylmethacrylate pressure cylinder surrounded by a stainless steel mesh for maximum safety. A vapour vent-valve with tee-piece for a pressure gauge is mounted on the top. A buffer pad is incorporated for the hydrometer and a mounting clip for a thermometer. Inlet and outlet valves are mounted in the base and the instrument is connected to the LPG line via 1/4 BSP connections. A range of hydrometers and thermometers are available as accessories.
Supplied with: instruction sheet.
Certification: Works pressure test certificate available on request.
Details
ASTM D1657 | Density and Relative Density of Light Hydrocarbons by Pressure Hydrometer |
---|---|
IP 235 | Determination of density of light hydrocarbons - Pressure hydrometer method |
BS EN ISO 3993 | Liquefied petroleum gas and light hydrocarbons. Determination of density or relative density. Pressure hydrometer method |
Details
Maximum Working Pressure | 1400 kPa (200 psi) |
---|---|
Temperature Range | -20 to 60 °C |
Size (HxWxD) | 630 x 220 x 220 mm |
Weight | 4.2 kg |
CCCN Code | Tariff 90279080 |
