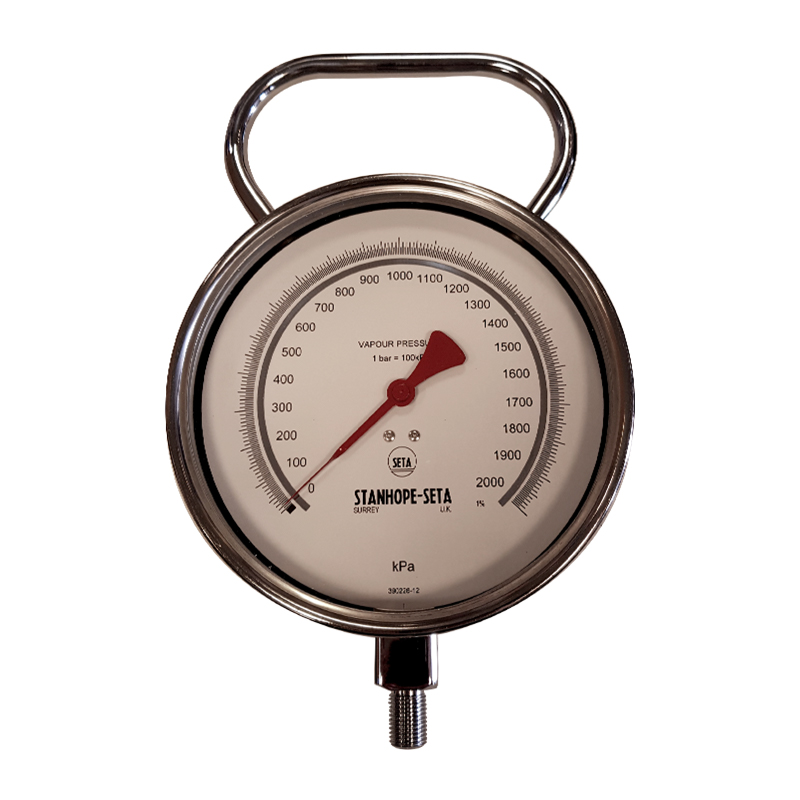

Vapour Pressure Gauge 0 to 2000 kPa - 22580-2

Methods
IP 410

Bourdon-Tube type pressure gauge with 150 mm diameter mirror band dials to eliminate paralax errors while reading. The graduations are marked in kPa and psi (lbf/in2).

The gauge has a bottom entry 1/4 inch BSP fitting and a heavy duty stainless steel case with a large carrying handle suitable for lifting a complete pressure vessel assembly from a bath.

The gauge conforms to EN837 S2 (up to 2,500kPa), Accuracy Class 1 ±1% fsd.

Vapour Pressure Gauge 0 to 2000 kPa - 22580-2

Features

  • Pressure range 0 to 2000 kPa
  • Accuracy ±1% fsd
  • 150mm dial
  • Mirror scale in kPa and psi
  • 1/4 inch BSP fitting
  • Sturdy handle

Additional Information

CCCN CodeTariff 90262080

Methods

IP 410
IP 410 Liquefied petroleum gases - Determination of gauge vapour pressure - LPG method (ISO 4256:1996)
