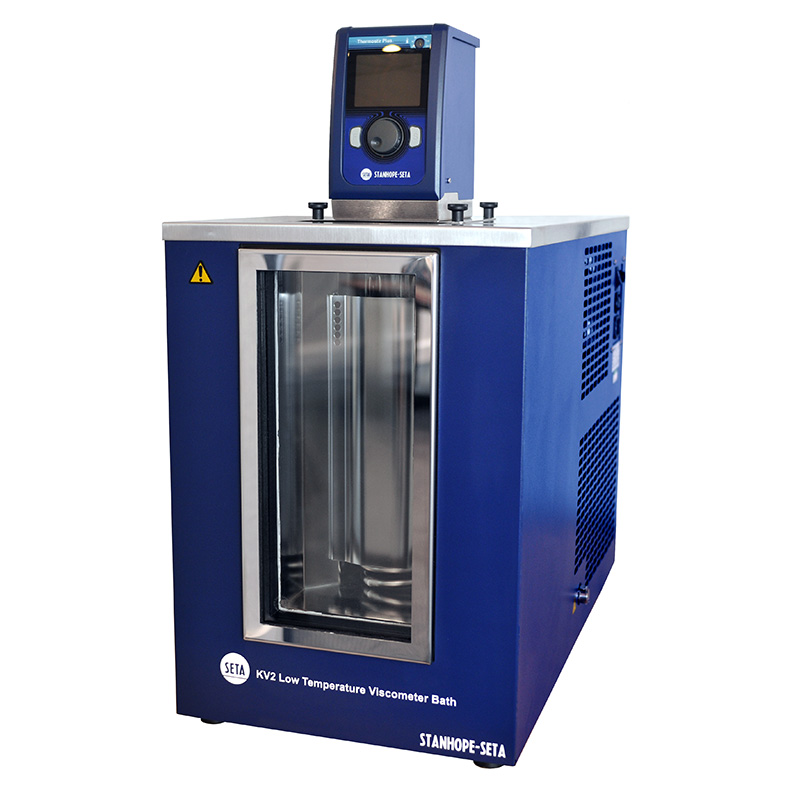

KV-2 Low Temperature Viscometer Bath - 94710-4
The Seta KV-2 is a two place low temperature viscosity bath designed to achieve ultra-high stability in the temperature range of +20 °C to -40 °C. The bath offers high stability of and ±0.01 at -20°C. Temperature is measured by a PT100 probe, a twin display shows the current and set temperature.
The instrument has a small footprint and is ideally suited for busy labs. It is fully self contained and requires no external chillers or connections. A heated top plate and viewing window prevent condensation and ice formation. The easy to use controller features large 13 mm digits and high intensity, long life ultra-bright LED lighting ensures clear bath visibility at all times.
Features
- Temperature range -40°C to +20°C
- High stability ±0.01 at -20°C
- Accommodates up to 2 standard viscometer tubes
- Illuminated Bath
- Insulated and heated viewing window
- Heated top plate
Information
Details
The KV2 bath requires 2 Ubbelodhe Viscometer tubes. The maximum viscosity of jet fuel at -20 °C is 8 mm2/s so we recommend that one each of the following viscometers are used:
• Calibrated Ubbelodhe Viscometer size code 0B which has a viscosity range of 1 to 5 mm2/s. Seta Ref 11643/03
• Calibrated Ubbelodhe Viscometer size code 1 which has a viscosity range of 2 to 10 mm2/s. Seta Ref 11643/04
The bath has an independent over-temperature and low fluid level cut-out and a warning alarm for safety in the laboratory environment.
Data logging via the external RS-232 port is possible when connected to a PC and suitable software.
The insulated bath is sealed by 8 mm thick glass front and rear with 60 mm plexiglass providing additional insulation.
Supplied with:
2 covers for test wells
Mains lead
Instruction manual
Excludes:
Viscometer Tubes
Details
BS 188 | Methods for determination of the viscosity of liquids |
---|---|
ASTM D446 | Standard specifications and operating instructions for glass capillary kinematic viscometers |
IP 71 | Determination of kinematic viscosity |
ASTM D445 | Method for Kinematic Viscosity of Transparent and Opaque Liquids |
BS 2000-71-2 & ISO 3105 | Methods of test for petroleum and its products. Kinematic viscosity. Specifications and operating instructions for glass capillary kinematic viscometers. |
BS EN ISO 3104 & BS 2000-71.1 & ISO 3104 | Methods of test for petroleum and its products. Petroleum products. Transparent and opaque liquids. Determination of kinematic viscosity and calculation of dynamic viscosity. |
Details
Temperature range | -40 to +20 °C |
---|---|
Temperature stability | ±0.01 at -20 °C |
Tube capacity | up to 2 |
Bath fluid | Methyl Alcohol or Denatured Ethyl Alcohol |
Bath capacity | 7 litres |
Refrigerant | R452a |
Voltage | 220/240 V 50/60 Hz |
Power | 2.7 kW |
Size (HxWxD) | 750 x 370 x 700 mm |
Weight | 56 kg |
CCCN Code | Tariff 90278990 |
Methods
Industries
Spares and accessories for KV-2 Low Temperature Viscometer Bath - 94710-4
![Calibrated Ubbelohde Viscometer Size Code 1 - 11643/04 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/11643_Viscometer-1-750x750.jpg)
Calibrated Ubbelohde Viscometer Size Code 1 - 11643/04
View accessory![Calibrated Ubbelohde Viscometer Size Code 0B - 11643/03 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/11643_Viscometer-1-750x750.jpg)

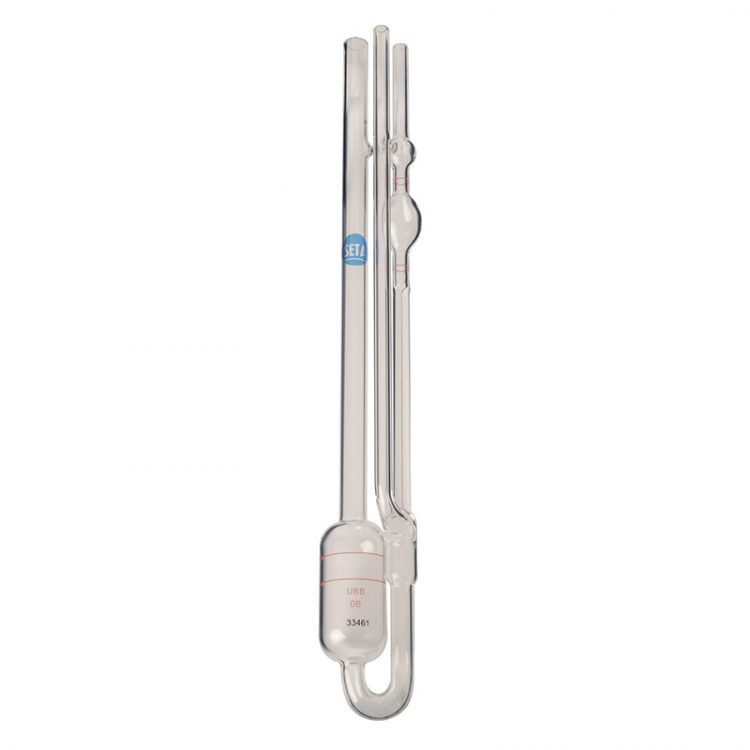

Calibrated Ubbelohde Viscometer Size Code 0B - 11643/03
View accessory![Universal Viscometer Holder - 23150-2 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/23150-2_Universal_Viscometer_Holder-750x750.jpg)
Universal Viscometer Holder - 23150-2
View accessory![Low Temperature Ubbelohde Viscometer Testing Kit - 94712-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/94712-0_Viscometer_Testing_Kit.jpg)

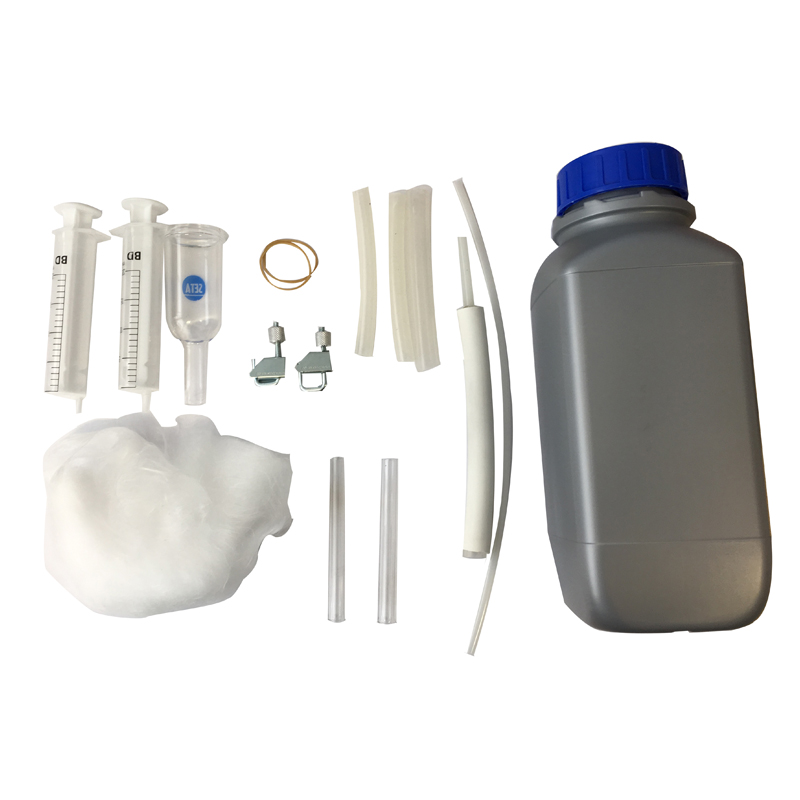

Low Temperature Ubbelohde Viscometer Testing Kit - 94712-0
View accessory![Thermometer similar to ASTM127C: Low Haz with Works Certificate - ASTMST127C product image](https://www.stanhope-seta.co.uk/wp-content/uploads/ASTMST127C_Thermometer-750x750.jpg)
Thermometer similar to ASTM127C: Low Haz with Works Certificate - ASTMST127C
