Grinding and Polishing Rig - 11275-4
Methods
ASTM D665
ASTM D3603
IP 135
DIN ISO 7120

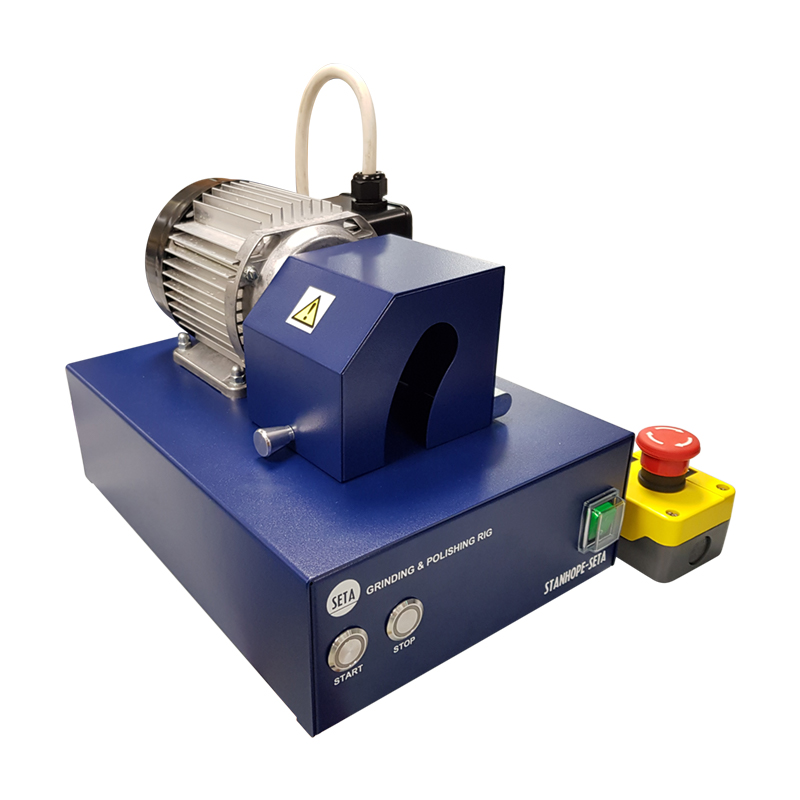

The rig is a compact bench-top instrument, used to prepare specimens in accordance with the test methods listed.
For use with the Seta Rust Prevention Test Bath (11200-8).
Grinding and Polishing Rig - 11275-4
Features
- Cover interlock safety switch
Additional Information
Specimens are mounted in a chuck, which is enclosed in a safety cover. A motor rotates the specimen between 1700 to 1800 rpm for polishing in accordance with the test procedure.
Supplied with an emergency stop.
| Voltage | 110-115 Vac, 50/60 Hz 220-240 Vac, 50/60 Hz |
|---|---|
| Size (HxWxD) | 27 cm × 33 cm × 24 cm |
| Weight | 10.2 kg |
| Speed | 1700 to 1800 rpm |
| CCCN Code | Tariff 90319000 |
Methods
ASTM D665
ASTM D3603
IP 135
DIN ISO 7120
| ASTM D665 | Standard test method for rust-preventing characteristics of inhibited mineral oil in the presence of water |
|---|---|
| ASTM D3603 | Standard test method for rust-preventing characteristics of steam turbine oil in the presence of water (horizontal disk method) |
| IP 135 | Determination of rust-preventing characteristics of steam-turbine oil in the presence of water |
| DIN ISO 7120 | Petroleum products and lubricants - Petroleum oils and other fluids - Determination of rust-preventing characteristics in the presence of water |
