Data Printer - 81002-3

Methods
ASTM D56
ASTM D92
ASTM D93
ASTM D3934
ASTM D3941
ASTM D5191
ASTM D7236
ASTM D8174
ASTM E502
IP 36
IP 481
IP 491
IP 492
IP 534
IP 602
BS DIN EN ISO 2592
BS EN ISO 13736 & BS 2000-170
ISO 1516
ISO 1523
ISO 3679
ISO 3680 (Obs)
ISO 9038

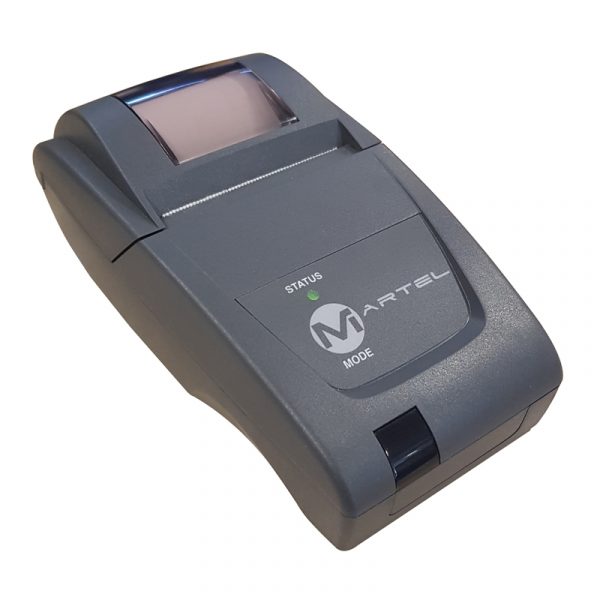

Lightweight, portable and ultra-compact thermal printer. For use with PM-93 Pensky-Martens Flash Point Tester (35000-0), Setavap 2 Vapour Pressure Tester (81000-2), Setaflash Series 8 Flash Point Tester range, Seta Multi Filtration Tester (91600-3) and the H2S Analyser (SA4000-3).

You can operate the data printer by a single ‘Mode’ button, to change the printer settings.

Compatible with existing systems, allowing for upgrades such as printing speed and functionality.

Data Printer - 81002-3

Features

  • Easy-Load paper feature
  • RS232 interface
  • High speed, high resolution printing capability
  • Quiet, non-impact system
  • Maintenance-free
  • Ultra-Compact and light weight
  • High reliability line head mechanism
  • Low power mode
  • Windows drivers

Additional Information

Includes; power supply and connecting cable.

Size (HxWxD)55 x 85.5 x 150 mm
Weight400 g including batteries and paper
Voltage100 – 240 Vac input 9 V output
CCCN CodeTariff 90269000

Methods

ASTM D56
ASTM D92
ASTM D93
ASTM D3934
ASTM D3941
ASTM D5191
ASTM D7236
ASTM D8174
ASTM E502
IP 36
IP 481
IP 491
IP 492
IP 534
IP 602
BS DIN EN ISO 2592
BS EN ISO 13736 & BS 2000-170
ISO 1516
ISO 1523
ISO 3679
ISO 3680 (Obs)
ISO 9038
ASTM D5191 Standard test method for vapor pressure of petroleum products (mini method)
ISO 3680 (Obs) Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method)
ASTM E502 Standard Test Method for Selection and Use of ASTM Standards for the Determination of Flash Point of Chemicals by Closed Cup Methods
ISO 3679 Determination of flash point. Rapid equilibrium closed cup method
ASTM D56 Standard test method for flash point by Tag closed cup tester
ASTM D3934 Flash/No Flash Test-Equilibrium Method by the Closed-Cup Apparatus
ASTM D3941 Flash Point by the Equilibrium method with Closed Cup apparatus
ISO 1516 Flash Test Using The Cup of Any Standard Closed Cup Apparatus
ISO 1523 Flash Test Using The Cup of Any Standard Closed Cup Apparatus
IP 481 Determination of air saturated vapour pressure (ASVP) of crude oil
IP 491 Determination of flash/no flash - Closed cup equilibrium method
IP 492 Determination of flash point - Closed cup equilibrium method
ASTM D92 Standard test method for flash and fire points by cleveland open cup
IP 36 Determination of flash and fire points - Cleveland open cup method (ISO 2592:2000)
BS DIN EN ISO 2592 Determination of flash and fire points - Cleveland open cup method
ASTM D93 Standard test methods for flash-point by Pensky-Martens closed cup tester
ASTM D7236 Flash Point by Small Scale Closed Cup Ramp Method
IP 534 Flash Point by Small Scale Closed Cup Ramp Method
ISO 9038 Determination of sustained combustibility of liquids
IP 602 Determination of sustained combustibility of liquids
BS EN ISO 13736 & BS 2000-170 Methods of test for petroleum and its products. Petroleum products. Determination of flash point. Abel closed cup method.
ASTM D8174 Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Small-Scale Closed Cup Tester
