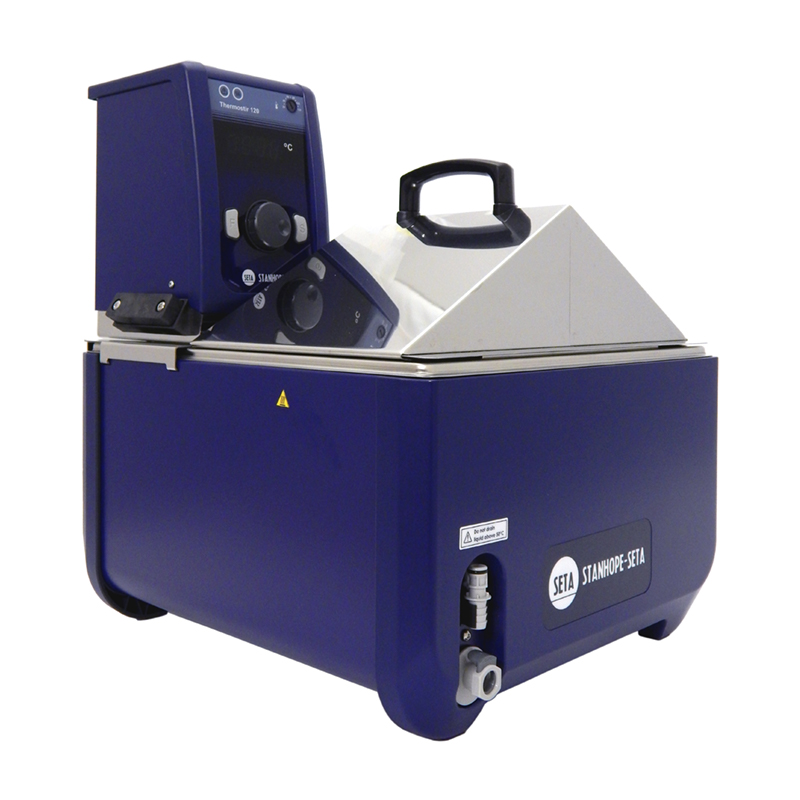

Circulating Water Bath - 15870-5
Methods
ASTM D3427
IP 313
BS 2000-313
ISO 9120
Stainless steel compact thermostatic bath with built-in stirrer and pump, which enables it be used as a circulator for external apparatus.
For use with the Air Release Value System (15840-0).
Circulating Water Bath - 15870-5
Features
- Temperature range ambient to 100 °C
- Over-temperature and low liquid level protection
- 12 litre bath
Additional Information
The bath temperature is digitally controlled to an accuracy of ±0.1 °C across a temperature range of ambient to 120 °C. The circulating pump has a maximum head of 310 mbar at zero flow, and a maximum flow of 17 litres / minute at zero head.
The stirrer paddle is mounted in the centre of the helical heating element, close to the pump inlet and temperature probe, ensuring an even heat distribution. The unit is equipped with over-temperature and low liquid level protection devices.
Supplied with;
Mains lead
Instruction manual
| Temperature Range | Ambient +5 °C to 120 °C |
|---|---|
| Temperature Uniformity at 70°C | 0.1 °C |
| Temperature Stability at 70°C | ± 0.05 °C |
| Volume | 12 litres |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Power | 1500 W (120 Vac) 1400 W (230 Vac) |
| Tank Size (HxWxD) | 215 x 141 x 332 mm |
| Thermostir size (HxWxD) | 333 x 141 x 172 mm |
| Weight | 10 kg (tank empty) |
| CCCN Code | Tariff 84198998 |
Methods
ASTM D3427
IP 313
BS 2000-313
ISO 9120
| ASTM D3427 | Standard test method for air release properties of petroleum oils |
|---|---|
| IP 313 | Determination of air release value of lubricating and hydraulic oils |
| BS 2000-313 | Determination of air release value of hydraulic, turbine and lubricating oils |
| ISO 9120 | Determination of air release value of hydraulic, turbine and lubricating oils |
