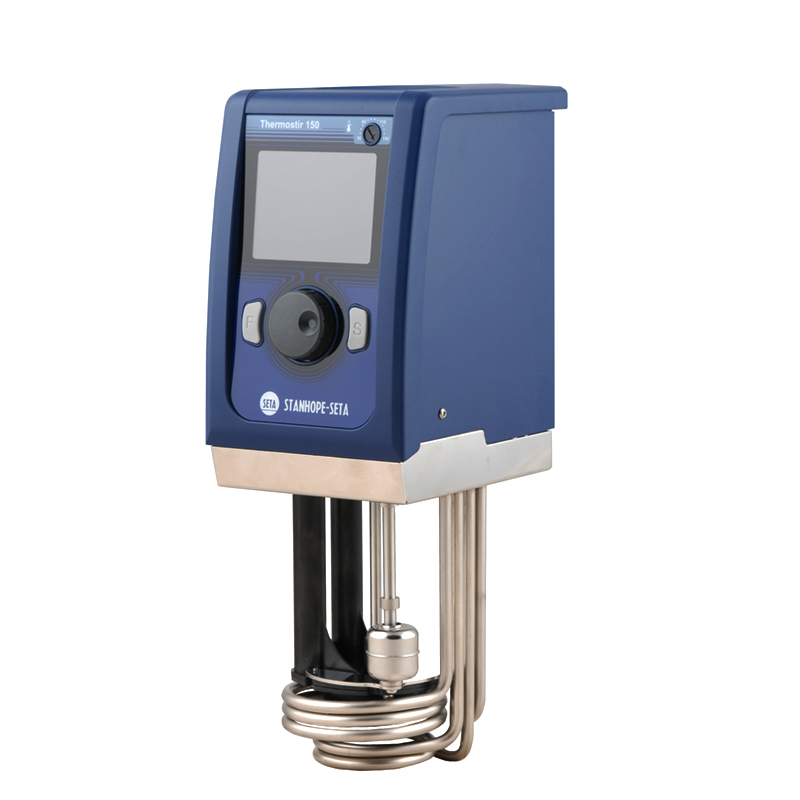

Thermostir - 15157-2
High-performance, programmable digital heating circulator with an exceptionally simple user interface. This allows fast set-up of multiple parameters through a powerful menu system and provides sophisticated control for temperature-controlled applications in the range of -50 to 150 ºC.
The unit includes a powerful heater for fast heat-up, a powerful integral pump for circulating temperature controlled fluid around external apparatus, and memory capacity for one program of 30 segments.
For use with the Silver and Copper Corrosion Bath (11400-7).
Thermostir - 15157-2
Features
- Full colour display
- Setpoint, plus three adjustable preset temperature values
- Timer function with audible alert and heater control
- Adjustable over-temperature cut-out
- Fault indication display
- Programmable relay
- Two-point user recalibration of internal and external probes
- Off-set adjustment for optimal isothermal performance
Additional Information
The Thermostir can be programmed via intuitive user interface or by connecting to a PC or laptop. The software features real-time status windows, a graphic display of the controller's performance as a program is run, and allows data to be logged for future recall and analysis.
Supplied with;
Mains lead
Instruction manual
| Temperature Range | Ambient to 150°C (up to -50°C with external cooling unit) |
|---|---|
| Display Resolution | 0.1 °C |
| Temperature Stability | ± 0.01 °C |
| Temperature uniformity | ± 0.05 °C |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Power | 2000 W (230 V) 1500 W (120 V) |
| Size (HxWxD) | 342 x 141 x 172 mm |
| Weight | 2.6 kg |
| CCCN Code | Tariff 84198998 |
