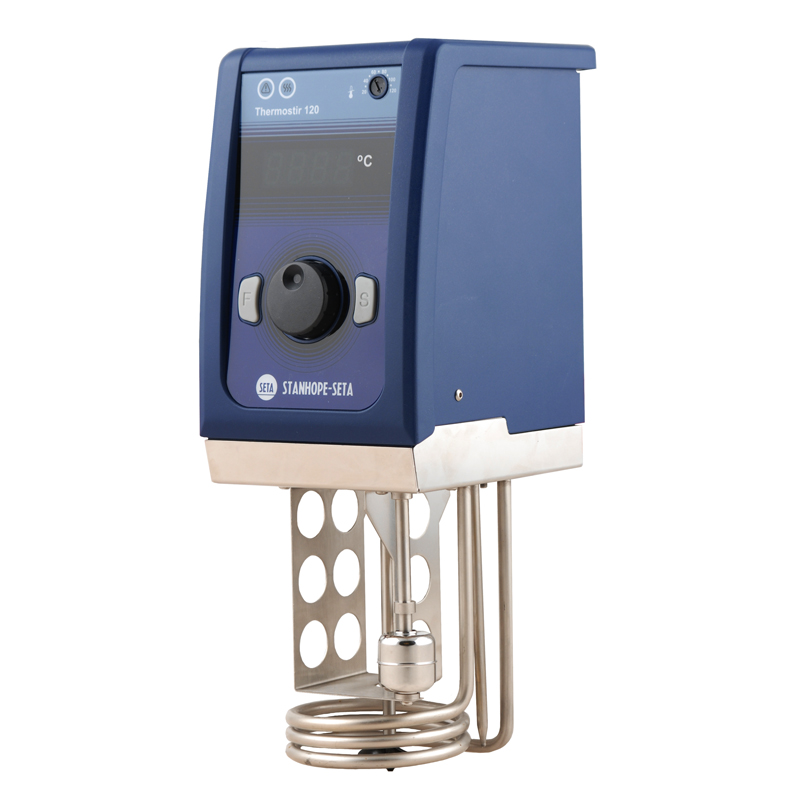

Thermostir - 15160-0

Methods
ASTM D892-IP 146
ISO 6247

A general purpose thermostir which converts most vessels into a thermostatic bath, and features an integral stirrer to maintain a uniform temperature in the bath.

For use with the SetaFoam Dual Twin Foam Test Baths (14020-8).

Thermostir - 15160-0

Additional Information

Temperature is digitally controlled to an accuracy of ±0.1 °C across a temperature range of ambient +5 to 100 °C. The stirrer paddle is mounted in the centre of the helical heating element to promote even temperature distribution.

The mounting clamp accommodates a maximum wall thickness of 20 mm. The unit is equipped with a low liquid level protection device.

Supplied with;
Mains lead
Instruction manual

Temperature RangeAmbient +5 to 100 °C
Display Resolution0.1 °C
Temperature Stability± 0.1 °C
Maximum circulation capacity50 Litres
Voltage110/120 V, 50/60 Hz 220/240 V, 50/60 Hz
Power1.5 KW
Size (HxWxD)30 x 10 x 17 cm
Weight2.5 kg
CCCN CodeTariff 84198998

Methods

ASTM D892-IP 146
ISO 6247
ASTM D892-IP 146 Standard test method for foaming characteristics of lubricating oils
ISO 6247 Determination of foaming characteristics of lubricating oils
