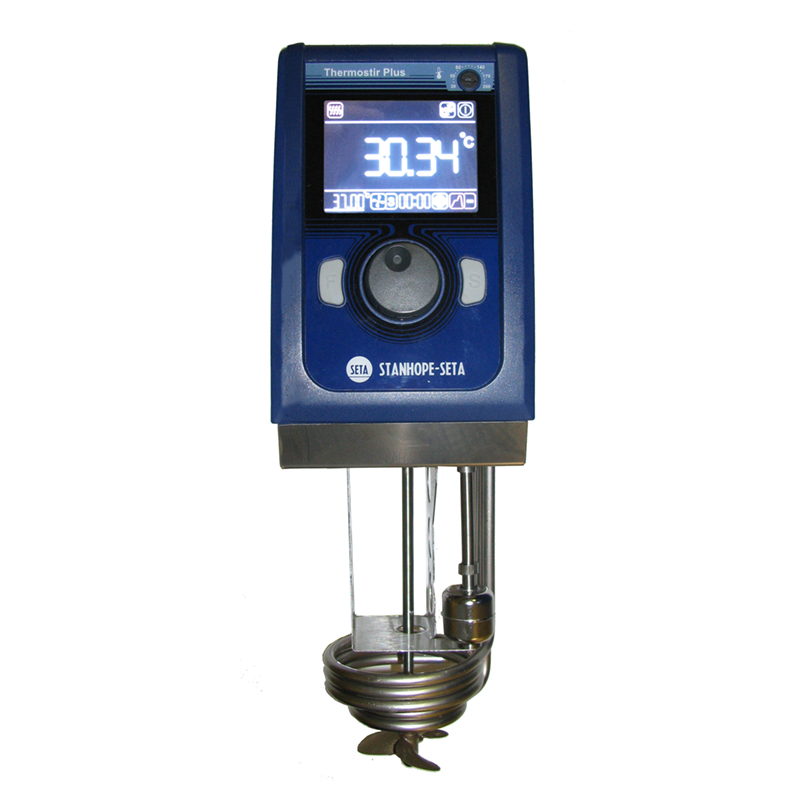

Thermostir - 15159-2
A high specification general purpose thermostir which converts most vessels into a thermostatic bath and features an integral stirrer to maintain a uniform temperature in the bath.
Temperature is digitally controlled to an accuracy of ±0.01 °C across a temperature range of ambient -50 to 200 °C. The stirrer paddle is mounted in the centre of the helical heating element to promote even temperature distribution.
The mounting clamp accommodates a maximum wall thickness of 35 mm for rectangular tanks or 30 mm for circular tanks.
The unit is equipped with a low liquid level protection device and adjustable over-temperature cut-out.
Thermostir - 15159-2
Features
- Full colour QVGA TFT screen
- Operating setpoint, plus three adjustable preset temperature values
- Timer function for reaction timing, with audible alert and heater control
- Alarms can be configured to switch a relay (high and low) - visual, audible and programmable
- Five point user recalibration
- USB interface
- Storage for 10 programs of up to 100 segments
- Choice of language: English, French, German, Spanish and Italian
Additional Information
| Temperature Range | -50 to 200 ºC (-50 with the aid of external cooling) |
|---|---|
| Display Resolution | 0.01 ºC |
| Temperature Stability | ± 0.01 ºC |
| Maximum Circulation Capacity | 50 Litres |
| Voltage | 220/240 V, 50/60 Hz |
| Power | 2000 W |
| Weight | 2.6 kg |
| Size (HxWxD) | >342 x 141 x 172 mm |
| CCCN Code | Tariff 84198998 |
