SetaCheck Biodiesel - SA5500-0

ASTM D8274

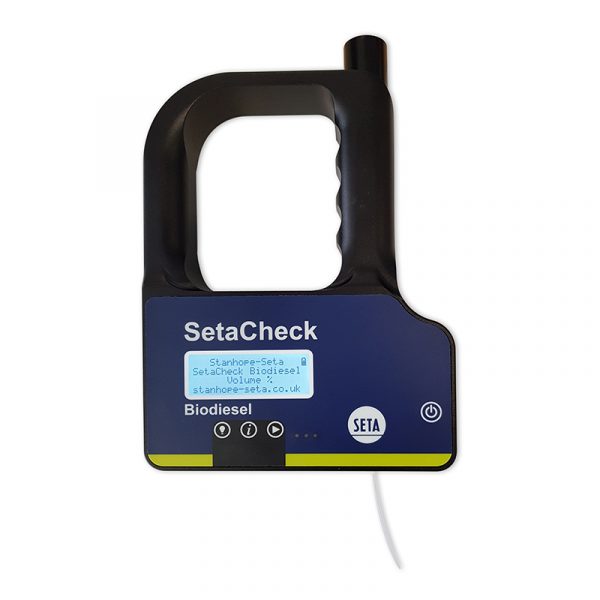

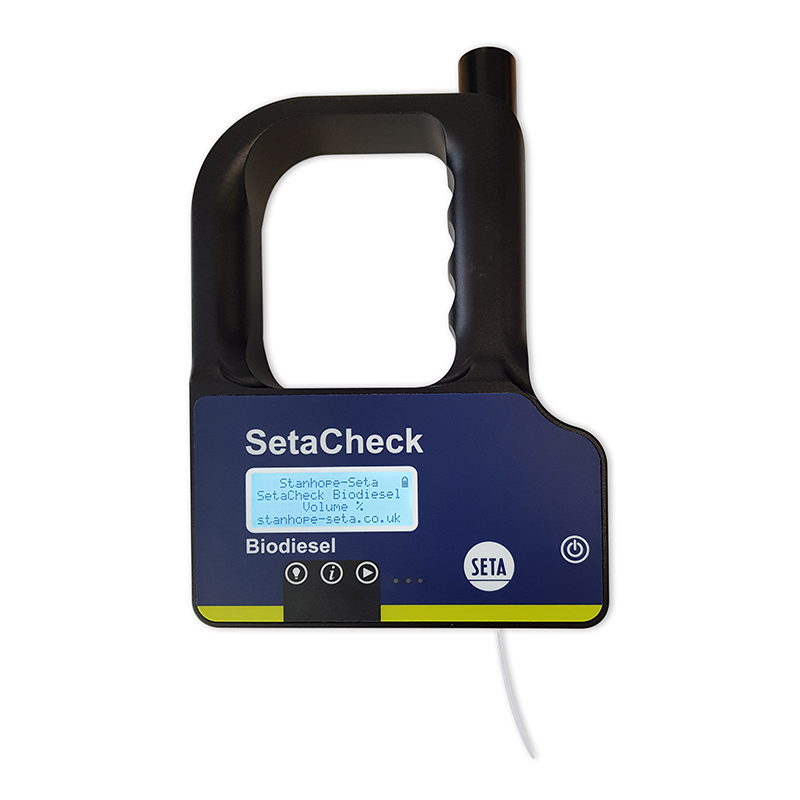

SetaCheck Biodiesel is a handheld instrument designed to provide fast, accurate and repeatable on-site measurement of biodiesel content in diesel fuel blends.

Using unique, Mid-IR technology, the analyser has a measurement range of 0.1% to 40% biodiesel. Only 2 ml of sample is required and a test is completed in less than 1 minute with results displayed on a bright backlit screen.

SetaCheck's test procedure is simple, requiring no special technical skills or laboratory conditions, making it ideal for batch checking fuels at terminals to monitoring standby fuel supplies.

Learn more about testing Biodiesel in Diesel >

SetaCheck Biodiesel - SA5500-0


  • 0.1% to 40% measurement range
  • Internal rechargeable battery
  • No dilution required, samples measured directly
  • Correlates with EN 14078

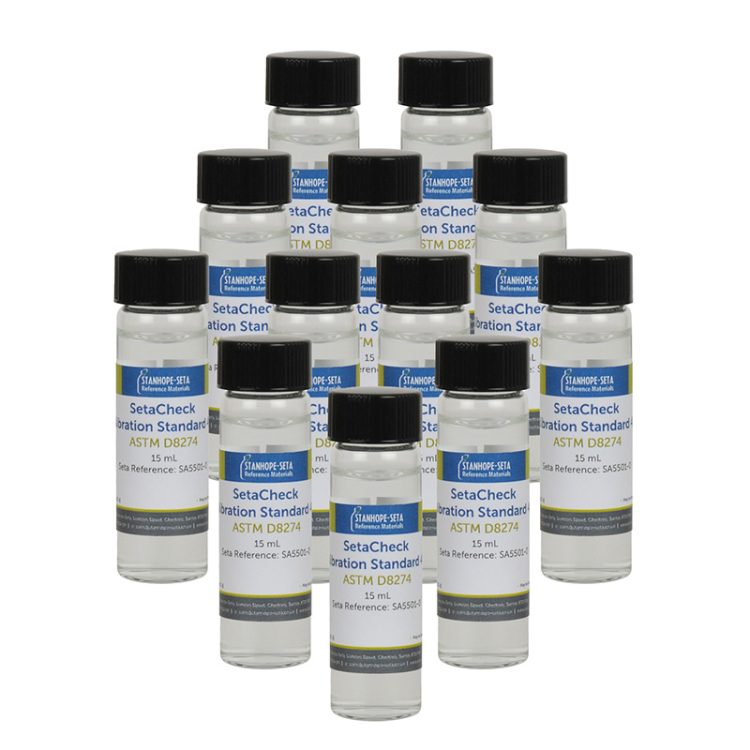

  • User calibration available via PC software

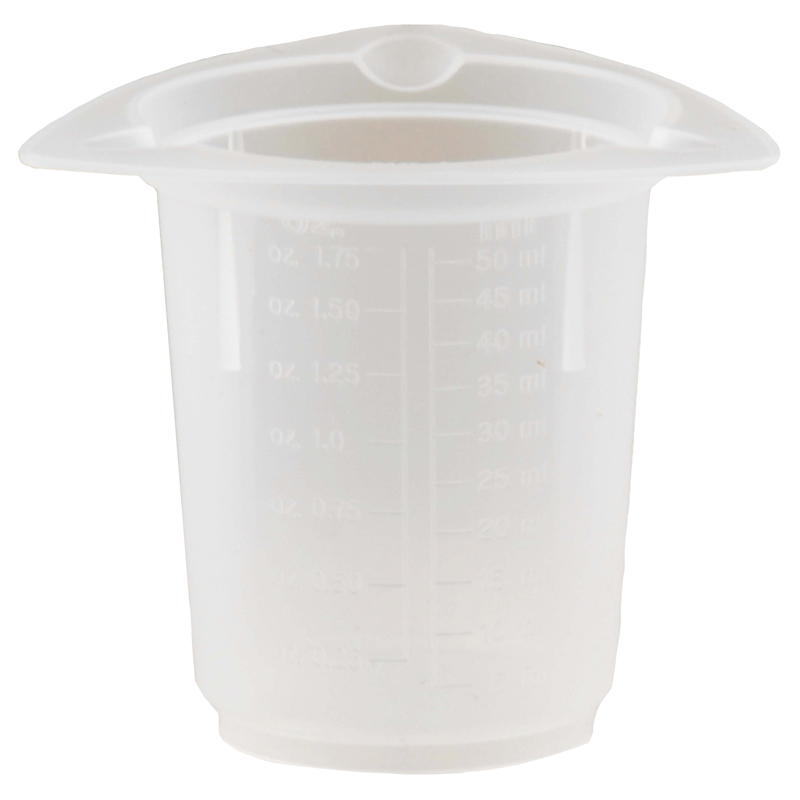

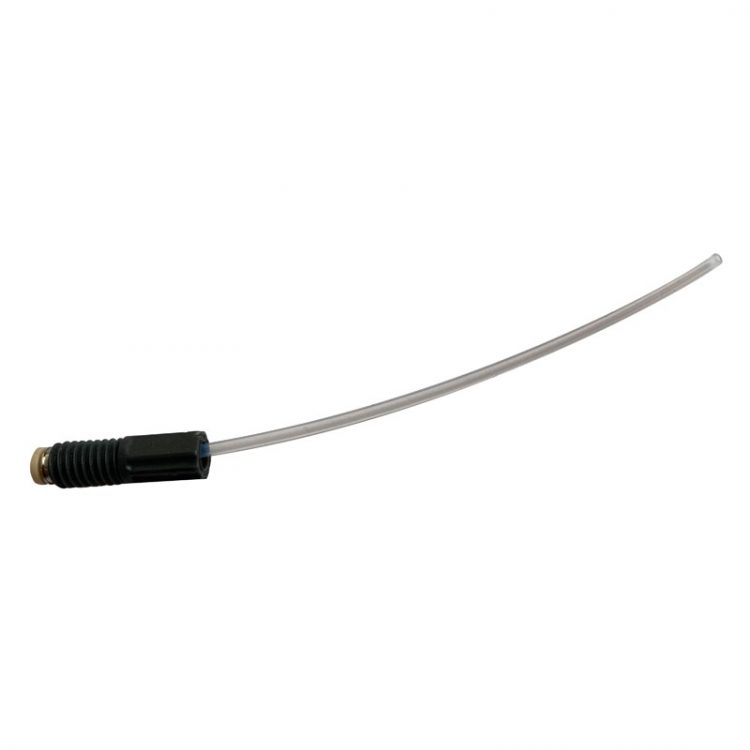

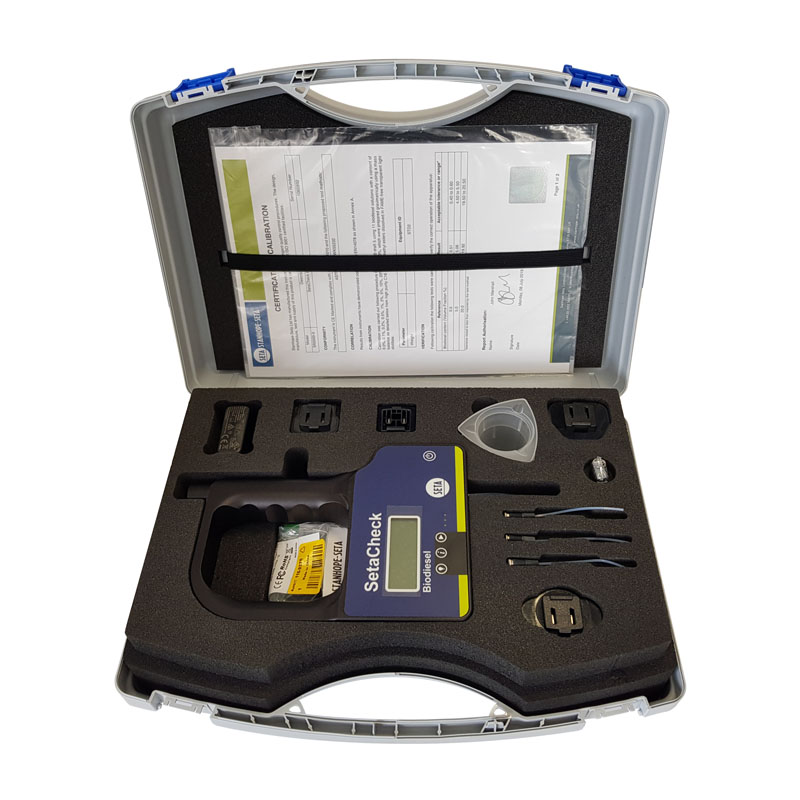

Supplied with: USB charging cable, 3 x tube assembly, 2 x sample beakers, disposable gloves, USB with manual and a quick start guide.


ASTM D8274 Standard Test Method for Determination of Biodiesel (Fatty Acid Methyl Esters) Content in Diesel Fuel Oil by Portable Rapid Mid-Infrared Analyzer


Range0.1% to 40%
Operating temperature5 - 40 °C
Test durationLess than 1 minute
Measuring units% by volume
Sample volumeApprox 2 ml
Number of testsIn excess of a hundred tests on a single charge
ChargingMicro USB
PowerRechargeable lithium ion battery
Size (HxWxD)3.6 cm x 15 cm x 20 cm
Weight1 kg
CCCN CodeTariff 90268020

Download product profile

To view our full range of products, download our latest Product Profile here.
