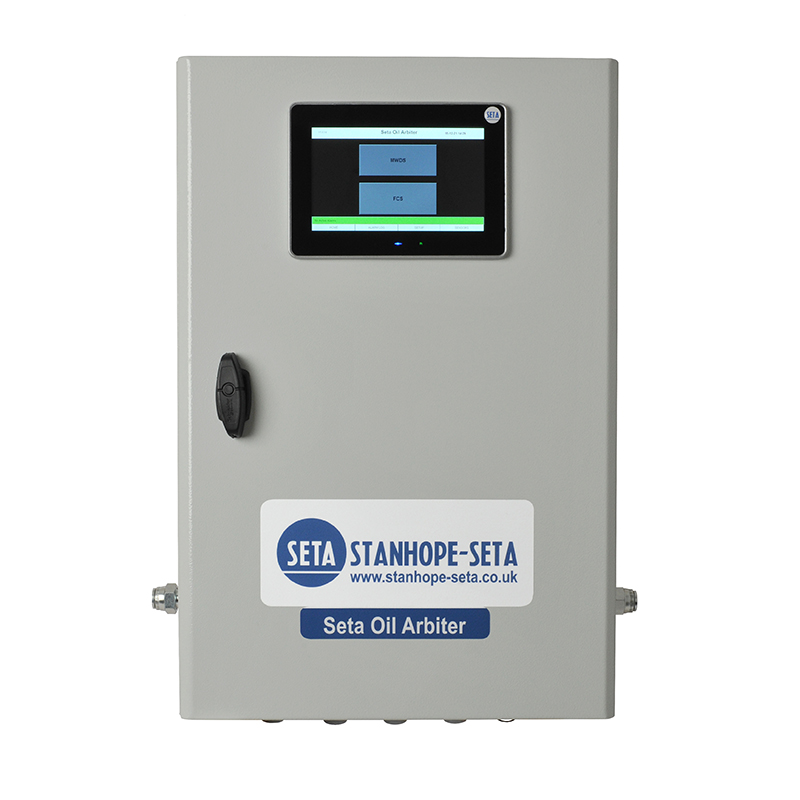

Seta Oil Arbiter - CM1000-0

The Seta Oil Arbiter is an online condition monitoring suite designed to monitor in real time a constant flow of lubricant, reporting the following parameters:

  • Metallic Wear Debris by size and metallic species (Machinery Condition)
  • AC Conductivity, Permittivity (Oil Condition)
  • Moisture Content (Dissolved water in oil, Contamination)
  • Oil Pressure (Lubrication System Health)
  • Oil Temperature (Lubrication System Health)

Seta Oil Arbiter - CM1000-0

Features

  • Monitor real time constant flow of lubricant
  • Precise measurements with minimal maintenance
  • Reduce overall operating cost of machinery
  • Reduce routine checks and failure related downtime

Information

Details

The Oil Arbiter is designed around the wear debris sensor and the fluid condition sensor, both units are robust in-line sensors designed specifically to operate into lubrication systems. Both sensors are factory calibrated devices with non-moving parts that possess high reliability and long term stability which eliminates the need for re-calibration.
The use of these sensors have a proven track record in reducing the overall operating cost of machinery as part of a proactive maintenance programme, with associated reductions of routine checks, lab testing and faliure related downtime.
The Oil Arbiter works by analysing in real time a constant flow of lubricant detecting through the parameters measured any variation in wear rates and oil condition, such changes are reported to a HMI (Human Machine Interface), logged into an on-board data storage and streamed in real time to a control system via ModBus over RS485.

Details

Fluid CompatibilityPetroleum and synthetic oils only. Do not use ester based oils, water/oil emulsions
Maximum Fluid Viscosity350 cSt @ 40°C (104°F)
Minimum to Maximum Fluid Flow1.2 to 9.0 litre/minute
Porocess Fluid Temperature0 to 90°C (32 to 194°F)
Ambient Operating Temperature0 to 55°C (32 to 131°F)
Communication ProtocolsCANOpen, ModBus over RS485
Digital InterfacesCANOpen @ 500kbs USB Ethernet ModBus over RS485 RTU
Outputs2 x dry contact, N.O. type voltage free (H-Alarm, HH-Alarm) ModBus over RS485 RTU
Fluid Port Connections2 x 1/2" BSPP cone fitting
Connection MethodDin rail mounted clamp cage terminals
Voltage110-240 Vac, 50/60 Hz, 3A (Max)
Size (HxWxD)600 x 400 x 200 mm
Weight16.5 kg
CCCN CodeTariff 90268020
