Reid Vapour Pressure Gauge 0 to 35 kPa - 22500-0
Methods
ASTM D323 Procedures A & C & D
IP 69 Procedures A & C & D
BS ISO 3007 & BS 2000-69

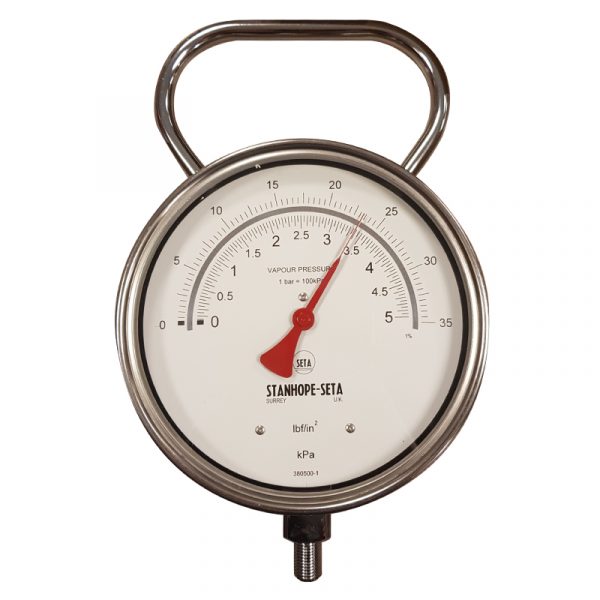

Bourdon-Tube type pressure gauge with 150 mm diameter mirror band dials to eliminate paralax errors while reading. The graduations are marked in kPa and psi (lbf/in2).
The gauge has a bottom entry 1/4 inch BSP fitting and a heavy duty stainless steel case with a large carrying handle suitable for lifting a complete pressure vessel assembly from a bath.
The gauge conforms to EN837 S2, Accuracy Class 1 ±1% fsd.
Reid Vapour Pressure Gauge 0 to 35 kPa - 22500-0
Features
- Pressures up to 700 kPa (100 psi)
- Accuracy ±1% fsd
- 150 mm dial
- Mirror scale in kPa and psi
- 1/4 inch BSP fitting
- Sturdy handle
Information
Details
| BS ISO 3007 & BS 2000-69 | Vapour Pressure of Petroleum Products (Reid Method) |
|---|---|
| ASTM D323 Procedures A & C & D | Standard test method for vapor pressure of petroleum products (Reid Method) |
| IP 69 Procedures A & C & D | Petroleum products - Determination of vapour pressure - Reid method |
Details
| CCCN Code | Tariff 90262080 |
|---|
Methods
ASTM D323 Procedures A & C & D
IP 69 Procedures A & C & D
BS ISO 3007 & BS 2000-69
