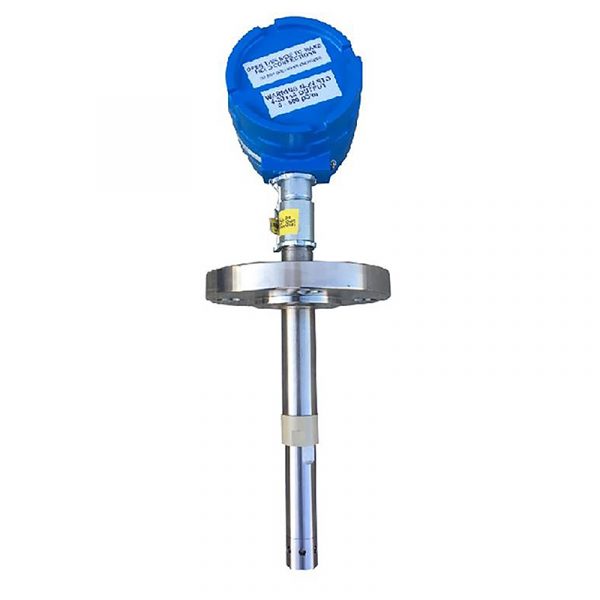

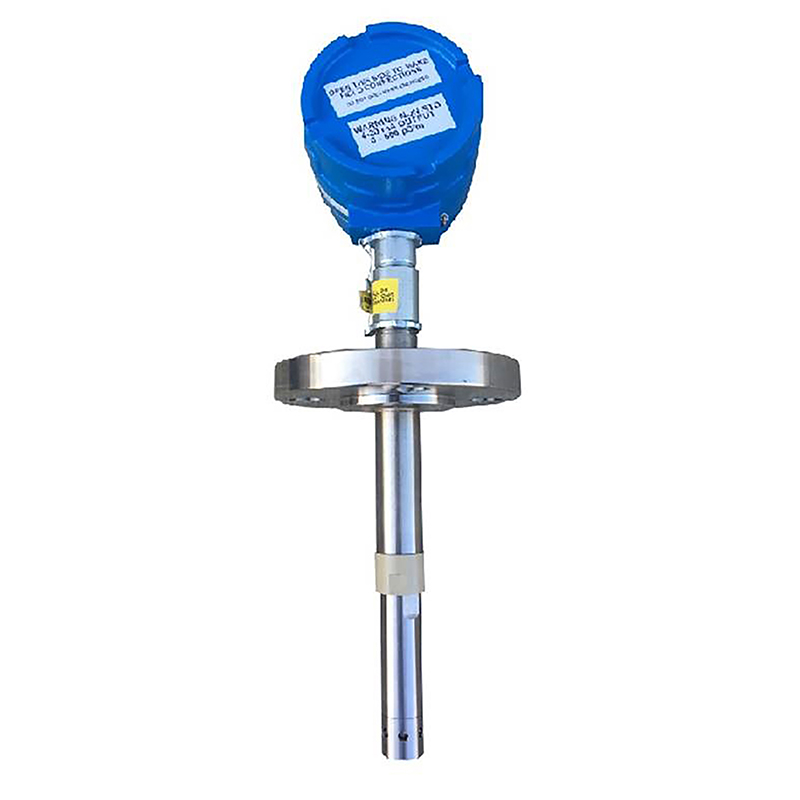

An inline sensor that provides real time measurment of conductivity in piplines using high accuracy AC measurement technology.

IECEx marking: Ex db ia IIC T4 Gb

The sensor can be connected to a refinery or pipeline DCS (Data Control System)/SCADA in order to provide an automatic and continuous record of product conductivity levels, eliminating the requirement for manual sampling and record keeping. When installed with an automatic dosing system the in-line sensor allows automated additive dosing to maintain the conductivity within specified limits.

The sensing technology was developed around two stainless steel coaxial electrodes and is suitable for long-term immersion in fuels.

This sensor is modelled specifically on the customer’s installation requirements; the flange adapter is an integral part of the assembly and it needs to be specified in advance. High pressure conductivity sensors are fixed mounted and are ‘not retractable’ at process pressure.

NOTE: Installation documents and schematics are available on request.

High Pressure In-line Conductivity Sensor IECEx Certified (D2 JF-1A-HP) - 99506-0

Features

  • In-line Conductivity and temperature measurement conforming to ASTM D2624
  • Conductivity range 0 to 2000 pS/m
  • Accuracy +/-2% of reading
  • Temperature range -40° to 85 °C +/-0.5°C
  • Standard 100 bar max line pressure
  • 4-20 mA output
  • Stainless Steel construction
  • IECEx Certified

Additional Information

Range0 to 2000 pS/m
Accuracy+/-2 pS/m (+/-2% of reading)
Pressure100 bar max pressure
Temperature range-40° to 85 °C, Accuracy +/-0.5 °C
Resolution0.1 pS/m
Sensor Type316 SS Coaxial Electrode
CalibrationInternal Source Zero and Scale
CertificationEx db ia IIC T4 Gb
IP RatingIP66

Methods

ASTM D2624
IP 274
ASTM D2624 Measurement of Electrical Conductivity of Distillate Fuels
IP 274 Measurement of Electrical Conductivity of Distillate Fuels
