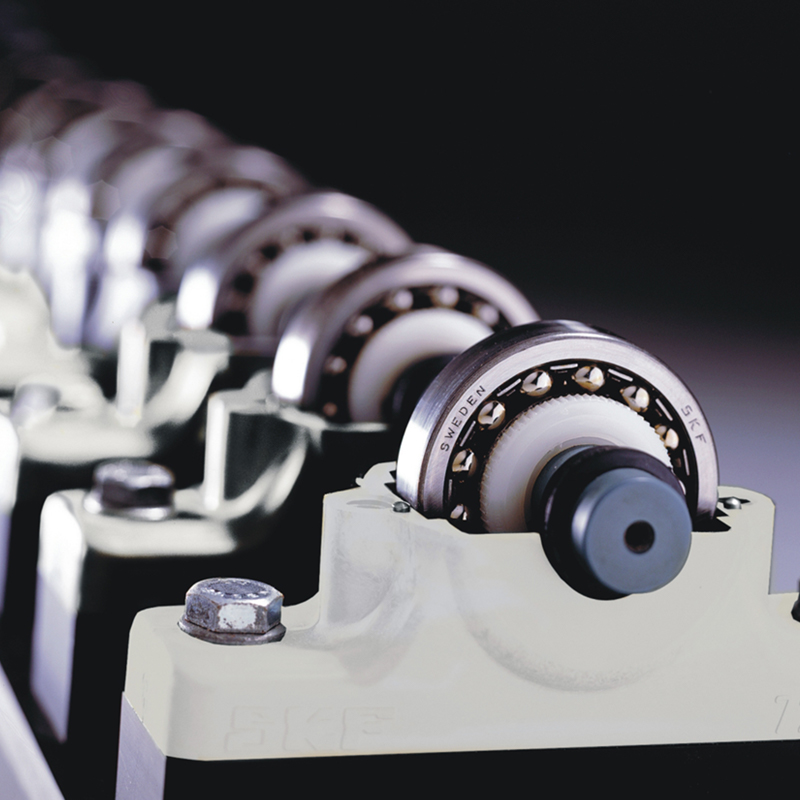

EMCOR Test Machine - 19300-0
The EMCOR grease test rig has been developed for testing lubricating greases on their corrosion inhabiting characteristics in rolling bearings. Tests can be carried out in the presence of either distilled or demineralised water, salt water or synthetic sea water, along with no applied load.
It can also be used to test the corrosion inhibiting characteristics of lubricating oils.
Features
- Eight test positions
- Digital control unit & timer
- Optional safety cover
- Optional washout pump and tubes
Additional Information
Water contamination can occur in cases where bearing housings are mounted outdoors, in machines regularly subject to water or steam - papermaking machines, food-processing
machines - or in under water applications.
Lubricating greases consist of various components which chemically may look alike. However, small changes or differences in composition, different suppliers or changes in the process of making greases may result in great performance differences of corrosion inhibiting.
Supplied with:
Eight polyamide housings
Test bearings
Instruction manual
Please note: new test bearings, EMCOR Test Bearings (19300-004), are required for each test.

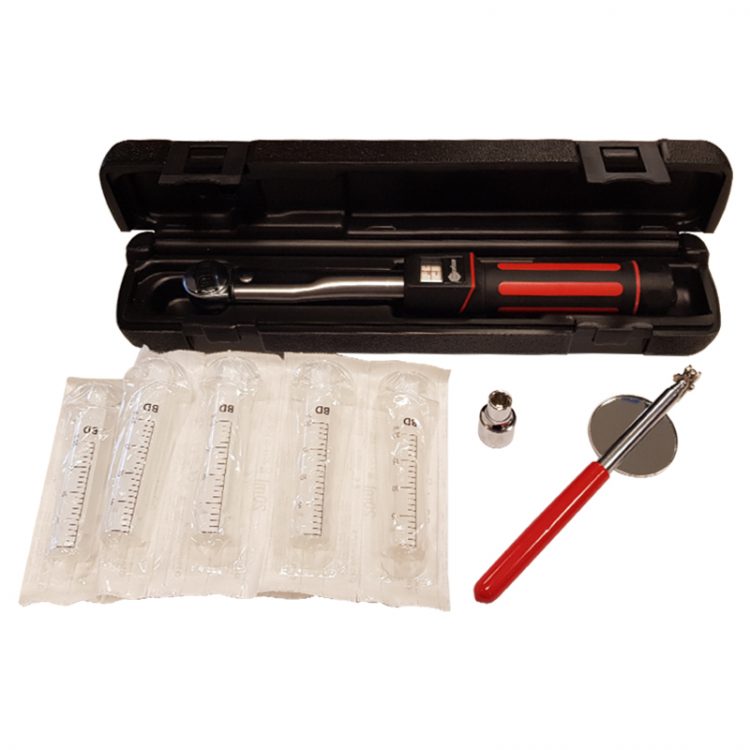

The EMCOR Starter Kit (19301-0) comprises 20 ml syringe, torque wrench, 9mm socket and mirror.
Test bearing | 8 pieces special treated 1306 K/236725 double row self-aligning ball bearings |
---|---|
Speed | 80 rpm ±5 |
Power | 230 V/50-60 Hz or 115 V/50-60 Hz |
Size (HxWxD) | 28 x 120 x 38 cm
* Height depends on type of electrical motor used |
CCCN Code | Tariff 90318080 |
Industries
Methods
ASTM D6138 | Determination of Corrosion-Preventive Properties of Lubricating Greases Under Dynamic Wet Conditions (Emcor Test) |
---|---|
IP 220 | determination of the rust-prevention characteristics of lubricating greases and oils in the presence of an aqueous test fluid. |
DIN 51802 | Evaluates the rust preventive properties of greases |
ISO 11007 | Measures the ability of a grease to protect a bearing against corrosion in the presence of water. |
